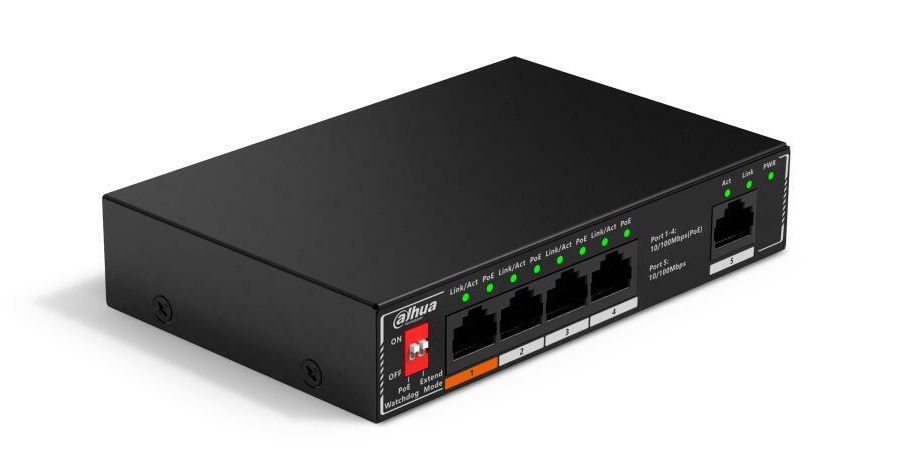

Switch Dahua DH-SF1005P 5 porturi, 4 porturi POE

Descriere

Specification
Hardware Feature
Ethernet Port Port 1-4: 4 × RJ-45 10/100Mbps(PoE)
Port 5: 1 × RJ-45 10/100Mbps(Uplink)
PoE Power Consumption
Port 1 ≤ 60 W (Hi-PoE)
port 2-4 ≤ 30 W
total ≤ 60 W
Power Consumption Idling: 0.8 W
Full load: 60 W
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
PoE
PoE Protocol IEEE802.3af/ IEEE802.3at/ Hi-PoE
Power Supply Pin 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance 250 m long distance PoE transmission
PoE Power Management Yes
PoE Watchdog Yes
Performance
Switching Capacity 1.8 Gbps
Packet Forwarding Rate 744 Kbps
Packet Buffer Memory 1 Mbit
Flow Control Enable by default
Working Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Application Humidity 5%– 95% (RH)
General
Power Input 48 V - 57 V DC
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
ESD Protection Air discharge: 8 kV
Contact discharge: 6 kV
Wall-mount Installation Yes
Anti-theft Lock Hole Yes
Weight 0.30 kg (0.64 lb)
Dimension 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
Dimensions (mm[inch])
Panels
130.0 [5.12]
26.0 [1.02] 84.8 [3.34]
90.6 [3.57]
Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90 W
100 71.3 100
150 62 10
200 51 10
250 40 10
Hi-PoE 60 W
100 53 100
150 50 10
200 47 10
250 37 10
IEEE802.3at 30 W
100 25.5 100
150 25.5 10
200 25.5 10
250 25.5 10
