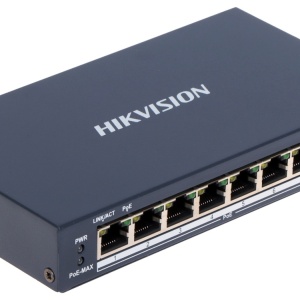

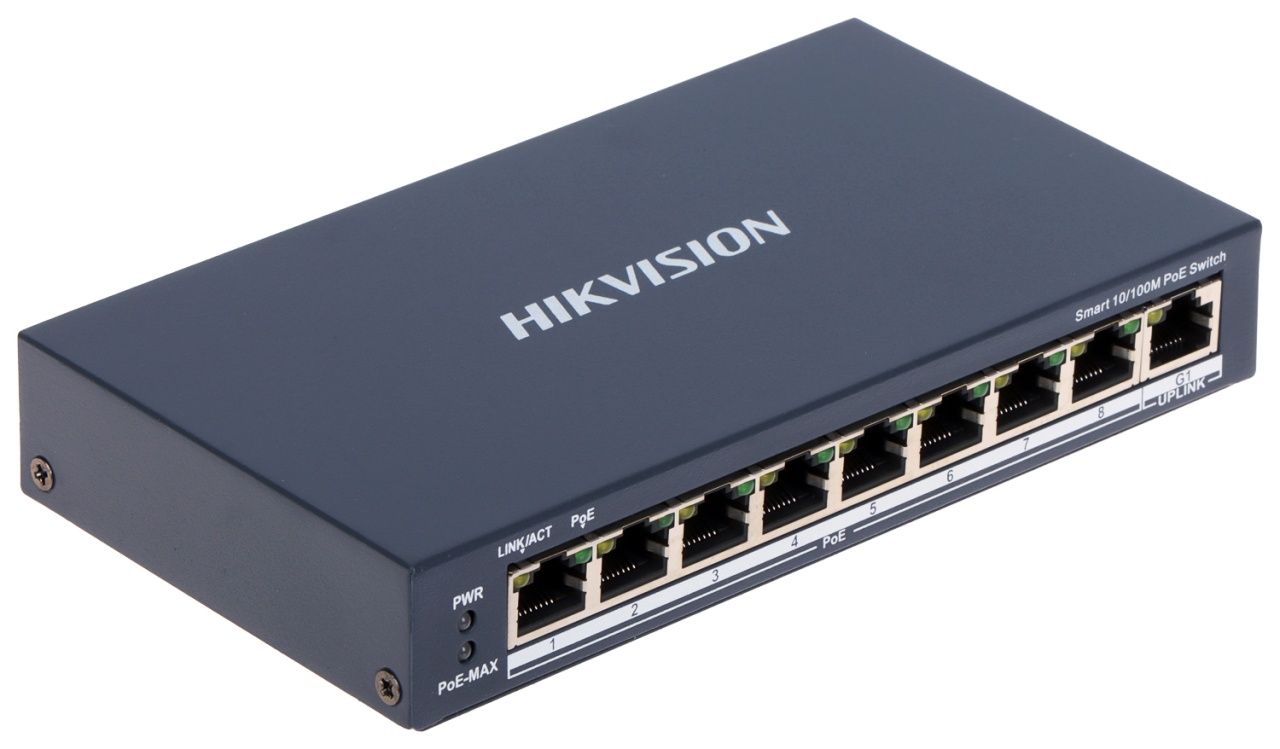

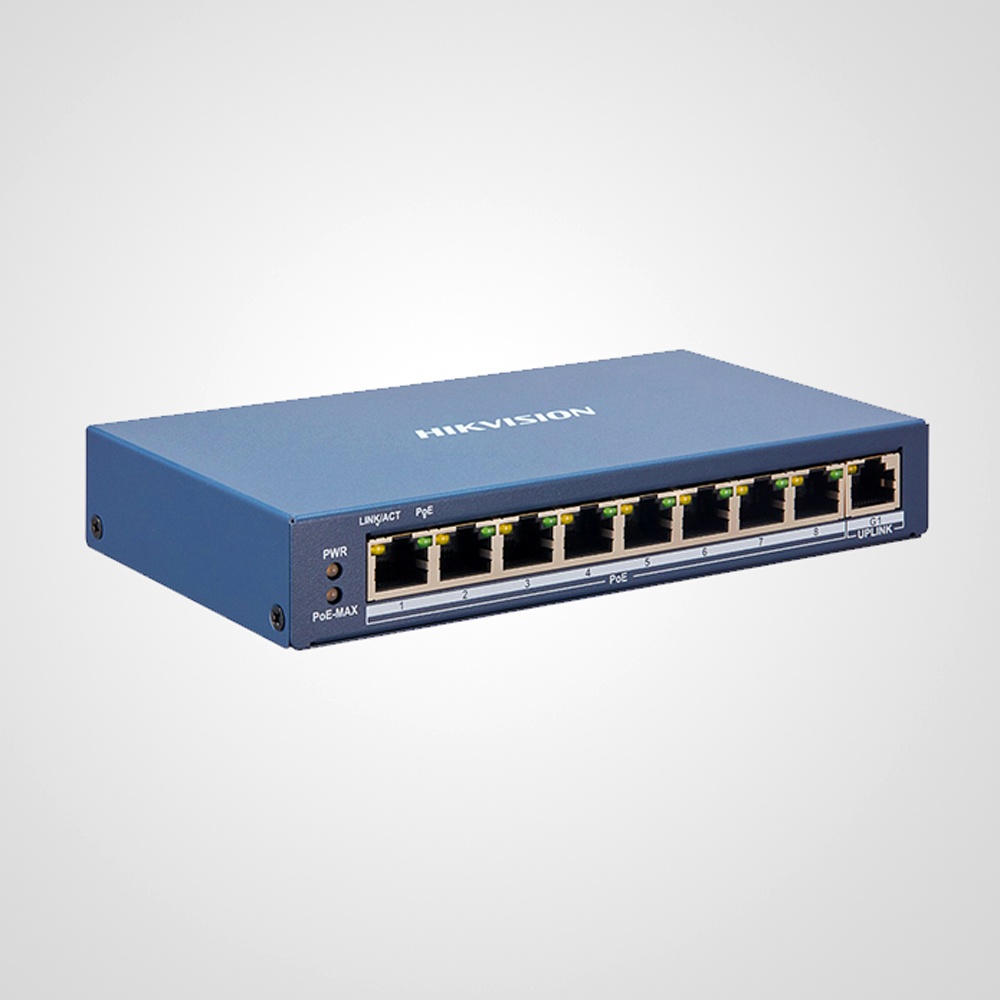

Switch 8 porturi POE Hikvision DS-3E1309P-EI(B)

Descriere

Switch 8 porturi PoE Hikvision DS-3E1309P-EI-M

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +85°C si cu umiditate de pana la 95%.

• General
• ShellMetal material, fan-free design
• Net Weight0.35 kg (0.77 lb)
• Gross Weight1.114 kg (2.45 lb)
• Dimensions (W × H × D)170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)

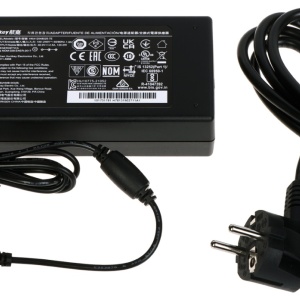

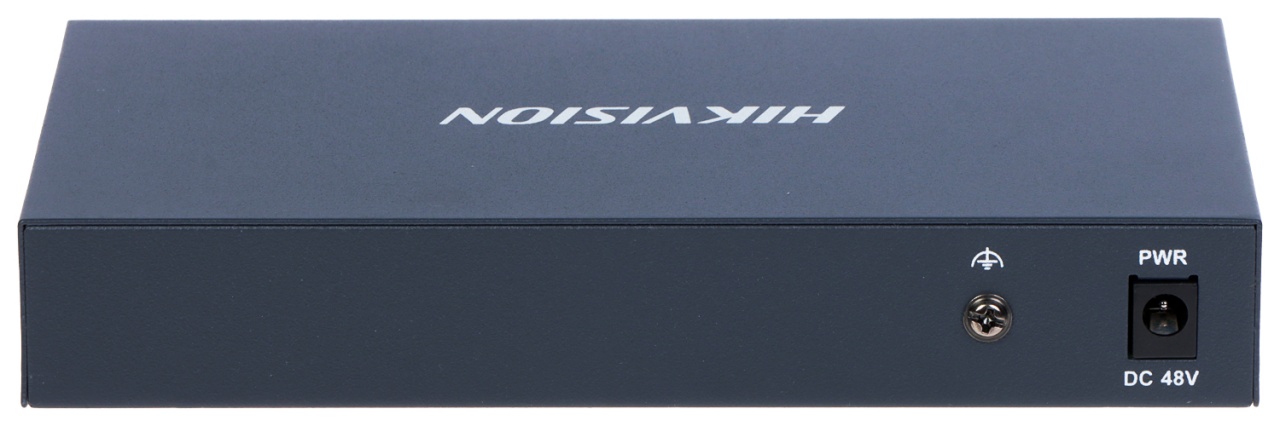

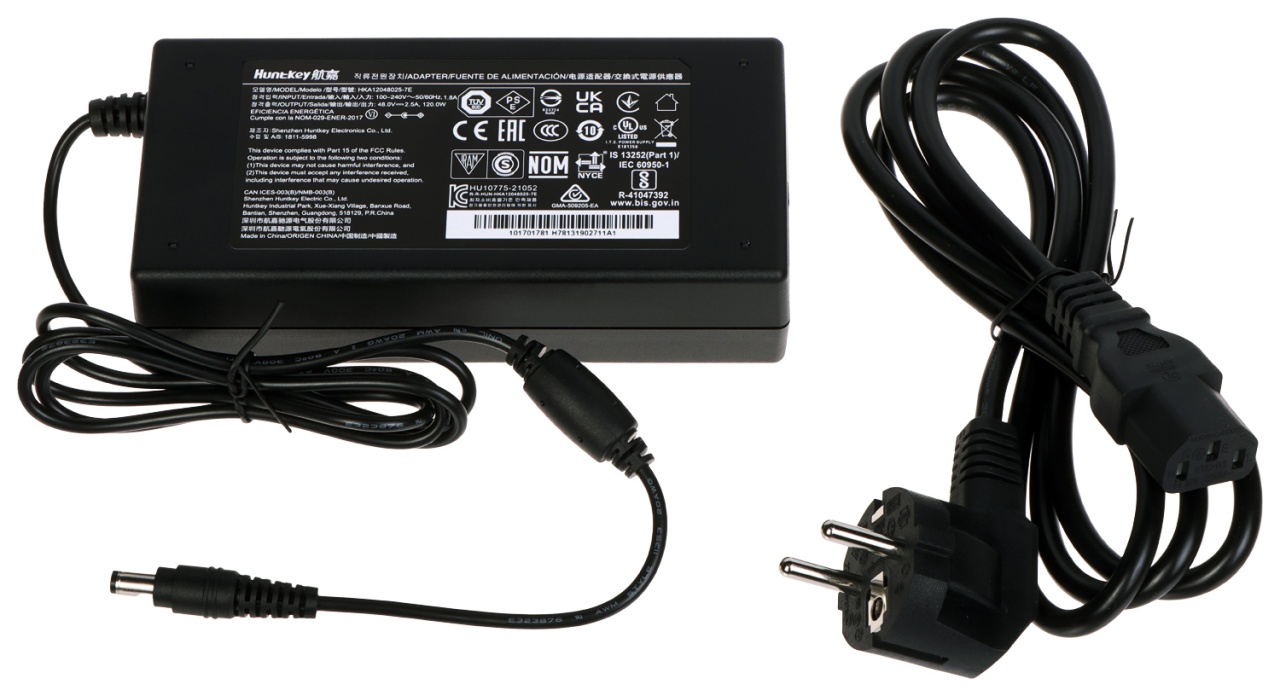

• Power Supply54VDC，2.22A
• Installation ModeDesk-Mounted,Wall-Mounted
• Max. Power Consumption120 W
• Power Consumption in Idle10 W
• Surge Protection6 kV

• Network Parameters

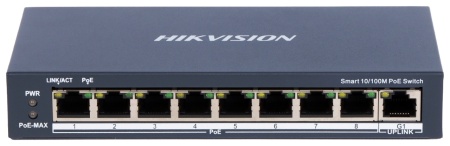

• Ports8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
• MAC Address Table8 K
• Packet Forwarding Rate

  Whole-Device Performance: 4.17 Mpps

  Port Performance: 2.68 Mpps

• Internal Cache4 Mbits
• Switching Capacity

  Whole-Device Performance: 5.6 Gbps

  Port Performance: 3.6 Gbps

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(-), 3/6(+)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget110 W

• Software Function
• Long Range

  Ports 1 to 8: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation

  Ports 1 to 8: port isolation mode to improve network security

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
• Loop Prevention

  Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

  Support 802.1D STP.

  Suppport 802.1w RSTP.

• VLAN

  VLAN is used for network scale planning and network health improvement.

  Support 802.1Q.

  Configurable VLAN ID from 1-4094.

  Support Trunk, Access port mode.

  Support Max. 4094 VLAN.

• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Display the port rate.

  2. Display the port bandwidth utilization rate.

  3. Display the PoE power usage.

  4. Display topology information.

  5. Display the alarm status.

  6. Restart ports and devices.

  7. Enable port long-rage mode.

  8. Remotely upgrade the device.

• System Maintenance

  Support device management via web.

  Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

  Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

  Support management via Hik-Central Pro.

  Support remote management via Hik-Partner Pro.

  Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

  Supports 802.1ab LLDP for peer device discovery.

  Support port mirroring for fault locating.

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
