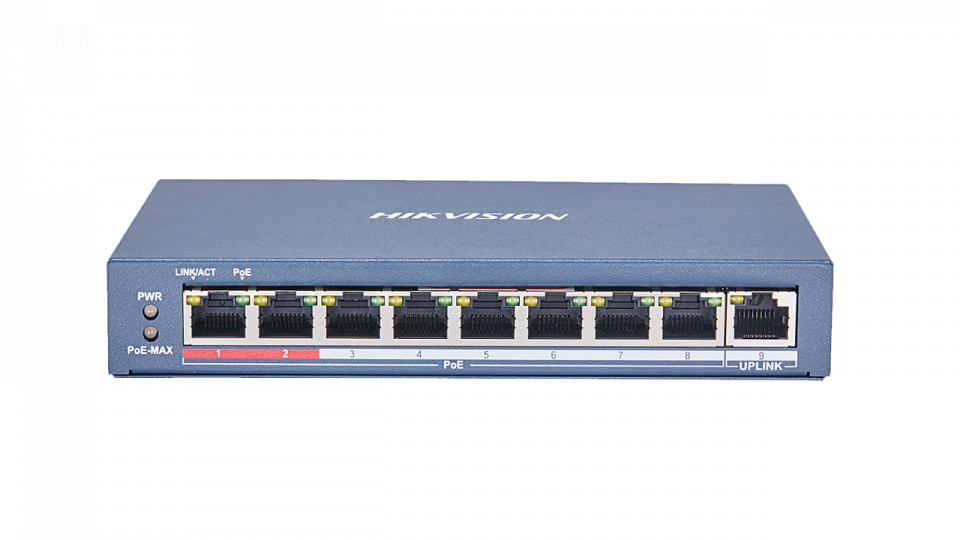

Switch 8 porturi PoE Hikvision carcasa metalica DS-3E0109P-E(C)

HikVision
407,99 RON (TVA inclus)
337,18 RON (fara TVA)
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Stoc 57
Cod produs - SKU DS-3E0109P-E(C)
EAN 6941264013976
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 8 porturi PoE Hikvision carcasa plastic DS-3E0109P-E(C)



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.



  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
  • PoE PortPorts 1 to 8
  • Max. Port Power30 W
  • PoE Power Pudget115 W
  • Max. Power Consumption120 W
  • Network Parameters
  • Port Number8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default); Extend mode
  • High Priority PortsPorts 1 to 2
  • Ports For Long-Distance TransmissionPorts 1 to 8
  • MAC Address Table2 K
  • Switching Capacity1.8 Gbps
  • Packet Forwarding Rate1.339 Mpps
  • Internal Cache1 Mbits
  • General
  • ShellMetal material, fan-free design
  • Gross Weight1.01 kg (2.23 lb)
  • Net Weight0.35 kg (0.77 lb)
  • Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 2.5 A
  • Power Consumption In Idle5 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Detalii

SKU
DS-3E0109P-E(C)
EAN
6941264013976
Categorii
Switch PoE
Greutate
2 kg
Brand
HikVision
Producator
HikVision
Numar porturi
8
Fisa tehnica
Fisa tehnica DS-3E0109P-EC.pdf
