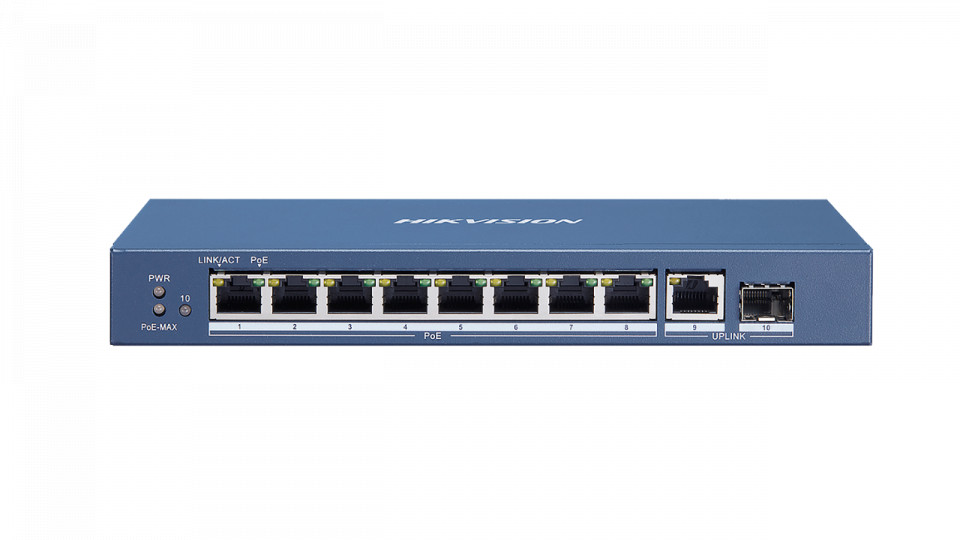

Switch 8 porturi PoE Gigabit Hikvision DS-3E0510P-E/M

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinEthernet cable 1/2/3/6 provide power supply.
• PoE PortPorts 1 to 8
• Max. Port Power30 W
• PoE Power Pudget58 W
• Max. Power Consumption65 W

• Network Parameters
• Port Number8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• MAC Address Table4 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate14.88 Mpps
• Internal Cache1.5 Mbits

• General
• ShellMetal material, no fan equipped.
• Gross Weight1.366 kg (3.01 lb)
• Net Weight0.635 kg (1.40 lb)
• Dimension (L × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 1.35 A
• Power Consumption In Idle7 W
