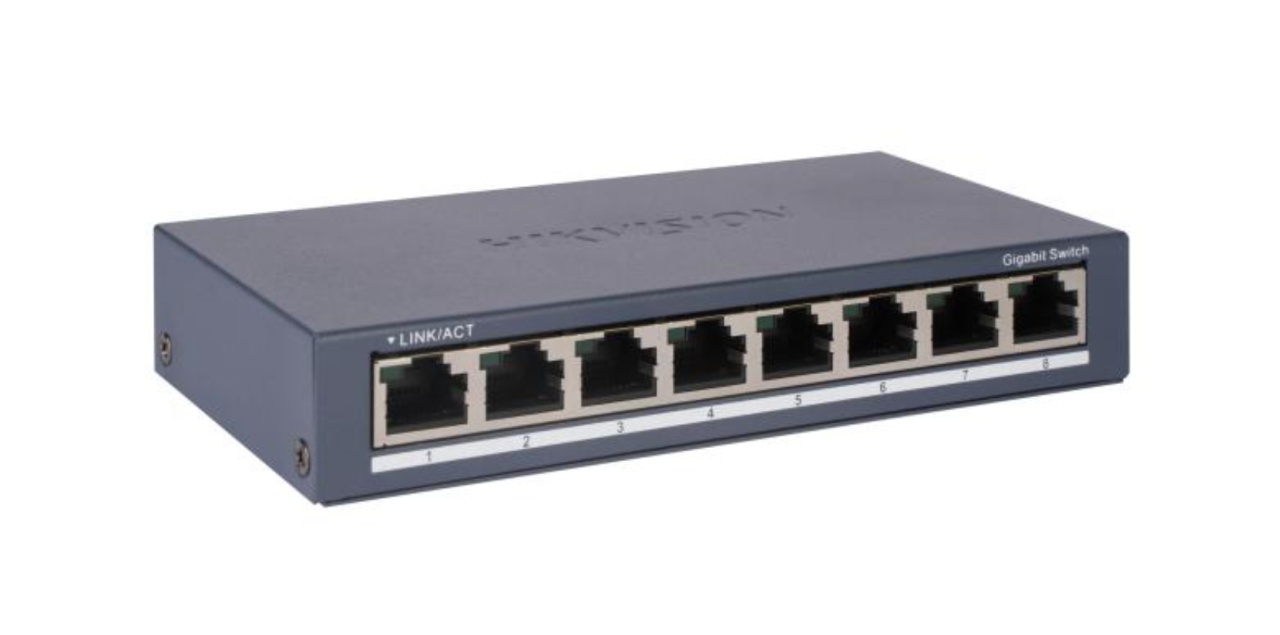

Switch 8 Port Smart Hikvision DS-3E1508EIV2 16 Gbps capacitate de comutare, 11.9 Mpps rata de transfer, VLAN 802.1Q, izolarea porturilor, STP/RSTP, HPP management, carcasa metal, consum 5 W, alimentare 5 VDC

Descriere

Specification
General
Shell Metal material, fan-free design
Net Weight 0.36 kg (0.79 lb)
Gross Weight 0.660 kg (1.46 lb)
Dimensions (W × H × D) 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 5 V DC, 1 A
Installation Mode
Desk-Mounted;
Wall-Mounted;
Max. Power Consumption 5 W
Power Consumption in Idle 3 W
Surge Protection 6 kV
Network Parameters
Ports 8 × Gigabit RJ45 port
MAC Address Table 4 K
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.91 Mpps
Internal Cache 1.5 Mbits
Software Function
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for
load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 2 aggregation groups.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions
supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can
communicate with ports outside the isolation group.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which
will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP
addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network
cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:
2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),FCC (47 CFR Part 15,
Subpart B),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN
62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
