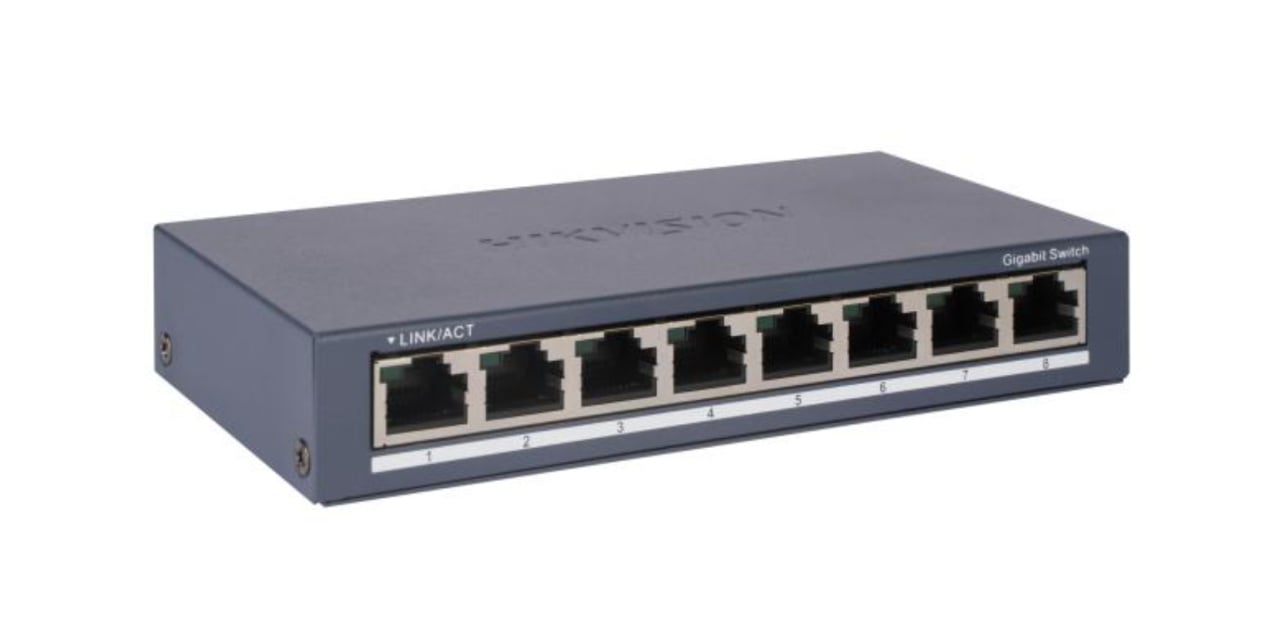

Switch 8 × Gigabit RJ45 port Hikvision DS-3E0508-O

Descriere

Specification
Model DS-3E0508-O
Network
Parameters
Ports 8 × Gigabit RJ45 port
MAC Address Table 8 K
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.90 Mpps
Internal Cache 4 Mbits
General
Shell Metal material, fan-free design
Net Weight 0.24 kg (0.53 lb)
Gross Weight 0.37 kg (0.77 lb)
Dimensions (W × H × D) 145.00 mm × 25.60 mm × 68.45 mm (5.71'' × 1.01'' × 2.69'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 5 V DC, 0.6A
Max. Power Consumption 3 W
Power Consumption in Idle 1.61 W
Installation Mode Desk-Mounted,Wall-Mounted
Surge Protection 6 kV
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:
2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN
62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC)
No.1907/2006)
