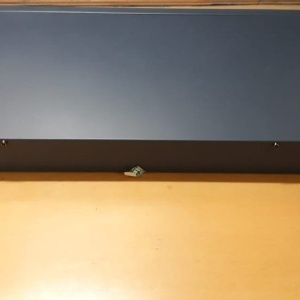

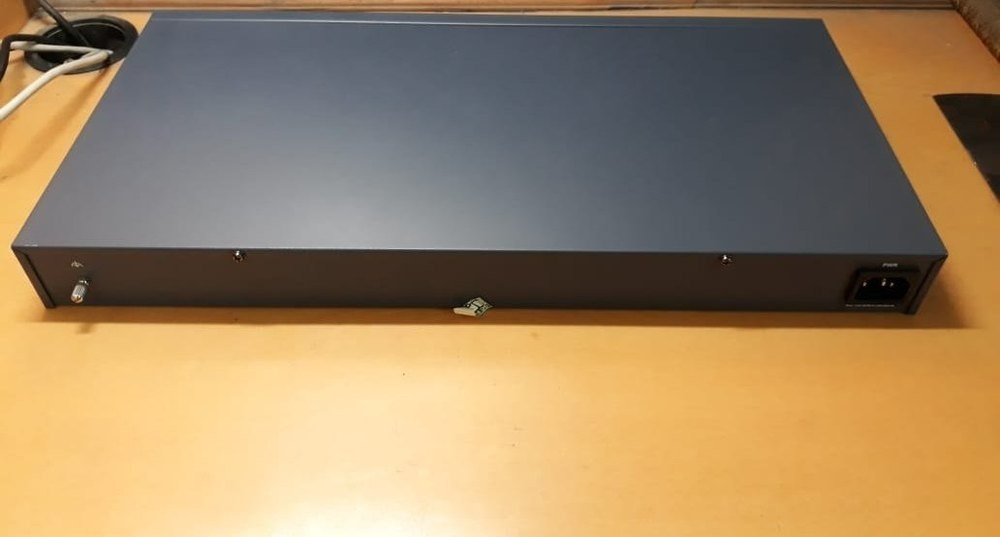

Switch 24 porturi PoE Hikvision carcasa metalica DS-3E0526P-E

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• Network Parameters
• Port Number24 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding ModeStore-and-forward switching
• MAC Address Table8 K
• Switching Capacity52 Gbps
• Packet Forwarding Rate38.688 Mpps
• Internal Cache4.1 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinSupport 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.
• PoE PortPorts 1 to 24
• Max. Port Power30 W
• PoE Power Pudget370 W
• Max. Power Consumption400 W

• General
• ShellMetal material
• Gross Weight3.74 kg (8.25 lb)
• Net Weight2.88 kg (6.35 lb)
• Dimension (L × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
• Power Consumption In Idle30 W
