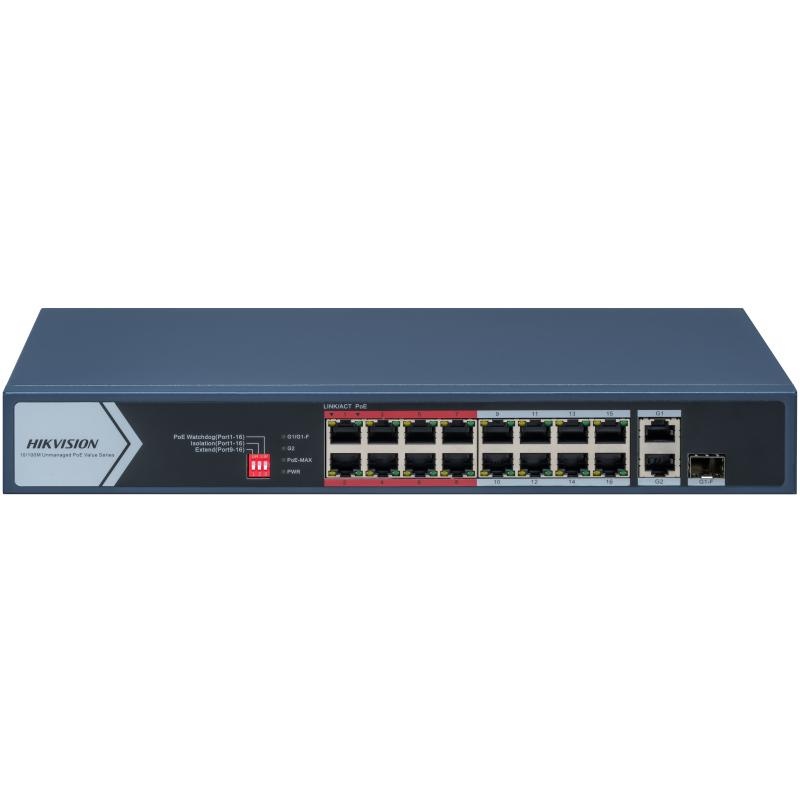

Switch 16 porturi PoE Hikvision DS-3E0318P-E/M(C)

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Viteza transfer

Gigabit Ethernet, o tehnologie de transmisie de date bazata pe formatul cadrului Ethernet si protocolul utilizat in retelele locale (LAN), ofera o rata de transfer de 1 miliard de biti pe secunda (un gigabit). Gigabit Ethernet este definit ca standardul IEEE 802.3 si este in prezent folosit in ulte retele de intreprinderi. Reteaua Gigabit Ethernet este realizata in principal pe fibra optica (cu distante foarte scurte pe suport de cupru). Intr-o retea Gigabit se pot alimenta si retelele Ethernet LAN deja existente de 10 sau 100 Mbps.

• General
• ShellMetal material
• Net Weight1.80 kg (4.00 lb)
• Gross Weight2.58 kg (5.69 lb)
• Dimensions (W × H × D)335.0 mm × 44.5 mm × 175.8 mm (13.19'' × 1.75'' × 6.92'')
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 2.5 A
• Max. Power Consumption150 W
• Power Consumption in Idle20 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 KV

• Network Parameters
• Port16 × 10/100 Mbps PoE port,1× Gigabit RJ45 port,1 × Gigabit combo
• MAC Address Table8 K
• Switching Capacity7.2 Gbps
• Packet Forwarding Rate5.36 Mpps
• Internal Cache4 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget130 W

• Dialing Function
• Long Range

  Ports 9 to 16 : up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
