Descriere
Switch 16 porturi PoE Hikvision carcasa metalica DS-3E0318P-E/M

Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Ports |
10/100M RJ45: | | 16 |
10/100/1000M RJ45: | | 1 |
1000M SFP: | | 1 independent |
Port of high priority: | | Port 1 - 8 |
Performance |
Switching Capacity: | | 7.2 Gbps |
Store-and-forward: | | Supported |
MAC address table: | | 4 k |
MAC address learning: | | Auto-learning/ Auto-aging |
Power Over Ethernet |
PoE Standard: | | IEEE 802.3af, IEEE802.3at |
Working Mode: | | Priority, Standard, Isolate, Extend |
PoE cable core: | | Supports 8-pin power supply |
PoE port: | | 1 - 16 |
Port max. power: | | 30 W |
Switch max. power: | | 135 W |
General |
Power Supply: | | 100~240 V AC,50/60 Hz |
Power Consumption: | | ≤150w |
Working Temperature: | | Operating Temperature: 0 °C ~ 40 °C |
Working Humidity: | | Operating Humidity: 10% - 90% RH non-condensing |
Storage Temperature: | | Storage Temperature: -40 °C ~ 70 °C |
Storage Humidity: | | Storage Humidity: 5% - 90% RH non-condensing |

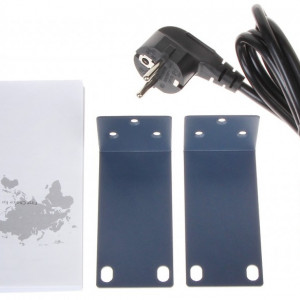

Accessories |
SFP modules (Optional): | | HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km |
