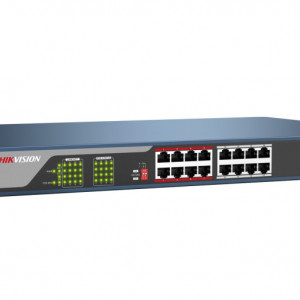

Switch 16 porturi PoE Hikvision carcasa din metal DS-3E0318P-E(B)

HikVision
HikVision
Cumpara de minim 500 lei pentru transport gratuit
Cod produs - SKU DS-3E0318P-E(B)
EAN 2881
Produs disponibil in stoc extern .
Disponibil cu precomanda
Cere oferta de pret
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere


Switch 16 porturi PoE Hikvision carcasa din plastic DS-3E0318P-E(B)



Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.




  • Network Parameters
  • Port Number16 × 100 Mbps PoE ports, 2 × 1000 Mbps combos
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default); Extend mode
  • High Priority PortsPorts 1 to 8
  • Ports For Long-Distance TransmissionPorts 9 to 16
  • MAC Address Table4 K
  • Switching Capacity7.2 Gbps
  • Packet Forwarding Rate5.356 Mpps
  • Internal Cache2.75 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinPorts for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Pudget230 W
  • Max. Power Consumption250 W
  • General
  • ShellMetal material
  • Gross Weight3.47 kg (7.65 lb)
  • Net Weight2.65 kg (5.84 lb)
  • Dimension (L × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Power Consumption In Idle20 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Detalii

SKU
DS-3E0318P-E(B)
EAN
2881
Categorii
Switch PoE
Greutate
4 kg
Brand
HikVision
Producator
HikVision
Numar porturi
16
Fisa tehnica
Fisa tehnica DS-3E0318P-EB.pdf
