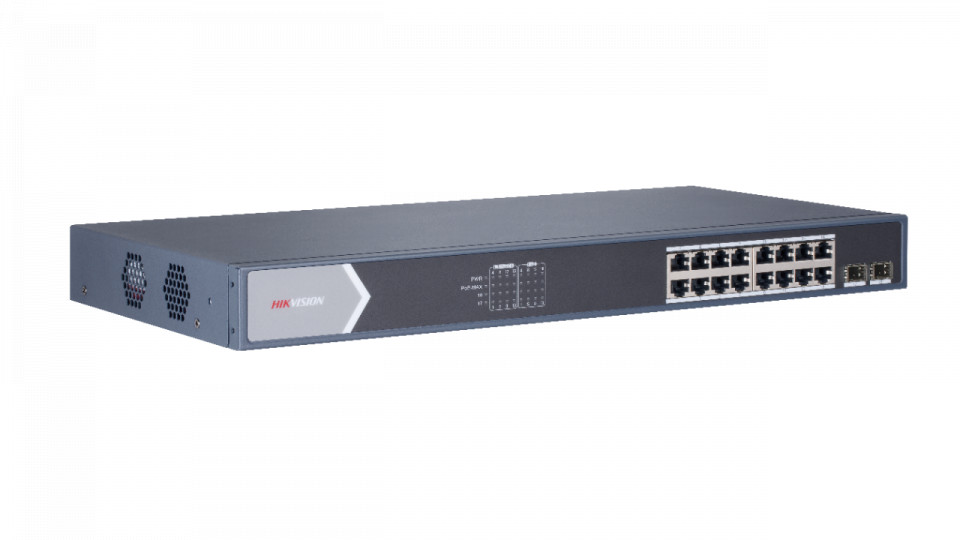

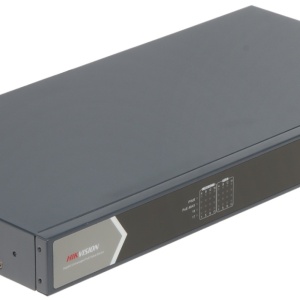

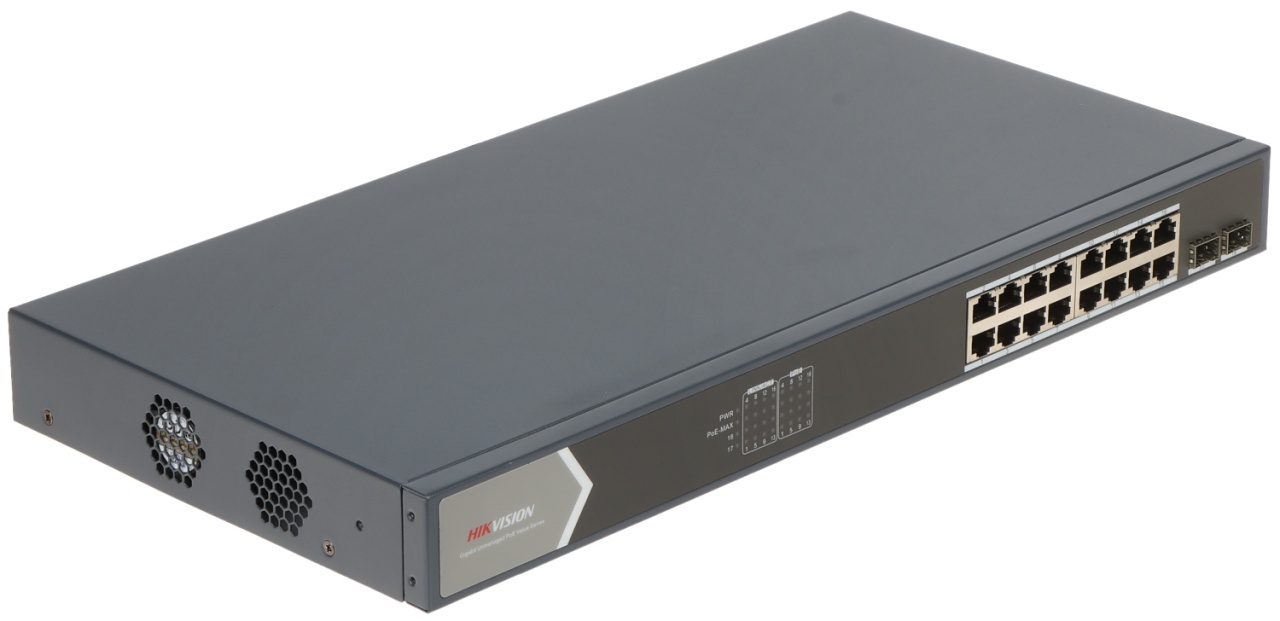

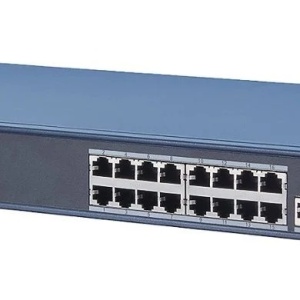

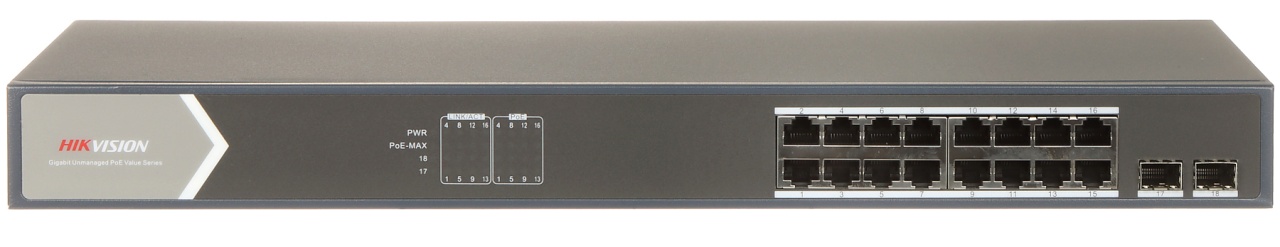

Switch 16 porturi PoE Gigabit Hikvision DS-3E0518P-E/M

Descriere

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinEthernet cable 1/2/3/6 provide power supply.
• PoE PortPorts 1 to 16
• Max. Port Power30 W
• PoE Power Pudget125 W
• Max. Power Consumption150 W

• Network Parameters
• Port Number16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• MAC Address Table8 K
• Switching Capacity36 Gbps
• Packet Forwarding Rate26.784 Mpps
• Internal Cache4.1 Mbits

• General
• ShellMetal material, no fan equipped.
• Gross Weight2.500 kg (5.51 lb)
• Net Weight3.570 kg (7.87 lb)
• Dimension (L × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, 2.5 A (Max)
• Power Consumption In Idle25 W
