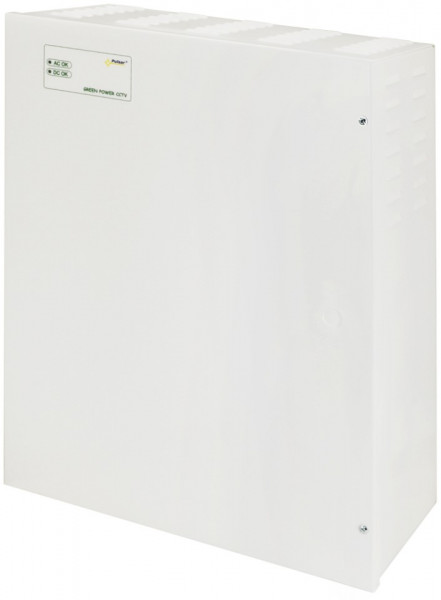

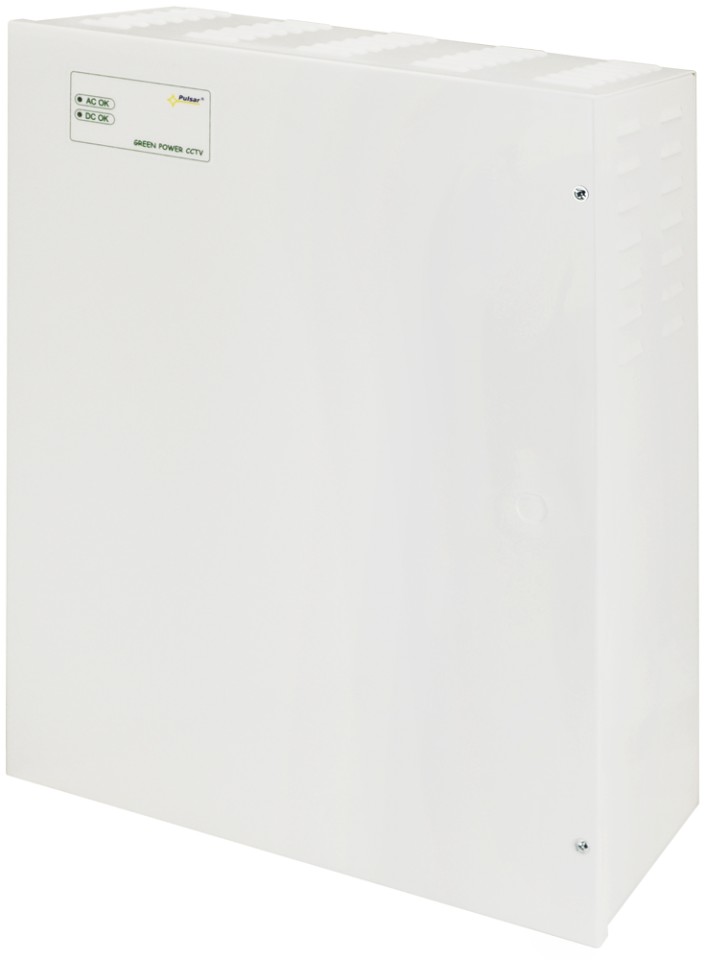

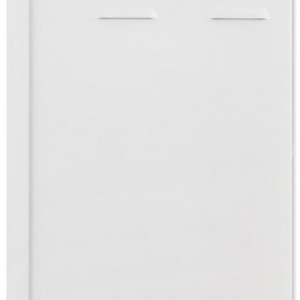

Sursa stabilizata in comutatie Pulsar cu backup si loc depozitare DVR/NVR 12V/10A PSUPS10A12CR

Descriere

Sursa stabilizata in comutatie Pulsar cu loc depozitare DVR/NVR 12V/10A PSUPS10A12CR

• Power supply: 176÷264VAC/50Hz
• Power supply output: 8x0,75A/13,8VDC + 1x4A/12VDC
• Battery charging current: 1A
• Fitting battery: 17Ah/12V
• Approximate backup time: 1h 30min
• Efficiency: 80%
• Protections: SCP, OLP, UVP, OVP, OHP*, tamper (opening of the enclosure)
• Dimensions: W=420, H=535, D+D1=193+14 [+/- 2mm]
• The dimensions of the recorder compartment: W2=380, H2=320, D2=65 [+/- 2mm]
• Warranty: 2 year from the production date
• Notes:

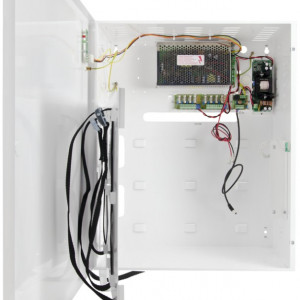

  • enclosure is fitted with recorder place

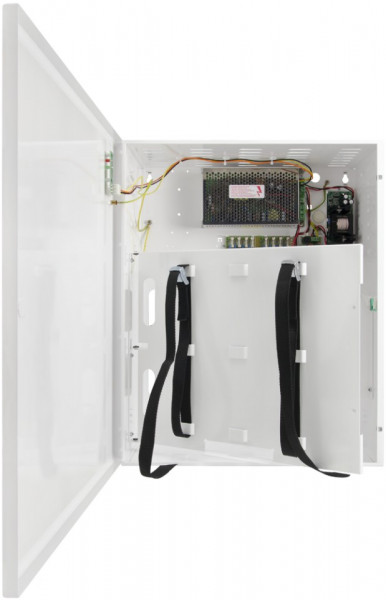

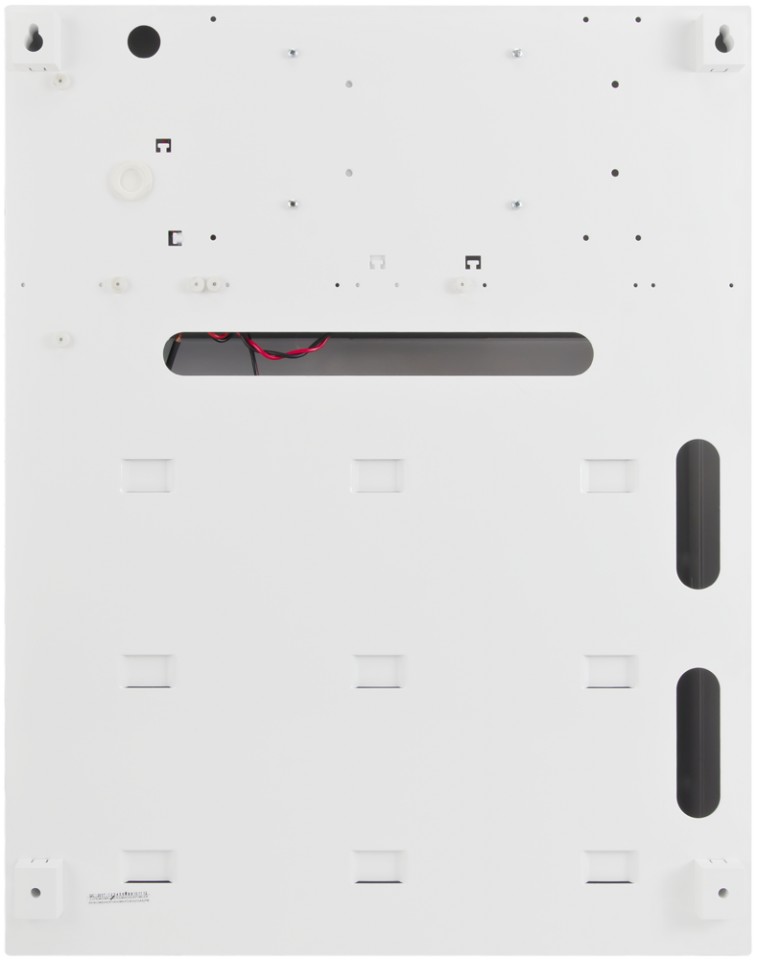

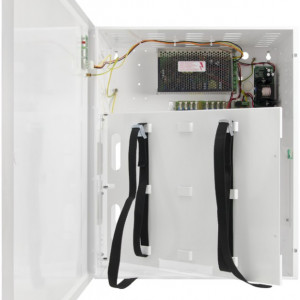

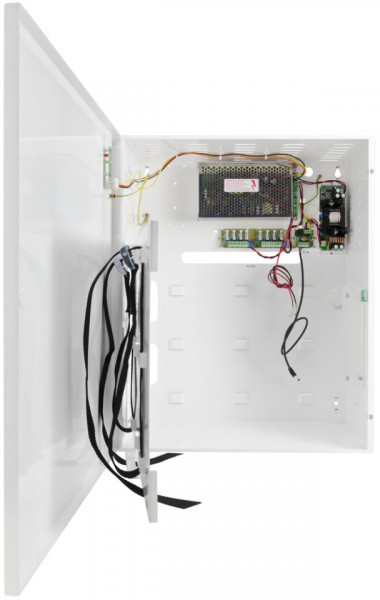

  • The housing has a hinged mounting plate with straps for mounting the recorder

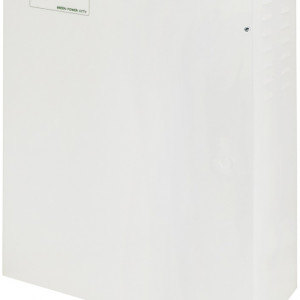

  • surface mounted enclosure
  • closing – screwed (lock assembly possible)
