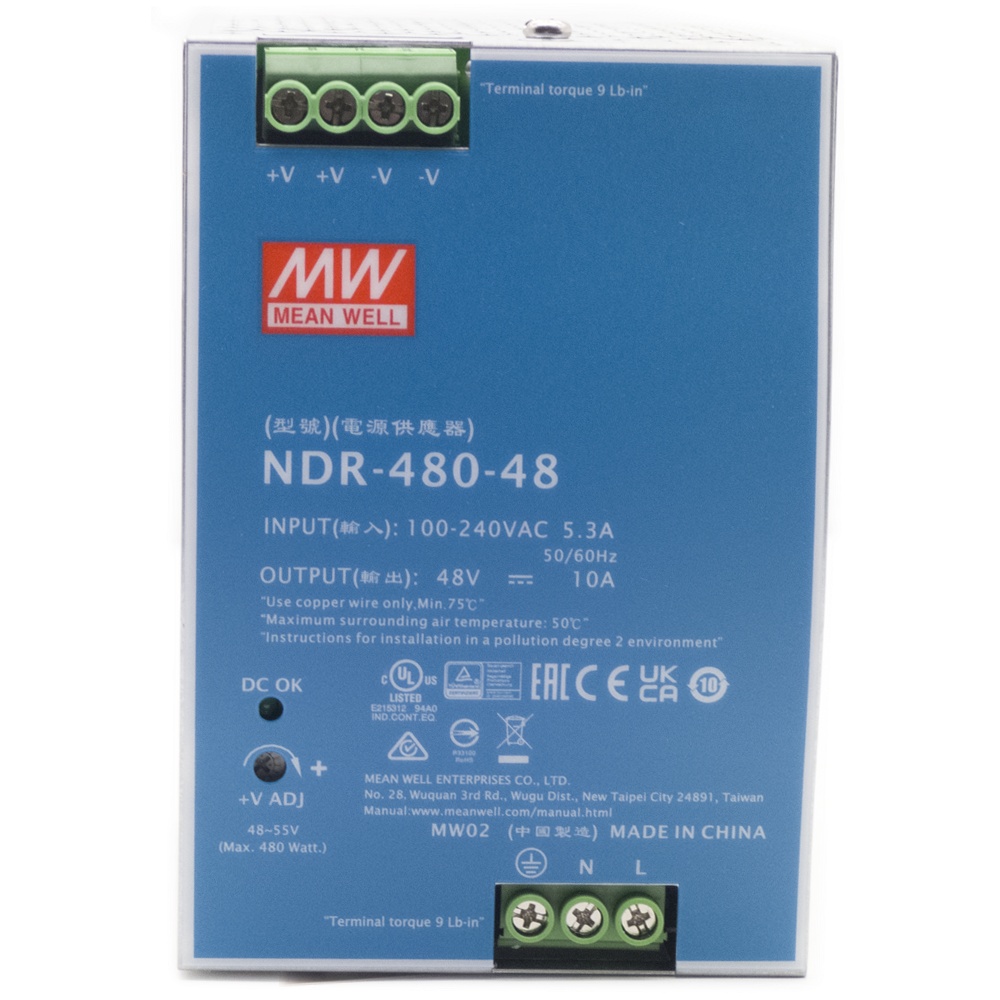

Sursa de alimentare industriala Hikvision NDR-480-48, tensiune DC 48V, putere nominala 480W, curent 10A, interval reglare 48-55V, protectie la supratensiune si supratemperatura, montaj pe sina DIN

HikVision
708,49 RON (TVA inclus)
585,53 RON (fara TVA)
HikVision
Cumpara de minim 199 lei pentru transport gratuit
Stoc 15
Cod produs (SKU) NDR-480-48
EAN 9577
Disponibil cu precomanda
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0761.40.40.40 (Luni - Vineri: 08:30 - 17:30)
Trimite-ne un mesaj

Descriere

  • OUTPUT
  • DC VOLTAGE48V
  • RATED CURRENT(forBETypeonly)10A
  • RATED POWER480W
  • RIPPLE & NOISE (max.) Note.3150mVp-p
  • VOLTAGE ADJ. RANGE48 ~ 55V
  • VOLTAGE TOLERANCE Note.4±1.0%
  • LINE REGULATION±0.5%
  • LOAD REGULATION±1%
  • SETUP, RISE TIME Note.61500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load
  • HOLD UP TIME (Typ.)16ms/230VAC 16ms/115VAC at full load
  • RATEDCURRENT10A
  • INPUT
  • VOLTAGE RANGE Note.590 ~ 264VAC 127 ~ 370VDC
  • FREQUENCY RANGE47 ~ 63Hz
  • EFFICIENCY (Typ.)92.5%
  • AC CURRENT4.8A/115VAC 2.4A/230VAC
  • INRUSH CURRENT (Typ.)20A/115VAC 35A/230VAC
  • LEAKAGE CURRENT<2mA / 240VAC
  • PROTECTION
  • OVER VOLTAGE

    56 ~ 65V

    Protection type : Shut down o/p voltage, re-power on to recover

  • OVER TEMPERATUREProtection type : Shut down o/p voltage, re-power on to recover
  • ENVIRONMENT
  • WORKING TEMP.-20 ~ +70℃ (Refer to "Derating Curve")
  • WORKING HUMIDITY20 ~ 95% RH non-condensing
  • STORAGE TEMP., HUMIDITY-40 ~ +85℃ , 10 ~ 95% RH
  • TEMP. COEFFICIENT±0.03%/℃ (0~50℃)
  • VIBRATIONComponent:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
  • SAFETY& EMC
  • SAFETY STANDARDSUL508, TUV BS EN/EN62368-1, approved;(meet BS EN/EN60204-1)
  • WITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
  • ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
  • EMC EMISSIONCompliance to BS EN/EN550 2 (CISPR 2),BS EN/EN61204-3 Class B,BS EN/ 3 3 EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B
  • EMC IMMUNITY

    Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2 ( EN50082-2), EN61204-3, BS EN/ BS EN/ BS EN/ BS EN/ BS EN/

    heavy industry level, EAC TP TC 020

  • OTHERS
  • MTBF1041.6K hrs min. Telcordia SR-332 (Bellcore) ; 146.8K hrs min. MIL-HDBK-217F (25 )
  • PACKING1.5Kg; 8pcs/13Kg/0.9CUFT
  • Physical appearance/structure
  • Dimensions85.5*125.2*128.5mm (W*H*D)

Detalii

SKU
NDR-480-48
EAN
9577
Categorii
Surse de alimentare
Brand
HikVision
Producator
HikVision
Fisa tehnica
NDR-480-SPEC (1).pdf
