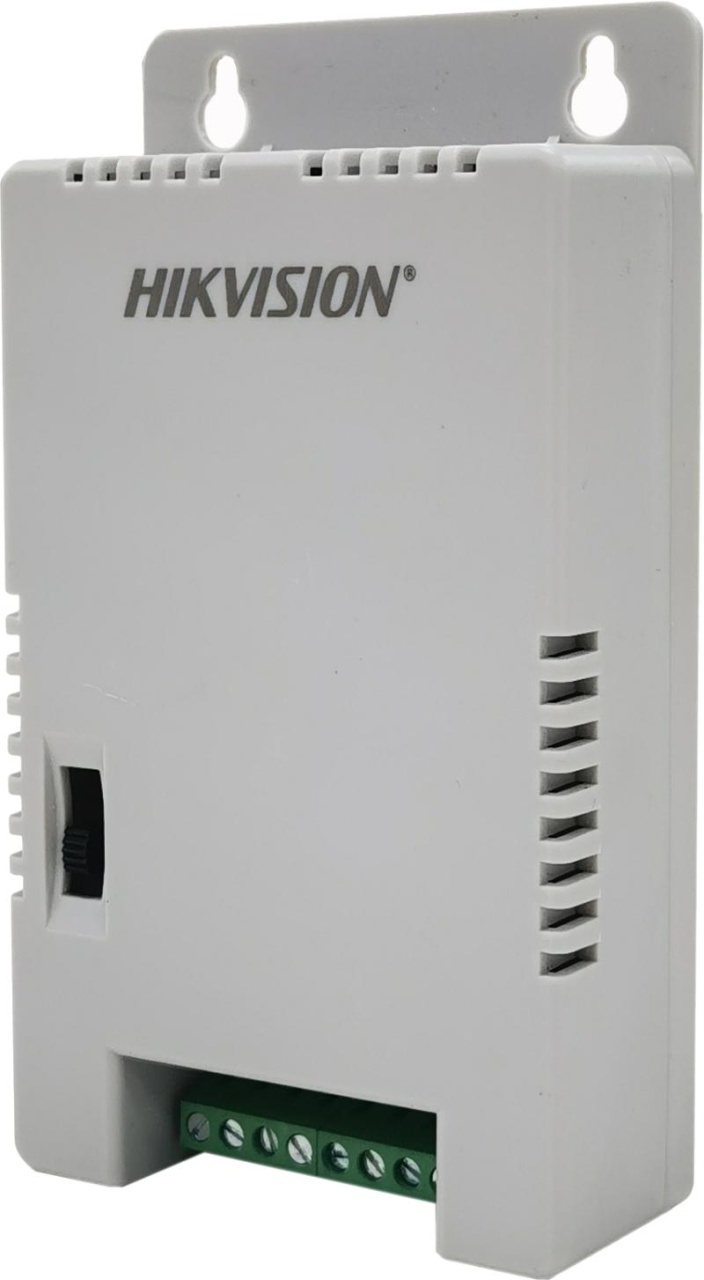

Sursa de alimentare, canale multiple Hikvision DS-2FA1225-C4

Descriere

• Parameters
• AppearanceWhite
• Dimension144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")
• Operating Conditions0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
• LED IndicatorGreen
• Input150 to 285 VAC, 47 Hz to 63 Hz
• Output12 VDC/1 A per channel
• Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
• AC Input ConnectorC4
• DC Output ConnectorDC Plug: grid terminal
• Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
• Cable Length Compensation

  Normal: 12 VDC

  Long: 13.5 VDC

  Ex-Long: 15 VDC
