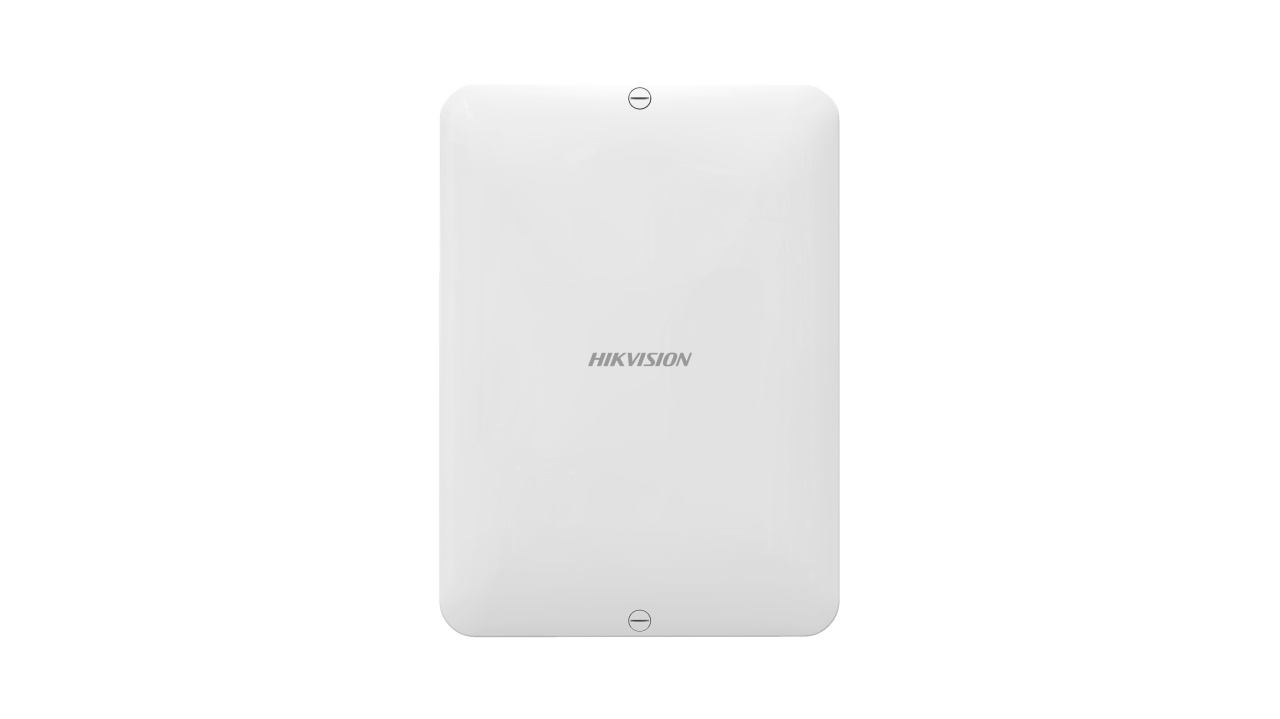

Sursa alimentare bus Hikvision DS-PR531-3A, compatibila AX Hybrid Pro G2, iesire AUX 3A, iesire sirena 3A, curent total 4A la 14.5VDC, extensor bus RS-485, eFuse resetabil, suport acumulator backup 7Ah
551,40 RON
(TVA inclus)
455,70 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Outputs
- Auxiliary Power Output1
- On-board sounder output1
- Bus interconnection
- Bus-extenderYes
- Bus technologyHalf-Duplex RS-485
- Bus wiring4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
- Power supply - general
- PS typeType A
- Quiescent current75 mA @15VDC (when on battery without external load)
- Power supply - primary power supply
- Mains Input~ 100-240V 50/60Hz, 1.4 A typ. @115 VAC, 0.85 A typ. @ 230 VAC
- Power supply capacity15 VDC 5 A (0.5 A dedicated to battery)
- Power supply - auxiliary power supply
- Battery pack1 × rechargeable sealed lead-acid (SLA) battery (not included by default)
- Battery capacity12VDC, up to 7Ah (≥ 5600 mAh in charged state)
- Recommended batteryOUTDO OT7-12 (7Ah), Yuasa NP7-12FR (7Ah)
- Battery stand-byUp to 12 hrs
- Recharge period24 hrs to 80% (5600 mAh)
- Floating voltage13.8VDC
- Low energy voltage11.60±0.5 V (Restore when rise above 11.74±0.5 V)
- Cut-off voltage11.0 VDC for deep-discharge protection
- Power supply - general output
- Total output capacityNominal 14.5VDC 4 A, range 10.7-15 VDC with up to 120 mV ripple (VPP)
- Total output protection4 A resettable eFuse
- Power supply - auxiliary power output
- Output protection3 A resettable eFuse
- Power supply - Bus power output
- Output protection(Shared AUX power output)
- Power supply - sounder power output
- Output protection3 A resettable eFuse
- Environmental
- Operating temperature-10°C to 50°C (14°F to 122°F), indoor use only
- Storage temperature-20°C to 60°C (-4°F to 140°F)
- Relative humidity10% ~ 90% non-condensing
- Physical
- Dimension (W × H × D)360 mm × 260 mm × 96.3 mm
- 1500 g
- Tamper-proofFront and Rear
- Installation methodWall mount
- Compliance
- Electrical conformityCE, CB
- EN 50131Security Grade 2, Environmental Class II
Detalii
SKU
DS-PR531-3A
EAN
8773
Categorii
Greutate
2.3 kg
Brand
Producator
HikVision
Tensiune
14.5V
Curent iesire
2 - 4A
