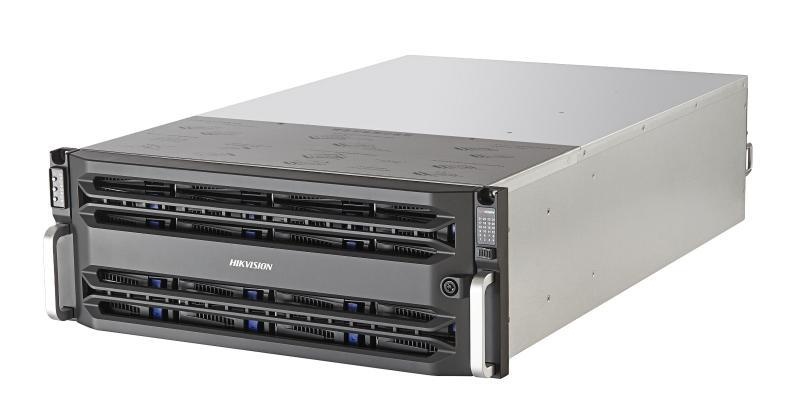

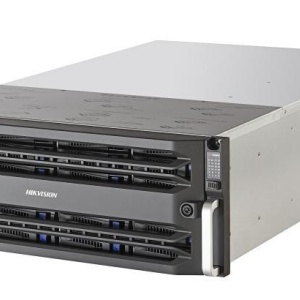

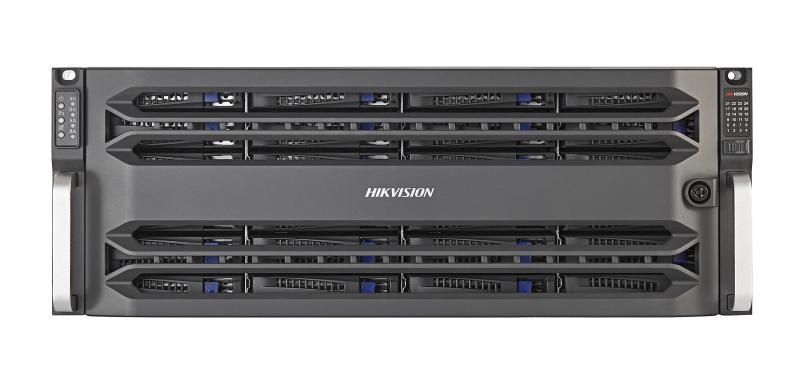

Storage HikVision Hybrid SAN DS‑AT1000S/480 24‑slot cu 24×20 TB HDD IoT SMR, tehnologie heliu complet sigilat pentru supraveghere, mod Direct Streaming, eficient energetic si cost‑eficient, fiabil, usor de operat si mentinut

Descriere

• Hardware
• Processor64-bit multi-core processor
• Cache16 GB, extendable to 32 GB

• Storage Management
• Disk managementDisk detection, pre-alarm, and repair
• Logical volume managementRecording volume management

• Recording Management
• Recording modeContinuous recording, manual recording, and alarm recording
• Video protectionVideo lock, video loss alarm
• Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
• Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information

• Network
• ProtocolRTSP;ONVIF;HKSDK

• Device Maintenance
• Management modeGUI based on web, serial port CLI, platform
• Alarm modeAudio, indicator, GUI

• Storage
• HDD slot24
• Interface/capacitySATA, Up to 20TB
• RAIDRAID5, RAID6, iRAID

• Performance
• Video performance400
• Picture performance50
• Direct streaming mode: video (2 Mbps) + picture400-ch

• General
• Power supply100 to 240 VAC/47 to 63Hz, redundant power supply
• Consumption (with HDDs)≤ 369.8 W
• Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
• Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
• Dimension (W × H × D)445 × 746 ×175 mm (17.5 × 29.4 × 6.9 inch)
• Weight (without HDDs)≤40kg (88.2 lb)

• External interface
• USB2 × USB 3.0, 2 × USB 2.0
• Data network interface4, 1000 Mbps Ethernet interface
• MiniSAS interface1
• COM1, RS-232
• Management network interface1, 1000 Mbps Ethernet interface

• HDD
• HDD ModelHikvision,HK7220AH,20T
