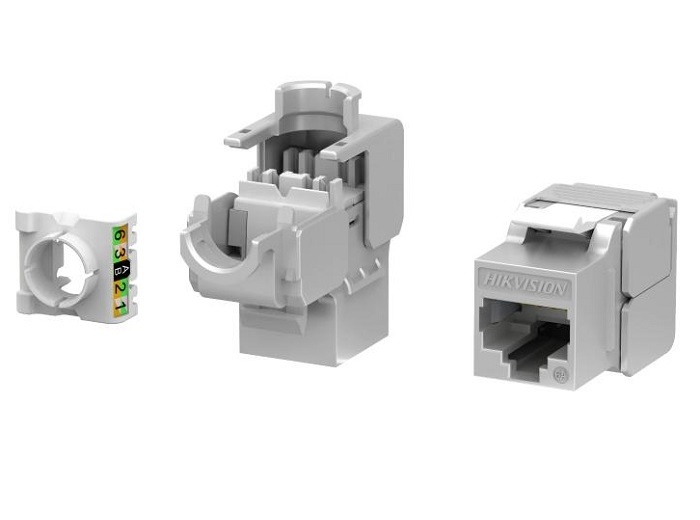

Set 50 mufe Keystone Cat6A STP 180° Hikvision DS-1CK6AP180N Silvery, toolless, pentru cabluri ecranate solid/litat 22-24AWG, terminatii IDC placate aur 50u, compatibile TIA568A/TIA568B, ANSI/TIA-568.2-D, ISO/IEC11801, RoHS 2.0
741,00 RON
(TVA inclus)
612,40 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product CategoryKeystone Jack
- Fire resistance
- Fire resistanceUL 94 V-0
- General Specifications
- ColorSilvery
- ANSI/TIA Category6A
- Cable TypeShielded
- Conductor TypeSolid, Stranded
- Integrated Dust Cover TypeNone
- Termination TypeIDC
- WiringTIA 568A, TIA 568B
- Material Specifications
- Material Type
Conductor: Phosphor Bronze
Housing: Zinc Alloy
IDC: PC
IDC Cap: PC
- Termination Contact Plating50u inch gold
- Electrical Characteristics
- DC resistance≤ 20 mΩ
- Current Rating1.5 A @ 20 °C
- Dielectric Withstand Voltage, RMS, conductive surface1,000 Vac @ 60s
- Dielectric Withstand Voltage, RMS, contact-to-contact1,000 Vac @ 60s
- Insulation Resistance, minimum500 MΩ
- Mechanical Specifications
- Plug to Jack Mating Cycles≥ 750 times
- Dimensions
- Height20.15 mm
- Width16.80 mm
- Depth35.20 mm
- Compatible Conductor Gauge, solid22-24 AWG
- Compatible Conductor Gauge, stranded22-24 AWG
- Environmental Specifications
- Operating Temperature-10 °C to +60 °C
- Storage Temperature-40 °C to +68 °C
- Relative Humidity10%~90%
- Packaging and Weights
- Packaging TypeBox
- Package dimension160 x 110 x 98 mm
- Packaging quantity50
-
27g/pcs
1420g/Box
