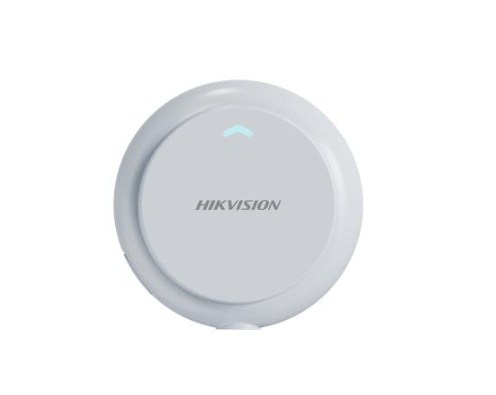

Senzor radar de detectie a caderilor, WIFI, Hikvision DS-TDSB00-EKT/POE/4M

Descriere

• Radar
• Working Frequency60 to 63 GHz
• Modulation WaveformFMCW
• Horizontal Detection Angle± 45°
• Vertical Detection Angle± 45°
• Max. Detectable TargetsUp to 1 target(s)
• Detection Target TypeHuman
• Detection Distance5 m × 4 m

• Network
• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP
• APIISAPI,SDK,OTAP
• User/HostUp to 16 users,3 user levels: administrator, operator, and user
• SecurityPassword protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address)
• Web BrowserIE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge
• Client




  Hik-Central Pro, Hik-Connect, Hik-Parter Pro

• Interface
• Network InterfaceWi-Fi,1 RJ45 10/100Mbps self-adaptive Ethernet port(s)
• IndicatorSupported

• Function
• General FunctionSupports human body detection, fall detection, and target tracing.

• General
• Power




  DC 5 V, 2 A, max. 10 W, Type-C,

  PoE: 802.3af, Type 1, Class 3, max. 10 W

• MaterialPC
• DimensionsØ90 mm × 81 mm (Ø3.54" × 3.19")
• Package Dimensions419 mm × 319 mm × 307 mm (16.5" × 12.56" × 12.09") (L × W × H)
• WeightApprox. 130 g (0.29 lb.)
• With Package WeightApprox. 520 g (1.15 lb.)
• Operating Condition-10 °C to 50 °C (-14 °F to 122 °F). Humidity: 0% to 90% (non-condensing)
• Storage Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing)
• Installation Height




  2m

• Approval
• EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• RF




  CE-RED: EN 305550-2 V1.2.1, EN 300328 V2.2.2, EN 301489-1 V2.2.3, EN 301489-52 V1.2.1, EN 301489-17 V3.2.4, EN IEC 62311:2020

• Safety




  CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016,

  CE-LVD: EN 61010-1: 2010+A1: 2019

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• Protection




  IP54: IEC 60529: 1989+A1: 1999+A2: 2013
