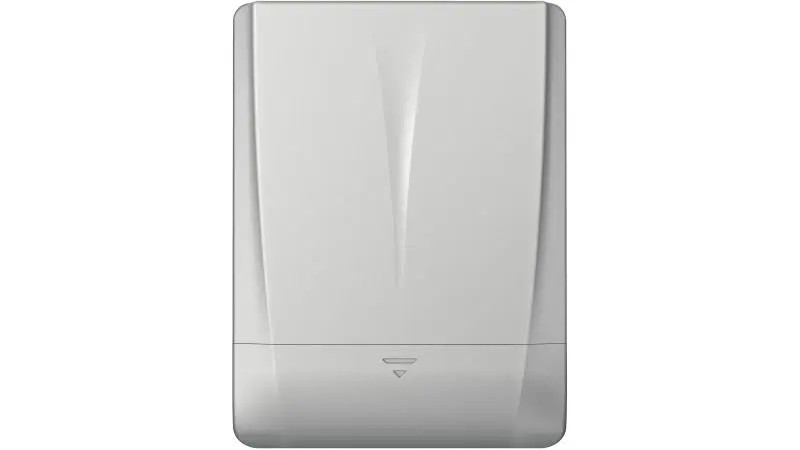

Senzor HikVision pentru detectie soc IK10 DS-PDSKM-VG3

Descriere

IK10

Caracteristica IK10 este un standard ce arata ca o camera poate suporta o energie de impact de pana la 20J. Acest standard de protectie protejeaza camera de vandalism.

• Detection Performance
• Detection MethodShock Sensor
• Detection RangeUp to 5m Radius
• Sensitivity8 Levels by DIP Switch

• Feature
• Digital ProcessingSupport
• Tamper ProtectionFront;Rear
• Rapid Temperature Rise DetectionSupport
• Displacement DetectionSupport

• Interface
• Alarm OutputNormally Closed
• LED IndicatorBlue(Alarm),Red(Noise Indication)

• Transmission
• Transmission MethodWired

• Electrical Characteristics
• Power Supply9 to16 VDC
• Typical Voltage12 V
• Power Consumption

  Maximum current：17mA @12VDC

  Quiescent current：17mA @12VDC

• General
• Operation Temperature-40 °C to 70 °C (-40 °F to 158 °F)
• Storage Temperature-50 °C to 70 °C (-58 °F to 158 °F)
• Operation Humidity10% to 90%
• Shell MaterialDie-cast metal
• IK RateIK10
• Dimension(WxHxD)60mm×80mm×19.5mm
• Weight226g
• Application ScenarioIndoor
