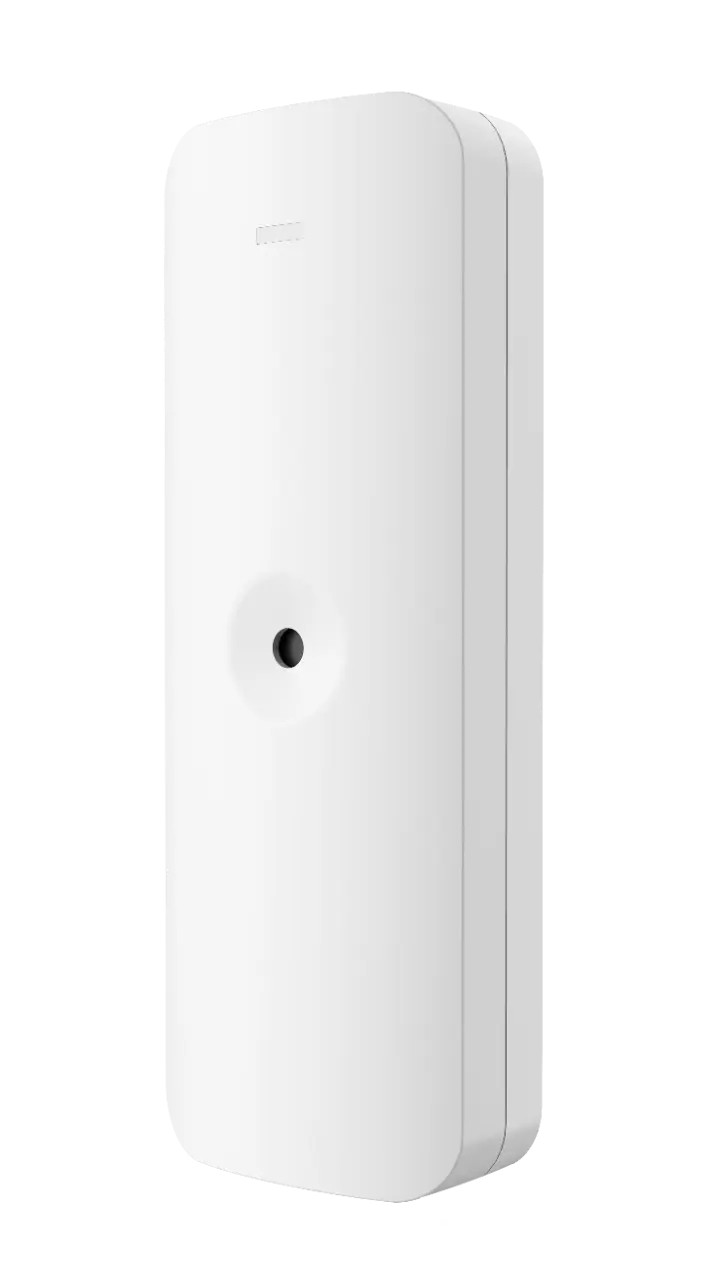

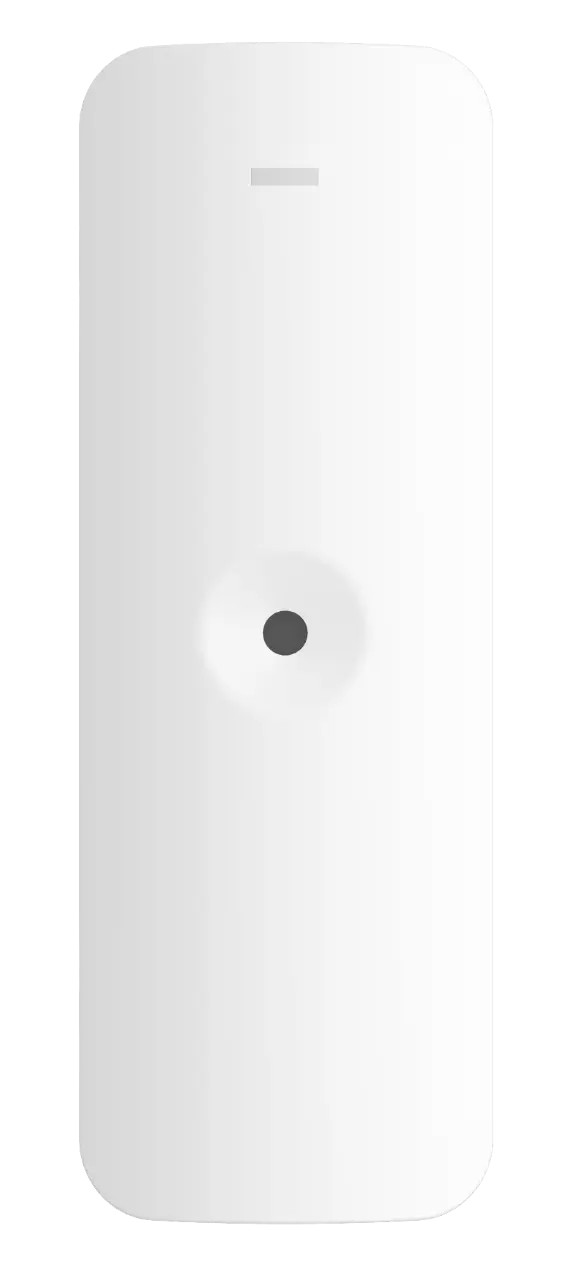

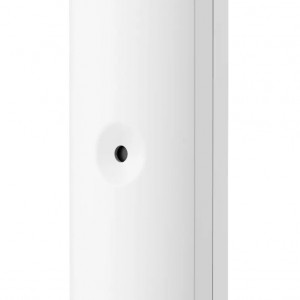

Senzor HikVision pentru detectie geam spart DS-PDBG8-EG2

Descriere

• Detection Performance
• Detection MethodAcoustic Sensor
• Detection Range8m
• Detection Angle120°
• Glass Break SensitivityPotentiometer Adjustment
• Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
• Glass Thickness2.4mm to 6.4mm
• Glass Size0.3m x 0.3m to 3m x 3m

• Feature
• Digital ProcessingSupport
• Tamper ProtectionFront

• Interface
• Alarm OutputNormally Closed
• LED IndicatorRed(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)

• Transmission
• Transmission MethodWired

• Electrical Characteristics
• Power Supply9-16 VDC
• Typical Voltage12V
• Power Consumption25mA

• General
• Operation Temperature-10°C to 55°C (14°F to 131°F)
• Storage Temperature-20°C to 60°C (-4°F to 140°F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)38.8 mm × 107 mm × 22.5 mm
• Weight49.5g
• Mounting MethodWall;Ceiling
• Application ScenarioIndoor
