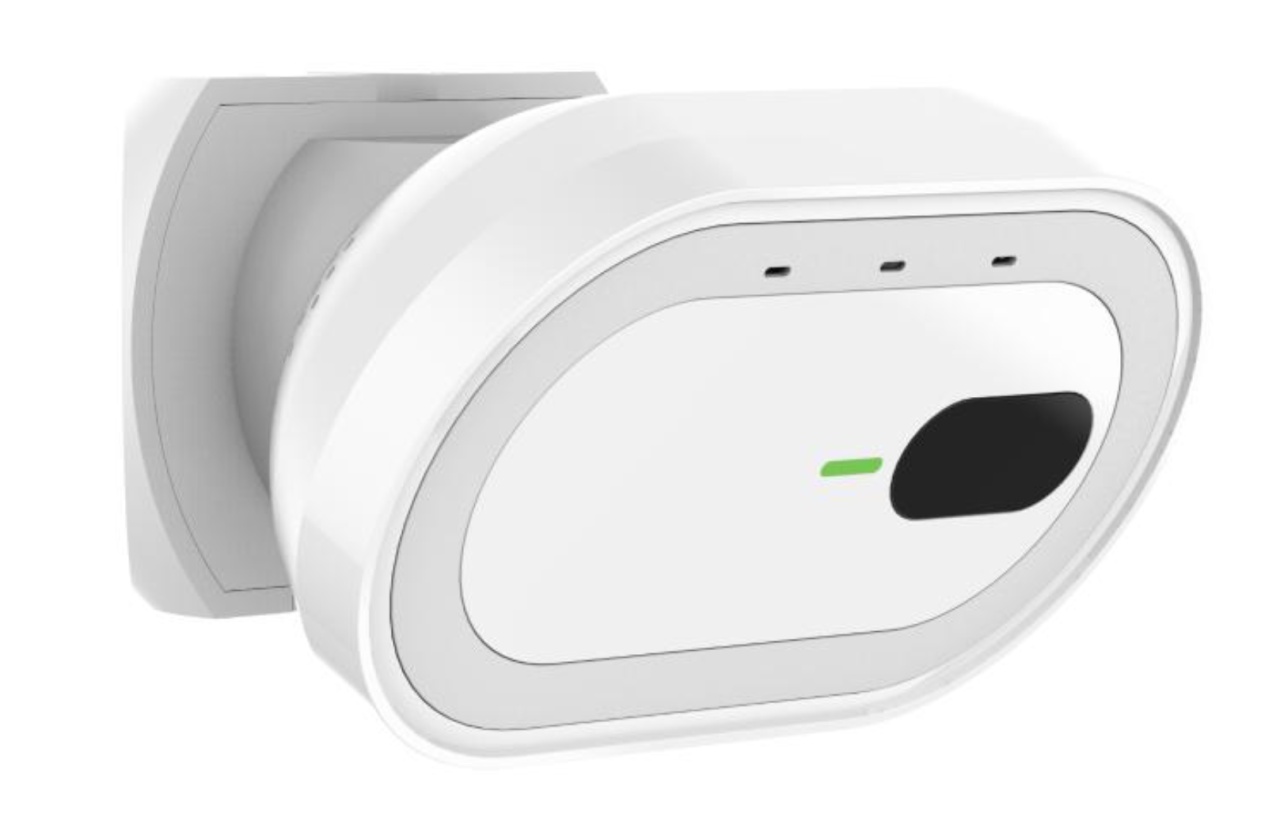

Senzor de prezenta cu detectie termica Hikvision HM-TD1018-1/QR

Descriere

Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 160 × 120
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD <50 mK (25°C, F#=1.1)
Focal Length 1.3 mm
Field of View 90.0° (H)x65.2° (V)
Min. Focusing Distance 0.01 m
Aperture F1.0
Video and Audio
Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Video Compression
H.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support
Baseline/Main/High Profile
Network
Protocols IPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage
API
ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video
Interface (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE
802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL
Web Browser Internet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+
Interface
Alarm Output 1, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload
Audio Input Built-In Mic
Audio Output Built-In Speaker
Communication Interface 1, RS-485 interface (half duplex)
Reset Key 1 reset button built in the motherboard
Radar
Working Frequency Range 60GHz ~64GHz
Modulation Waveform FMCW
Capture Distance 0.3 m-4m
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
DC 12 V（±20%）：0.5 A, max. 5W
PoE (802.3af)：36 V to 57 V, 0.17 A to 0.11 A, max. 6W
Working Temperature/Humidity
Temperature: -20°C to 50°C (-4°F to 122°F)
Humidity: 95% or less
Protection Level IP40
Dimensions 130mm*102mm*75mm
Weight 0.38kg (0.84 lb)
Mount Corner Mount
Certificate
EMC EN55032
