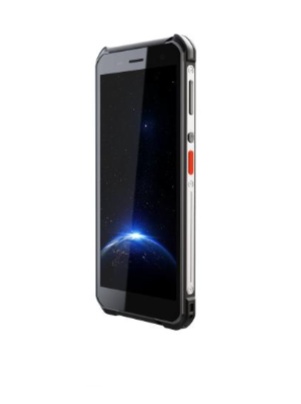

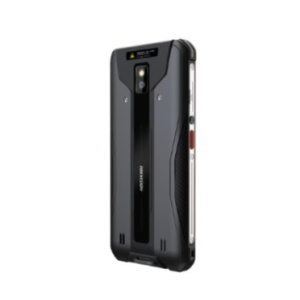

Scanner PDA, Hikvision DS-MDT201/64G/GLE

Descriere

• Camera
• Image Sensor

  Front camera: 5 MP; Fix-focus

  Rear camera: 13 MP; Auto-focus

• Max. Resolution1920 × 1080
• Flashing LightSupported
• Zoom4x Digital

• Lens
• Focal Length

  Front camera: 2.23 mm

  Rear camera: 3.44 mm

• FOV

  Front camera: Horizontal FOV: 61.3°, Vertical FOV: 46°

  Rear camera: Horizontal FOV: 67.9°, Vertical FOV: 53.7°

• Aperture

  Lens 1: F2.2

  Lens 2: F2.2

• Network and Connection
• Wi-Fi Working ModeSTATION;AP

• Screen
• Screen Size5.5"
• Screen TypeIPS; Capacitive touch panel; multi-touch
• Resolution720 × 1440

• Storage
• CPU8cores,2.0GHz
• RAM4 GB
• ROM64GB
• Extended Storage1 TF card (Max. 256 GB)

• Wireless Network
• Cellular Network

  FDD -LTE: B1/B3/B8

  TDD -LTE: B38/B39/B40/B41

• Wi-Fi Protocol802.11 a/b/g/n/ac
• Wi-Fi Frequency Band2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
• BluetoothBT5.0
• Positioning ModeGPS
• NFCWorking Frequency: 13.56 MHzProtocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.Label Standard: M1 card (S50, S70), CPU card, NFC label, etc.

• Interface
• ButtonSide Keys Volume+,Volume-,Left Scan Key, Right Scan Key,Power Button,Function Key
• SIM CardOnly available for models with /GLE /5G:2 (Nano-SIM)
• Charging InterfaceType-C
• USBUSB 2.0
• Fingerprint ModuleNot supported

• General
• Operating SystemAndroid 10.0
• Dimension157 mm × 75 mm × 14 mm (6.2" × 3.0" × 0.6")
• Weight240 g (0.5 lb.)
• Power5 VDC, 2.0 A, max. 10 W
• ClientMDM
• OCR支持;不支持
• Vibration MotorSupported
• MICSupported
• Speaker1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 103dB (10 cm)
• GyroscopeSupported
• G-sensorSupported
• Distance SensorSupported
• Light SensorSupported
• Drop Specifications1.5 m
• SealingIP68
• Operating Condition-10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
• Electro Static Discharge (ESD)±15KV air discharge

• Battery
• Battery TypeLithium-ion battery, integral
• Capacity4900 mAh
• Charging Time≤ 4 h
• Battery DurationStandby Time > 500h

• Approval
• RFEN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
• EMCCE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
• SafetyCB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
• EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• ProtectionIP68: IEC 60529-2013, MIL STD 810G
