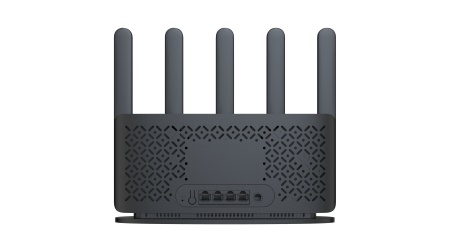

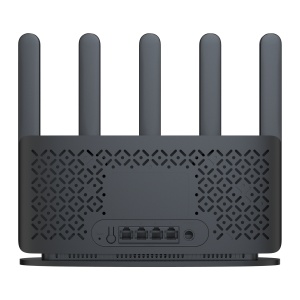

Router Wi-Fi Hikvision DS-3WR30X-V, Wi-Fi 6, 3000 Mbps, dual band 2.4/5 GHz, MU-MIMO, OFDMA, Beamforming, 1 WAN + 3 LAN Gigabit, 5 antene, MESH, parental control, VPN, WPA2-PSK
Descriere
- Product Dimensions (W × H × D)245 mm x 214 mm x 50 mm
- Package Dimensions (W × H × D)390mm*310mm*54mm
- Net Weight0.4kg
- Gross Weight0.94kg
- Packing List
3000Mbps Wi-Fi6 Router x 1
Power Supply Adaptor × 1
CAT5e Network Cable × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity5% to 95% RH non-condensing
- Installation ModeDesk-Mounted
- Wireless Standard
IEEE 802.11a/n/ac/ax @5GHz
IEEE 802.11b/g/n/ax @2.4GHz
- Working Frequency Band2.4 GHz，5 GHz
- Wireless Range
Up to 1506 ft²/140 m²
（Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials）
- Max. Connections320
- Recommended Connections60
- Transmitting Power
CE:
＜20dBm(2.4GHz)
＜23dBm(5GHz)
- Wireless Features
MU-MIMO supported
Beamforming supported
OFDMA Supported
- Antenna5 high gain antennas
- Antenna Gain
2.4G: 4dBi
5G: 5dBi
- Receiving Sensitivity
5 GHz：
-88.5 dBm@HT80-MCS0
-63 dBm@HT80-MCS9
2.4GHz：
-92.5 dBm@HT40-MCS0
-74 dBm@HT40-MCS7
- Max. Wi-Fi Speed
≤ 3000 Mbps
5GHz: 2402Mbps
2.4GHz: 574Mbps

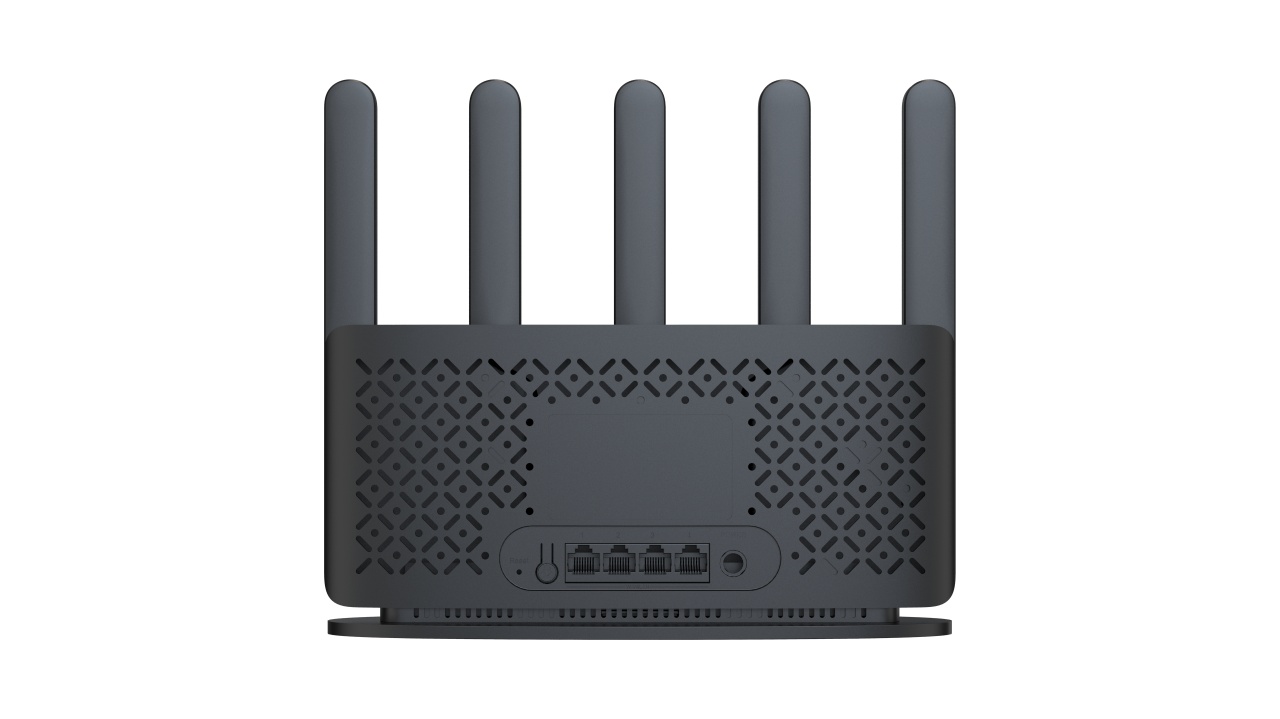

- Network Interface1 × 10/100/1000 Mbps Adaptive WAN Port,3 × 10/100/1000 Mbps Adaptive LAN Port
- LED IndicatorLED indicator
- ButtonReset button, WPS/MESH Button
- RAM256MB DDR3
- ROM128M nand
- Power Supply MethodPower Supply Adapter
- Power SpecificationsDC 12 V, 1 A
- Max. Power Consumption≤15.495W
- Operating Mode
Router Mode
Wireless Extender Mode
Access Point Mode
- WAN Mode
DHCP
Static IP
PPPOE
- IP Version
IPv4
IPv6
- Parental Control
Speed Limit
Internet Access Period
Filter URL
Parental Control
Custom Profiles
- Firewall
Forbid UDP flood attack
Forbid TCP SYNC flood attack
Forbid ICMP flood attack
- DDNSOray
- VPN
PPTP Client
L2TP Client
- NAT Forwarding
Port Mapping
DMZ
UPnP
- OthersVLAN/IPTV,WAN Self-Adaption,Quick Diagnosis,WIFI Optimization
- MESHHikvision Mesh
- Security ModeWPA2-PSK,WPA/WPA2-PSK supported
- Security Mechanism
Support fast and secure WPS connection
Support hiding wireless network name
Support controlling terminal network connection
Support firewalls
Login Authentication
- Management Method
Web Control: PC, mobile
App Control: HPP, HC
TR069(TR098/TR181)
- Upgrade
Web Upgarde
App Cloud Upgrade
Auto Upgrade
- System LogSystem log
- Roaming802.11k/v
