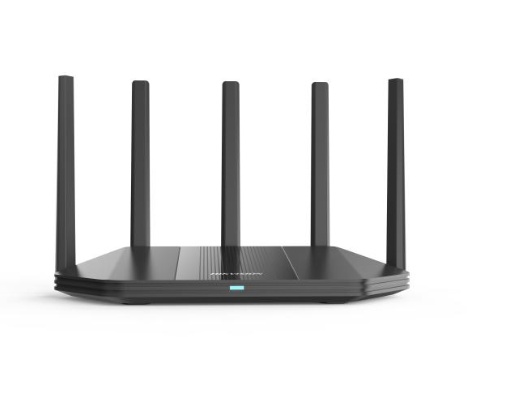

Router 3000m, WiFi 6, Hikvision DS-3WR30X
Descriere
- General
- Product Dimension (W × H × D)281.7 mm × 145.0 mm × 204.1 mm
- Package Dimension (W × H × D)365 mm × 340 mm × 73 mm
- Net Weight0.40 kg
- Packing List
3000Mbps Wi-Fi6 Router x 1
Power Supply Adaptor × 1
CAT5e Network Cable × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity5% to 95% RH non-condensing
- Installation ModeDesktop installation
- Max. Power Consumption≤12 W
- Gross Weight0.790 kg
- Wireless Parameter
- Data Rate
≤ 3000 Mbps
5GHz: 2402Mbps
2.4GHz: 574Mbps
- Wireless Standard
IEEE 802.11a/n/ac/ax @5GHz
IEEE 802.11b/g/n/ax @2.4GHz
- Transmitting Power
CE:
＜20dBm(2.4GHz)
＜23dBm(5GHz)
- Wireless Performance
MU-MIMO supported
TxBeamforming supported
- Receiving Sensitivity
5GHz:
-89dBm@HE80-MCS0
-60dBm@HE80-MCS11
2.4GHz:
-93dBm@HT40-MCS0
-73dBm@HT40-MCS7
- Antenna5 high gain antennas
- Hardware Parameter
- Network Interface
1 × 10/100/1000 Mbps Adaptive WAN Port
3 × 10/100/1000 Mbps Adaptive LAN Ports
- LED IndicatorLED indicator
- ResetReset button
- Power Supply MethodPower Supply Adapter
- Power SpecificationsDC 12 V, 1 A
- Software Function
- Application function
Routing Mode, Wireless Relay Mode, Wired Bridge Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported
Daylight Saving Time supported
VLAN,
WAN Self-Adaption
IPv6
Time Synchronization
Quick Diagnosis
PPPoE
DHCP
Support accessing the Internet through static IP mode
- Security ModeWPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE supported
- Security Mechanism
Support fast and secure WPS connection
Support hiding wireless network name
Support controlling terminal network connection
Support firewalls
Login Authentication
VPN Client
Port Mapping
DMZ
UPNP
- Management MethodWeb, HPP, HC
- UpgradeWeb, App Update and Upgrade
- System LogSystem log
