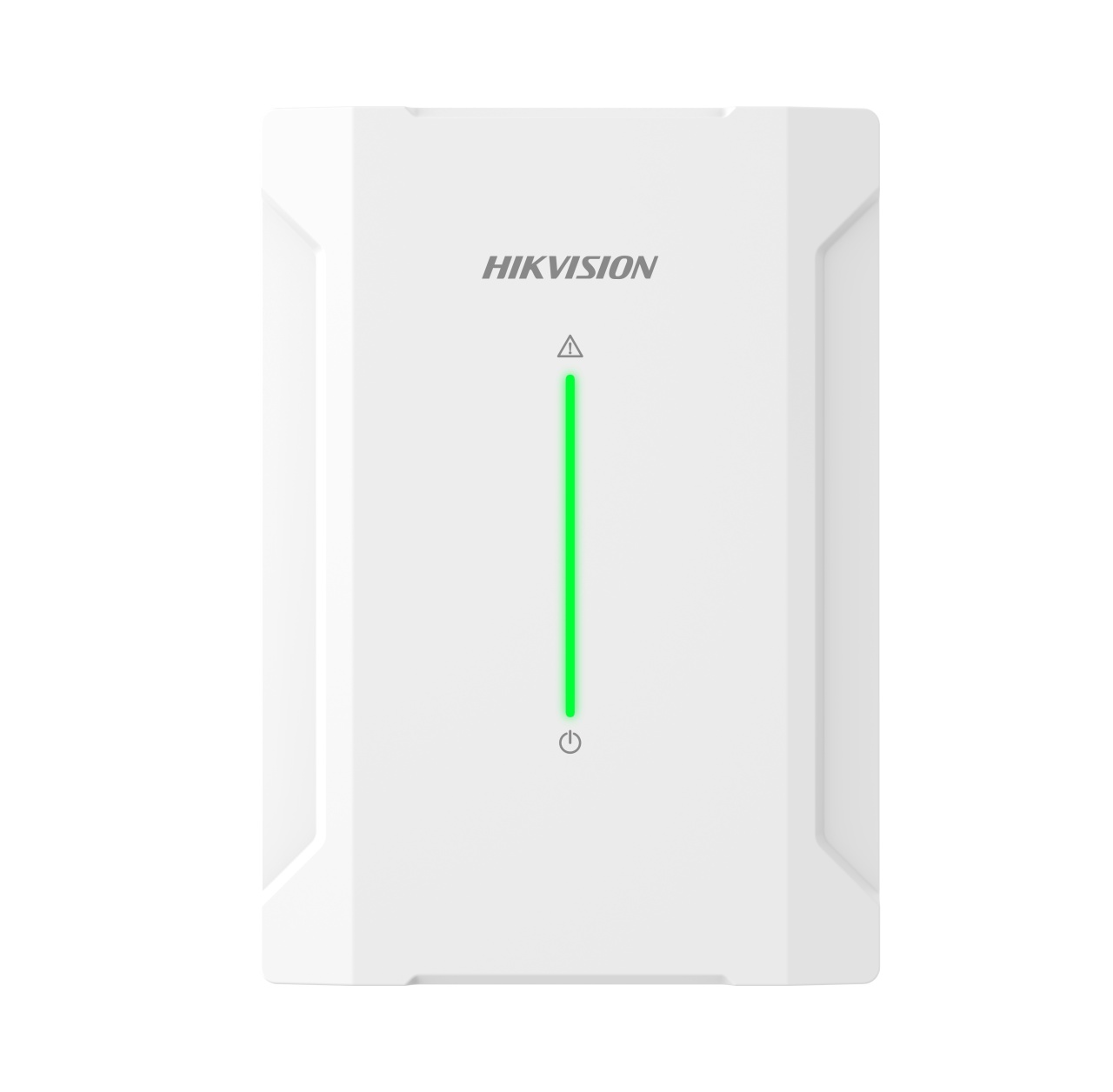

Releu Expander Hikvision DS-PM501Z8T4, 8 intrari detectie, 4 iesiri PGM programabile, iesire AUX alimentare detectoare, bus extender RS-485, compatibil detectoare cablate 3rd party, montaj perete interior
139,55 RON
(TVA inclus)
115,33 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Inputs(Zones)
- Max. Zones8
- On-board zones8
- Outputs
- Max. outputs4
- On-board PGM outputs4 (Z5~Z8 programmable)
- Bus interconnection
- Bus-extenderYes
- Bus technologyHalf-Duplex RS-485
- Bus wiring4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)
- Power supply - general
- Input voltage12 VDC nominal (9~16 VDC), powered by bus
- Quiescent current80 mA @12VDC
- Max. current150 mA @12VDC
- Power supply - auxiliary power output
- Output capacity12VDC nominal (9~16 VDC), 500mA
- Output protection500 mA PPTC
- PGM output
- Output voltage0 VDC with switched (NPN output)
- Max. current200 mA per output
- Environmental
- Operating temperature-10°C to 50°C (14°F to 122°F), indoor use only
- Storage temperature-20°C to 60°C (-4°F to 140°F)
- Relative humidity10% ~ 90% non-condensing
- Physical
- Dimension (W × H × D)110 × 155 × 31 mm
- 225 g
- Tamper-proofFront and Rear
- Installation methodWall mount
- Compliance
- Electrical conformityCE, CB
- EN 50131Security Grade 2, Environmental Class II
Detalii
SKU
DS-PM501Z8T4
EAN
8758
Categorii
Greutate
0.03 kg
Brand
Producator
HikVision
