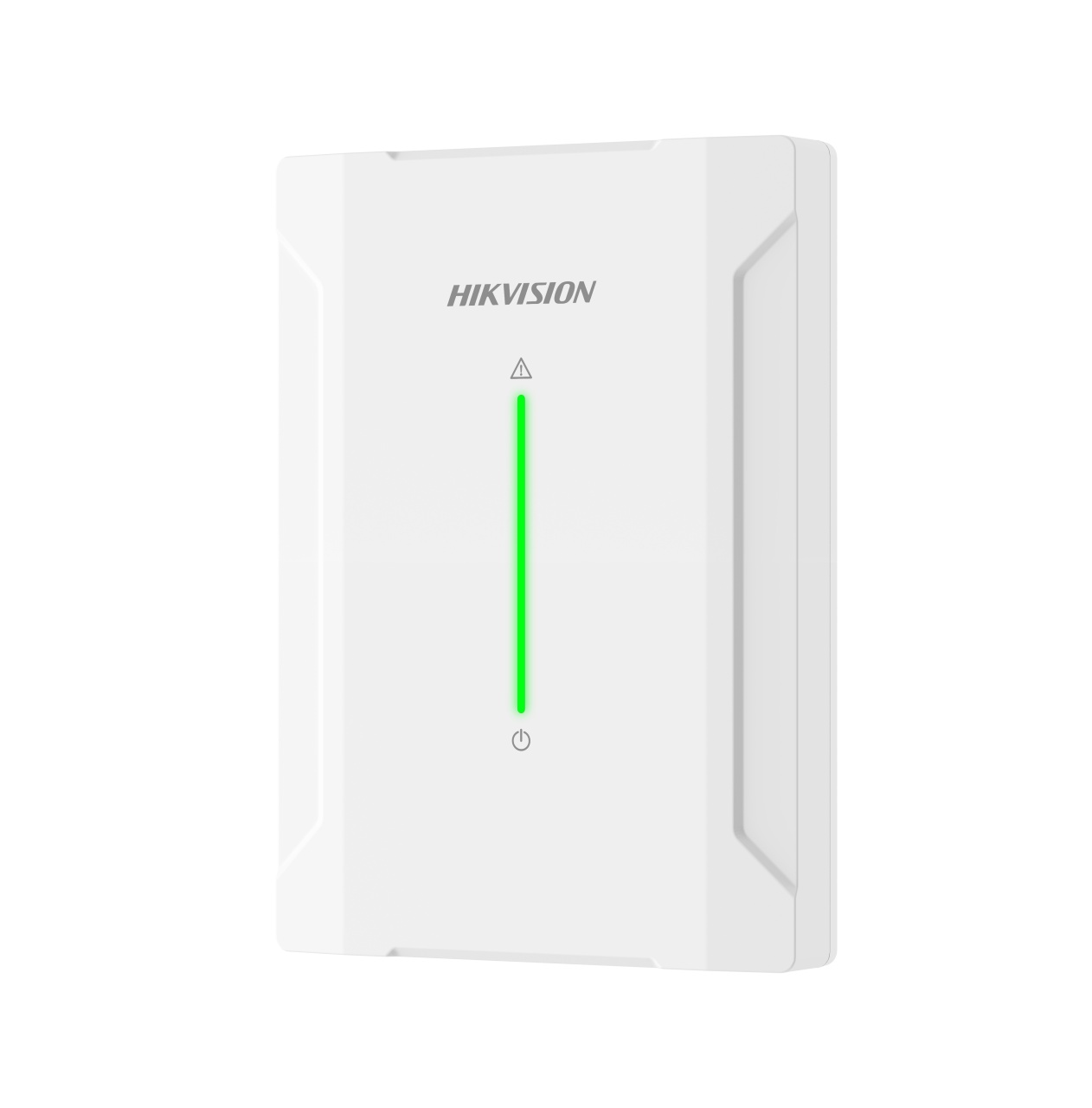

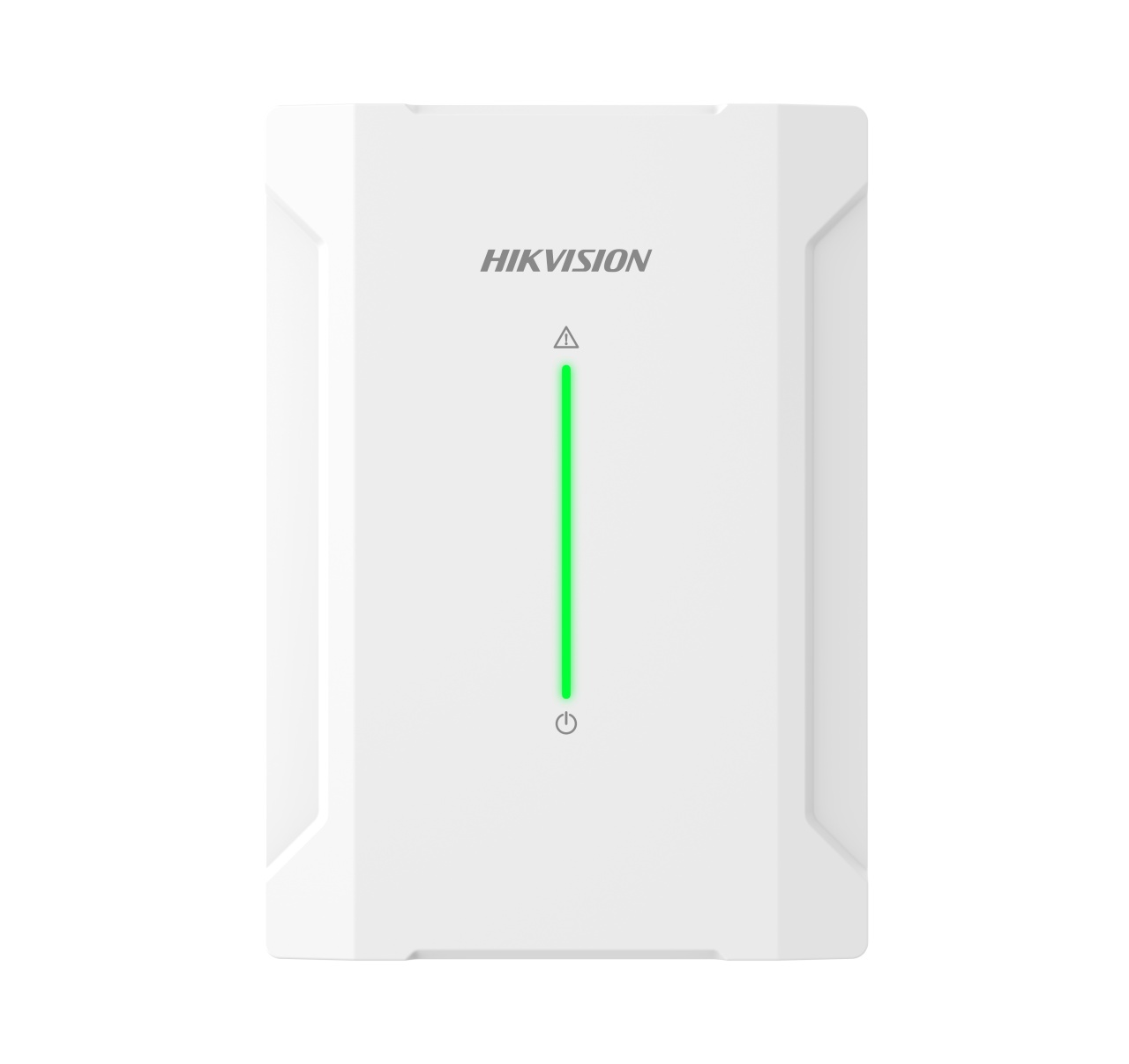

Releu Expander de iesire Hikvision DS-PM501R4, wired, 4 iesiri releu SPDT 16A, bus extender RS‑485, alimentare 12VDC, tamper frontal si spate, montaj perete interior, compatibil AX Hybrid Pro

Descriere

• Max. outputs4
• On-board relay outputs4

• Bus-extenderYes
• Bus technologyHalf-Duplex RS-485
• Bus wiring4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²)

• Input voltage12 VDC nominal (9~16 VDC), powered by bus
• Quiescent current200 mA @12VDC
• Max. current300 mA @12VDC

• Relay outputSPDT relay, 16A 24VDC, 16A 250VAC

• Operating temperature-10°C to 50°C (14°F to 122°F), indoor use only
• Storage temperature-20°C to 60°C (-4°F to 140°F)
• Relative humidity10% ~ 90% non-condensing

• Dimension (W × H × D)110 × 155 × 31 mm
• 272 g
• Tamper-proofFront and Rear
• Installation methodWall mount

• Electrical conformityCE, CB
• EN 50131Security Grade 2, Environmental Class II
