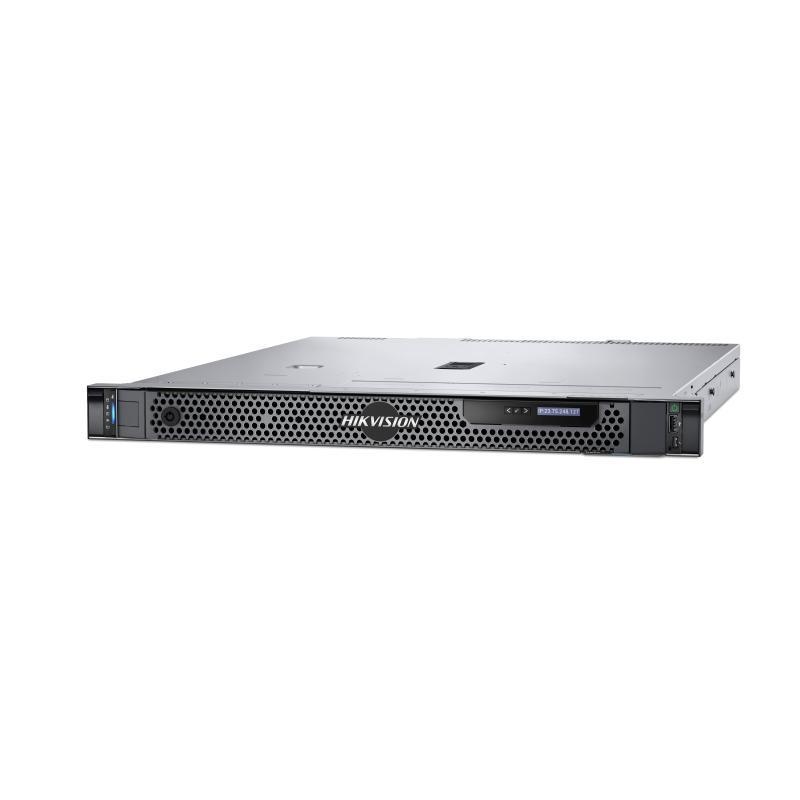

Rack pentru server Hikvision HikCentral-P-VSS-Base/HW/300Ch(B)

Descriere

• Devices and Resources
• Video Management300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
• Access ControlsNot included; can be expanded into 1024 (Including Doors and Outdoor Station)
• Indoor StationNot included; can be expanded into 5000
• ANPR CamerasNot included; can be expanded into 1024ch
• Lanes of Entrance & ExitNot included, can be expanded into 40
• Cameras with Face Capture FunctionNot included; can be expanded into 3000ch
• Alarm PanelNot included; can be expanded into 1024
• Smart WallsNot included; can be expanded into：Smart Walls：32；Decoding devices：32
• AttendanceNot included, can be expanded by extra license

• Hardware Specifications
• CPUE-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
• Memory

  Standard Config：1 × 16GB UDIMM，3200MT/s

  Scalability：4 × 128GB UDIMM

• Hard Disks

  Standard Config：2×1TB 3.5 inch SATA HDD

  Scalability：2×22TB 3.5 inch SATA/SAS HDD

• Storage Controller

  Standard Config：PERC H355 adaptor LP (support RAID 0/1)

  Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache

• Supported Operating SystemsWinSvr2019 multilingual version pre-installed
• PCIe SlotsTwo Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots

• Management
• Remote ManageiDrac9 Enterprise
• OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
• Integrations and Connections

  Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;

  Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

• SecuritySupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• Port
• USB 3.00（Front）+1（Rear）
• USB 2.01（Front）+1（Rear）
• Ethernet Port2 x LAN 10/100/1000
• VGA1
• iDRAC Direct (Micro-AB USB) Port1
• iDRAC Ethernet Port1
• Manager Port1

• General
• Net Weight12.2 kg (26.9 lb)
• Gross Weight18.5 kg (40.79 lb)
• Dimension (W × H × D)482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
• Package Dimensions (W × H × D)595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')
• Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
• Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
• Operating Humidity8% to 80% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
• Form Factor1U Rack
