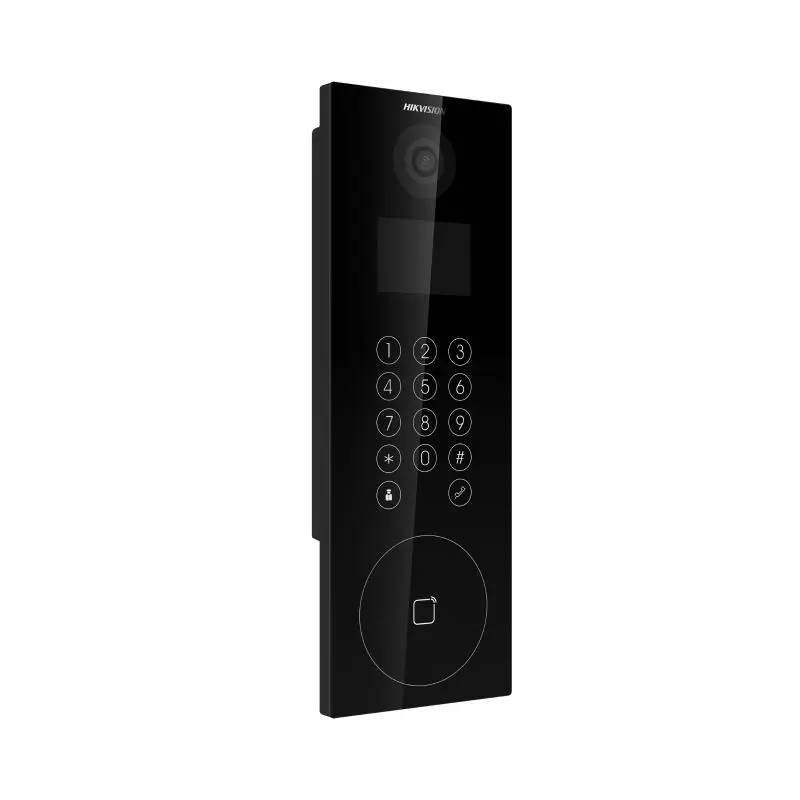

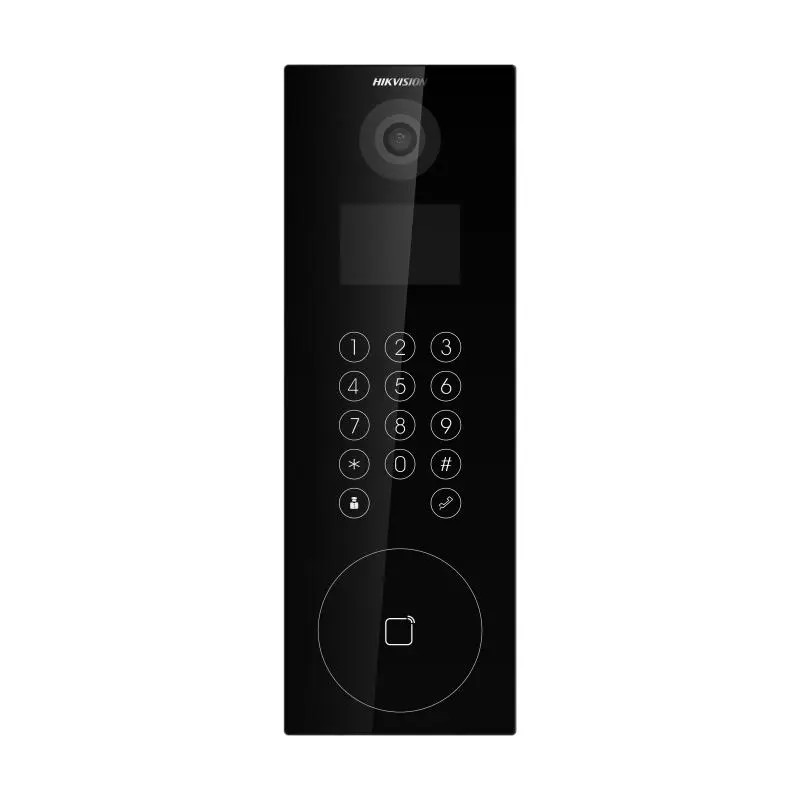

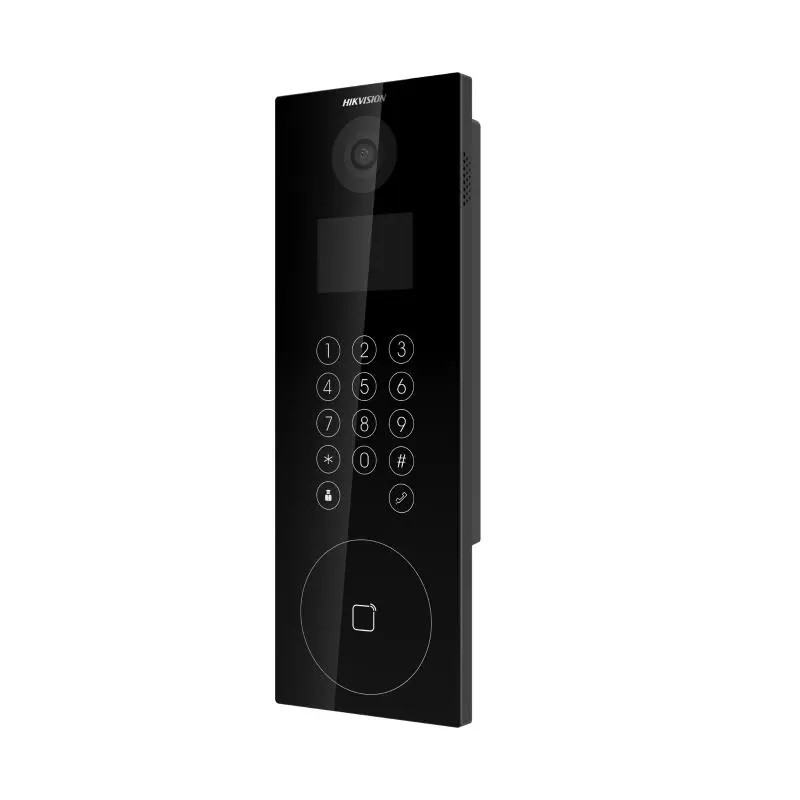

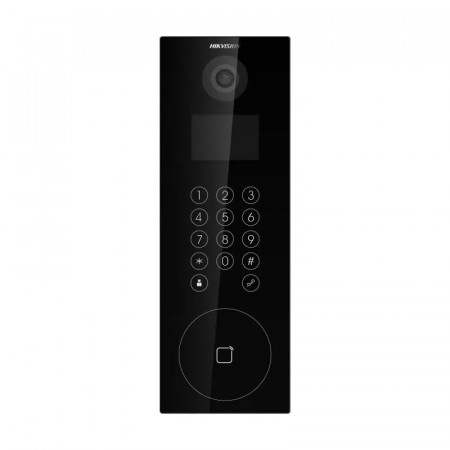

Post videointerfon HikVision de exterior pentru blocuri monitor LCD color 3.5-inch, rezolutie 480 × 320, camera video 2MP HD, unghi vizualizare: 120° DS-KD8103-E6

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• System Parameters
• Operation SystemLinux
• ROM4 GB
• RAM512 MB
• ProcessorEmbeded high performance processor

• Display Parameters
• Screen Size3.5-inch
• Operation Method/
• TipColorful LCD
• Resolution480 × 320

• Video Parameters
• Lens2 MP HD camera
• Resolution

  Main stream: 1920 × 1080p, 720p

  Sub stream: 640 × 480p

• FOVHorizontal: 72°, Vertical: 119°, Diagonal: 132°
• Wide Dynamic Range (WDR)Digital WDR/120 dB
• Supplement LightIR light, up to 3 m
• Video Compression StandardH.264

• Audio Parameters
• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711 U, G.711 A
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• User Capacity/
• Face Capacity/
• Card Capacity10000
• Linked Indoor Station Capacity500

• Network Parameters
• Network ProtocolTCP/IP, RTSP
• Wi-Fi/
• Bluetooth/
• 3G/4G/

• Authentication
• Card TypeM1 card

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive
• TAMPER1
• Exit Button2
• RS-4851 RS-485 (Half duplex, HIKVISION)
• USB/
• Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
• TF Card/
• Alarm Output2
• Lock Control2 relays, Max. 30 VDC, 2 A
• Door Contact Input2

• General
• Button14 touch buttons
• InstallationFlush mounting
• Indicator/
• Weight

  Net weight: 1.05 kg

  Gross weight: 2.166 kg

• Protective LevelIP65
• Working Temperature-40 °C to 55 °C (-40 °F to 135 °F)
• Working Humidity10% to 95% (no-condensing)
• Dimension (W × H × D)418 mm × 145 mm × 61 mm (16.46" × 5.71" × 2.40")
• Battery/
• Power Supply12 VDC, 1 A
• Application EnvironmentOutdoor
• Power Consumption≤ 10 W
• LanguageEnglish, Portuguese (Brazil), Russian, Spanish, French, Turkish, Vietnamese, Ukrainian
