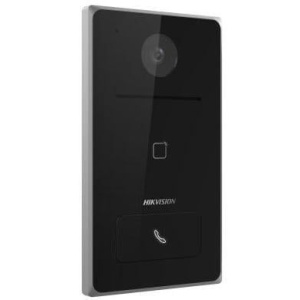

Post exterior HikVision Wi-Fi si control acces integrat montaj ingropat DS-KV6133-WME1/FLUSH

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Microfonul incorporat permite captarea audio din incinta supravegheata.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Motion detection

Detectia de miscare presupune analizarea diferentelor dintre doua imagini. Daca diferenta dintre cele doua imagini comparate trece de o anumita valoare data, este detectata miscarea si se declanseaza alarma setata.

Alegerea produselor MIFARE inseamna alegerea unei solutii care este deja disponibila in toate ramurile infrastructurii ,oferite de operatorii de servicii datorita costurilor reduse , flexibilitatii si controlul sporit asupra sistemului .Produsele MIFARE pot fi gestionate si implementate prin intermediul dispozitivelor mobile compatibile NFC.

• System parameters
• Operation systemLinux
• ROM32 MB
• RAM256 MB
• ProcessorEmbeded high performance processor

• Display parameters
• Screen size/
• Operation method/
• Type/
• Resolution/

• Video parameters
• Lens1
• Resolution

  Main stream: 1920 × 1080p，1280 × 720p

  Sub stream: 1280 × 720p，640 x 480p

• FOVHorizontal:129°,Vertical: 75°
• Wide dynamic range (WDR)Support 120 dB
• Supplement lightIR light, up to 2.5 m
• Video compression standardH.264

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG722.1、OPUS、G711U、G711A、G726 、AAC_LC、 AAC_LD
• Audio output1 built-in loudspeaker
• Audio compression bitrate16/32/64 Kps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• User capacity2000
• Face capacity/
• Card capacity10000

• Network parameters
• Network protocolTCP/IP, RSTP
• Wi-Fi2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/

• Device interfaces
• Alarm input4
• Network interface1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER1
• Exit button/
• RS-4851
• USB/
• Wiegand/
• TF card1(Reserved)
• Alarm output/
• Lock control1 relay, Max. 30 VDC 2 A
• Door contact input1
• Audio output1 external loudspeaker(Reversed)

• General
• Button1 physical button
• InstallationSurface mounting, Flush mounting
• Indicator2
• WeightNet weight: 0.190 kg Gross weight: 0.414 kg
• Protective levelIP65
• Working temperature-40 °C to 53 °C (-40 °F to 127.4 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension (W × H × D)181.6 mm × 103.6 mm × 29.5 mm (7.1" × 4.0" × 1.1")
• Battery/
• Application environmentOutdoor
• Power consumption＜ 10 W
• LanguageEnglish, Arabic, French (Europe), Russian, Spanish (Europe), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
