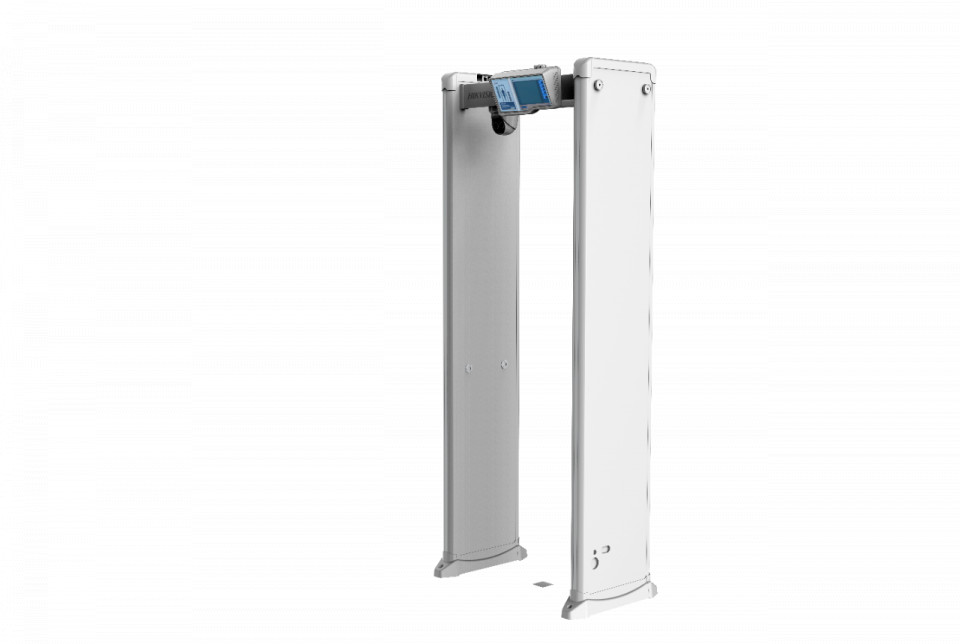

Poarta de securitate HikVision ISD-SMG318LT-F detectie metale 18 zone, masurare temperatura fara contact 0.5-1.5m, precizie ±0.5°C, camera termica 160x120 si IP 4MP, alerta febra, ecran LCD, statistici trafic, design modular

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Bi-spectrum

Este functia care permite vizualizarea in acelasi timp a imaginii normale cat si a celei din spectrul termic pentru o usoara identificare a persoanelor vizate .

Alegerea produselor MIFARE inseamna alegerea unei solutii care este deja disponibila in toate ramurile infrastructurii ,oferite de operatorii de servicii datorita costurilor reduse , flexibilitatii si controlul sporit asupra sistemului .Produsele MIFARE pot fi gestionate si implementate prin intermediul dispozitivelor mobile compatibile NFC.

Face detection

Prin aplicarea tehnologiei de detectare a fetei, camerele IP, pot detecta precis trasaturile faciale umane, le pot analiza si declansa alarma in cazul in care este setata una.

• Dimension Parameters
• Appearance And Dimension

  Detector dimension(without dome camera):2200 x 850 x 480mm (H x W xD)

  Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)

  Package dimension 2270 x 700 x230mm(H x W x D)

• Performance Parameters
• Power Supply110~240VAC，50-60Hz

• Communication Protocol
• Network Communication

  IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT

  P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour

• General Standard
• Working Temperature

  Speed dome: 5℃ to 40℃, ＜95% RH

  Walk-through detector: -20℃ to 85℃, 99%, RH

• Power Consumption<25W
• Protection Level

  Dome camera: IP66

  Walk-through detector: IP53

• 50Kg

• Thermal Imaging
• SensorVanadium oxide uncooled sensor
• Max. Resolution160× 120
• Pixel Interval17μm
• Response Waveband8 to 14μm
• Lens (Focal Length)3mm
• Field Of View50°×37.2°
• Min. Focusing Distance0.3m
• Pseudo Color15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue

• Visible Light
• Sensor4 MP 1/2.7" Progressive Scan CMOS
• Resolution2688×1520@25fps
• Min. Illuminance0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
• Focal Length4mm
• Field Angle84.0°×44.8°
• WDR Range120dB
• IR DistanceMax. 15 m

• Temperature Measurement
• Temperature Exception DetectionExpert mode: 10 points, 10 frame, 21 rules on each line
• Body Temperature MeasurementAI face detection, multi-target detection
• Measurement Range30 to 45℃
• Temperature AlarmAlarm triggered when the temperature is over the threshold
• Measurement Accuracy

  No black body:±0.5℃

  With black body: ±0.3℃

• Compression
• Video CompressionH.265/H.264/MJPEG
• H265Main Profile
• H264Baseline Profile / Main Profile / High Profile
• Video Bit Rate:32 Kbps to 8Mbps
• Video StandardG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate::64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
