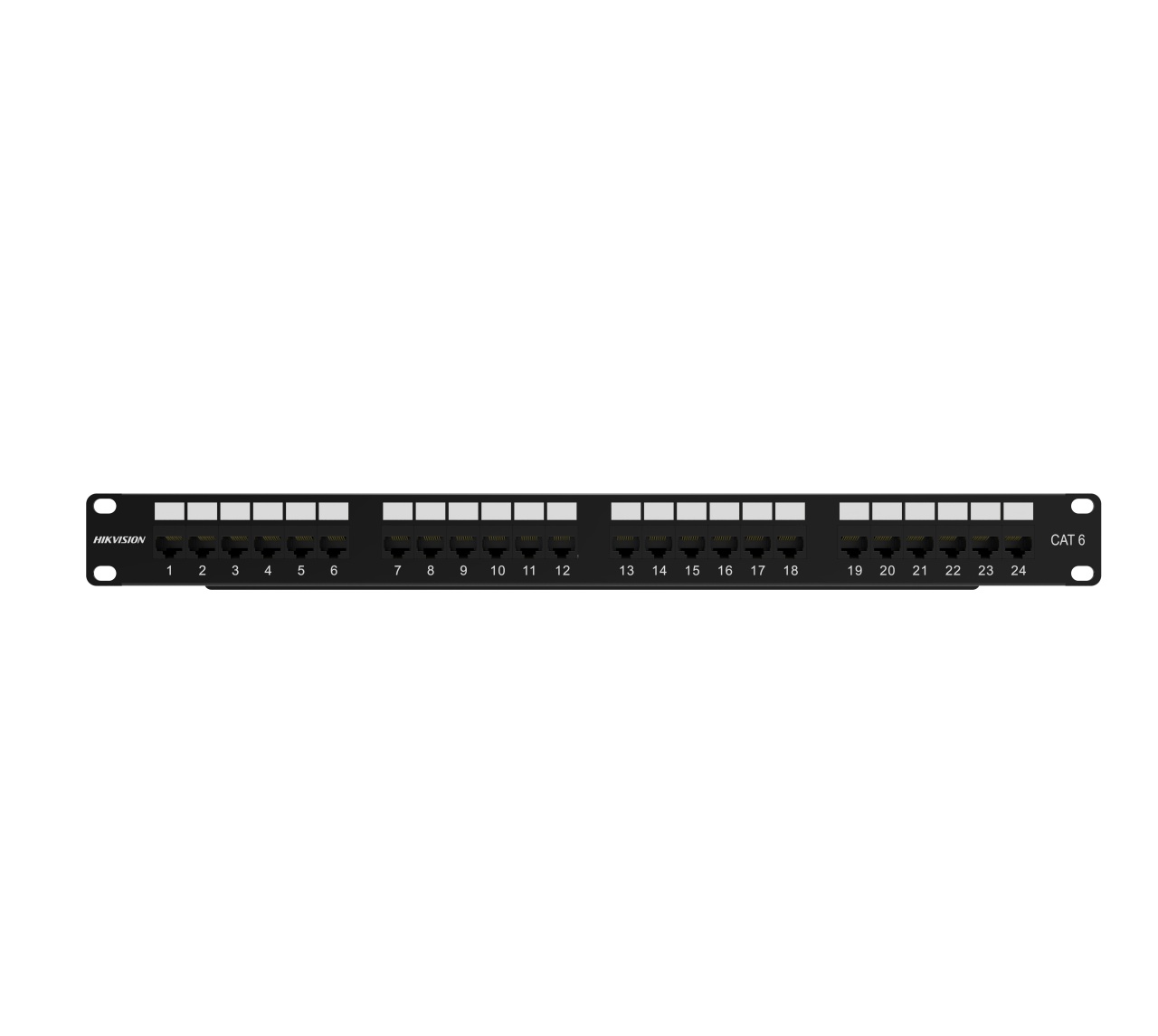

Panou cablare retea Cat6 HikVision DS-1CP6U24-1U, patch panel 1U, 24 porturi, suport TIA 568A/B, 250 MHz, 22-24 AWG, design Press-Fit ecologic, extractie frontala, instalare si mentenanta usoara
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- Category
- Product CategoryPatch Panel
- Fire resistance
- Fire resistanceUL 94 V-0
- General Specifications
- ColorBlack
- Conductor TypeSolid, Stranded
- Cable TypeUnshielded
- Rack TypeEIA 19 inch
- Rack Unit1
- ANSI/TIA Category6
- Termination TypeIDC
- Total Ports, quantity24
- Keystone quantity24
- WiringTIA 568A, TIA 568B
- Material Specifications
- Material Type
Panel：Cold-Rolled Steel
IDC：PC
Pin: Phosphor Bronze
Jack: PBT
- Termination Contact Plating50u inch gold
- Electrical Characteristics
- DC resistance≤ 20 mΩ
- Current Rating1.5 A @ 20 °C
- Dielectric Withstand Voltage, RMS, conductive surface1,000 Vac @ 60 s
- Dielectric Withstand Voltage, RMS, contact-to-contact1,000 Vac @ 60 s
- Insulation Resistance, minimum500 MΩ
- Mechanical Specifications
- Plug to Jack Mating Cycles≥ 750 times
- Dimensions
- Height44.00 mm
- Width482.60 mm
- Depth31.72 mm
- Depth（with bracket）92mm
- Compatible Conductor Gauge, solid22-24 AWG
- Compatible Conductor Gauge, stranded22-24 AWG
- Environmental Specifications
- Operating Temperature-10 °C to +60 °C
- Storage Temperature-40 °C to +68 °C
- Relative Humidity10%~90%
- Packaging and Weights
- Packaging TypeBox
- 830g
- Package dimension510 x 65 x 77 mm
- Packaging quantity1
- Accessory
- Accessory
Cable Tie: 24 pcs
Screw & nut: 4 sets
Tool: 1 pcs
Detalii
SKU
DS-1CP6U24-1U
EAN
8906
Categorii
Greutate
0.4 kg
Brand
Producator
HikVision
