Pachet videointerfon HikVision cu un singur releu si yala CISA gratuita INT05

Descriere

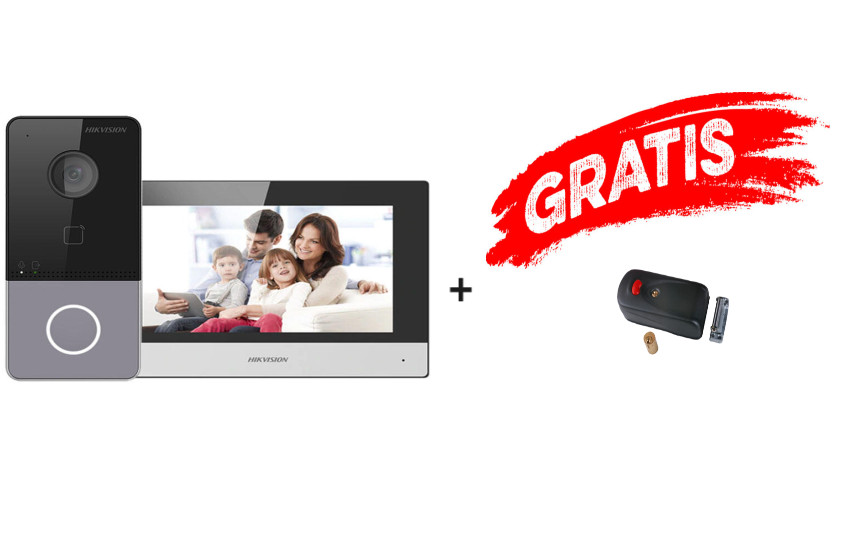

PACHETUL CONTINE UN KIT DE VIDEOINTERFON KIS603-P DE LA HIKVISION SI O YALA ELECTRICA CISA

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

Wide Temperature

Domeniul larg de functionare a camerei, ii permit acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%.

• Door Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Flash32 MB
• RAM128 MB

• Door Station/Video Parameters
• Camera2MP HD camera
• Night VisionLow illumination IR supplement mode:3 m
• Backlight CompensationSupport
• Digital Noise ReductionSupport
• WDRTrue WDR
• Field Of ViewHorizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion DetectionSupport
• Flash-Avoid Frequency50 Hz, 60 Hz

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps
• Audio IntercomTwo-way audio communication

• Door Station/Network Parameters
• Network ProtocolTCP/IP, RSTP
• Wired Network10/100 Mbps Ethernet

• Door Station/Device Interfaces
• RS-4851
• Alarm Input4
• Debugging Port1
• Grounding1
• TAMPER Switch1

• Door Station/General
• Power Consumption＜ 10 W
• Working Temperaturee -40° C to 53° C(-40° F to 127.4° F)
• Working Humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• InstallationSurface mounting
• Protection LevelIP65
• Indicator2
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC

• Indoor Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor Station/Display Parameters
• Display Screen7-inch colorful TFT screen
• Display Resolution1024 × 600
• Operation MethodCapacitive touch screen

• Indoor Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps

• Indoor Station/Network Parameters
• Wired Network10/100 Mbps self-adaptive
• Wireless NetworkWi-Fi 802.11 b/g/n
• ProtocolTCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

• Indoor Station/Device Interfaces
• RS-4851
• Alarm Input8-ch alarm inputs
• Relay Output2
• TF CardMax to 32 G, SD 2.0 or lower version

• Indoor Station/General
• Power Consumption≤ 6 W
• Working Temperature‘-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (L X W X H)

  200 mm × 140 mm × 15.1 mm (7.9" ×

  5.5 × 0.6\")"
