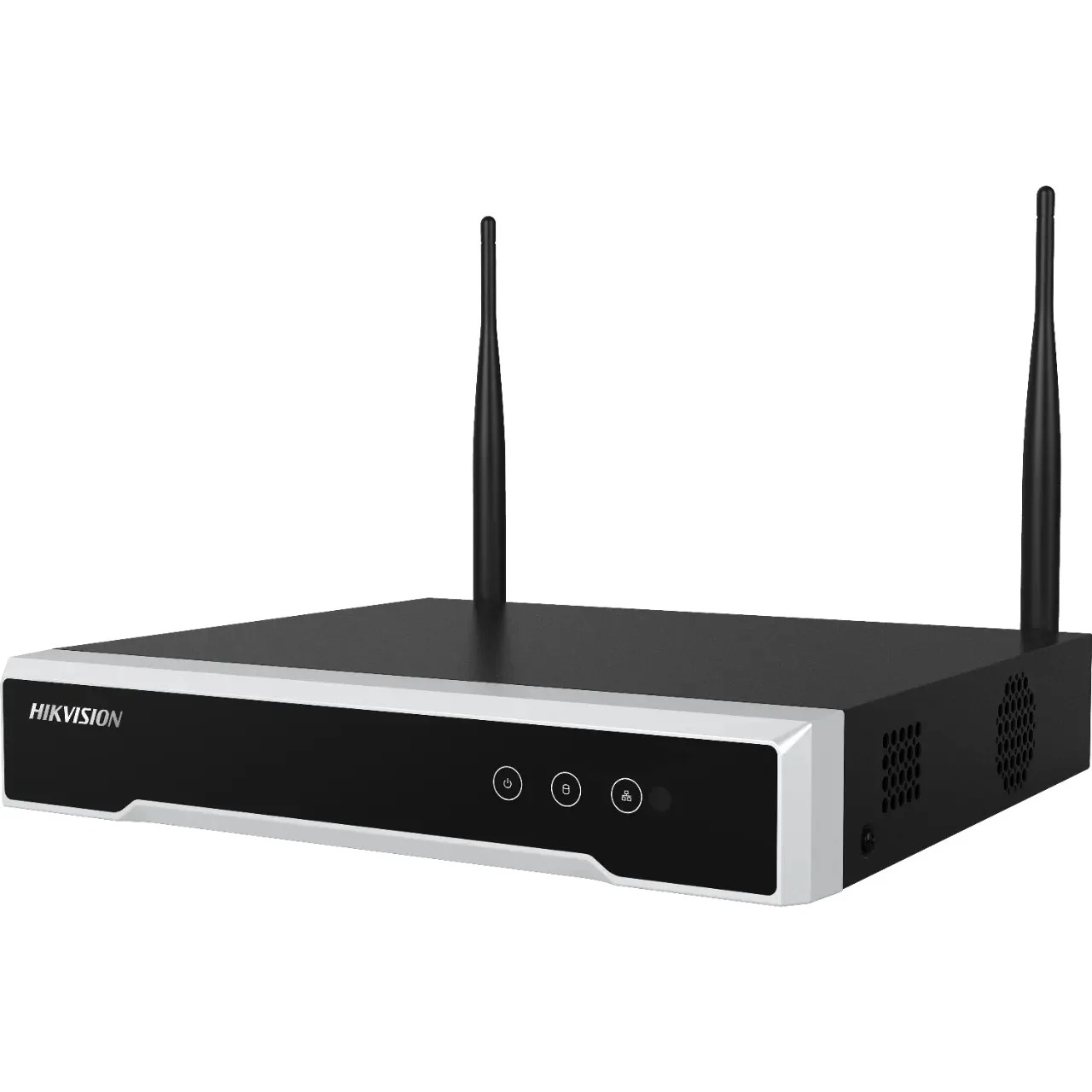

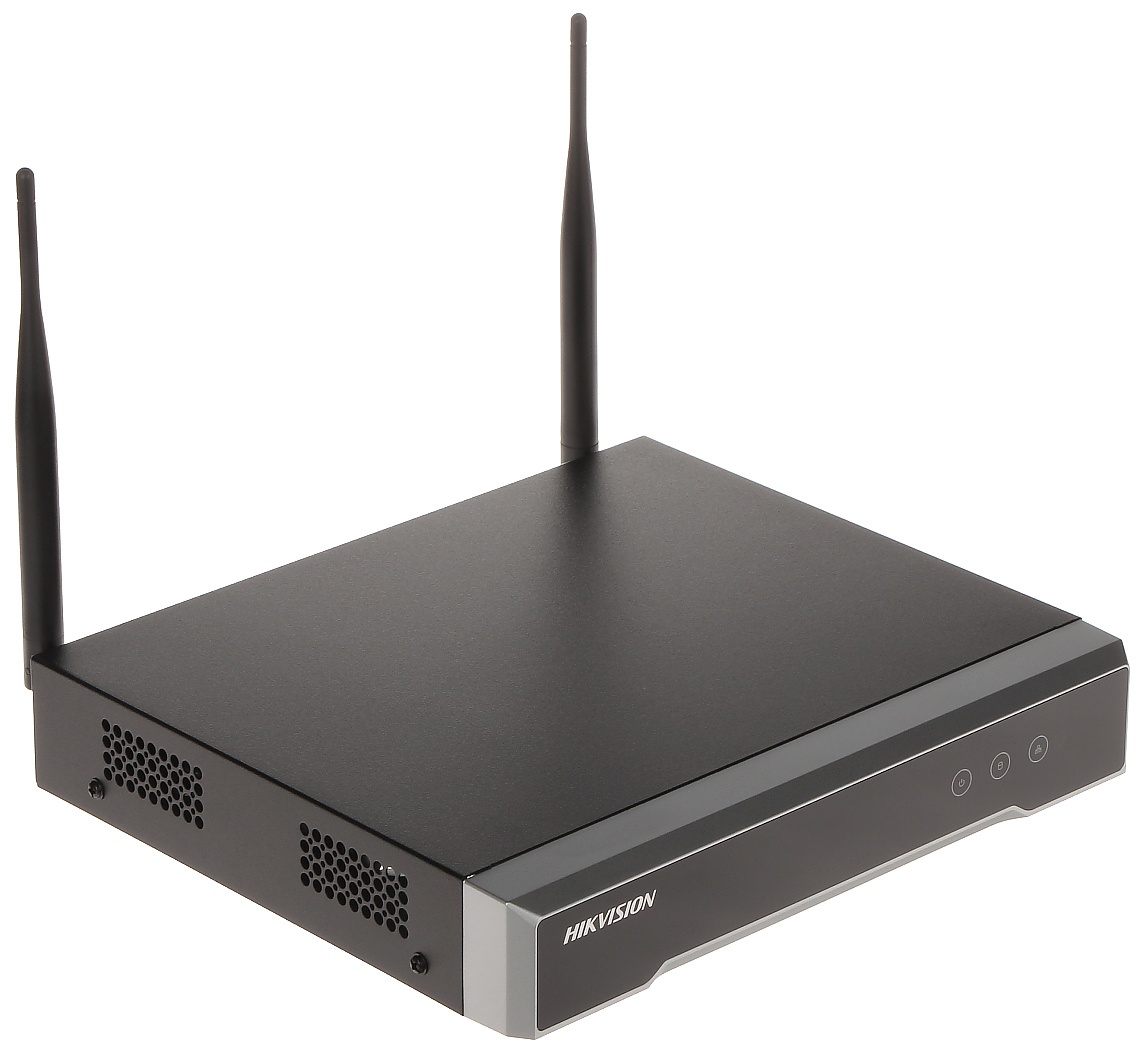

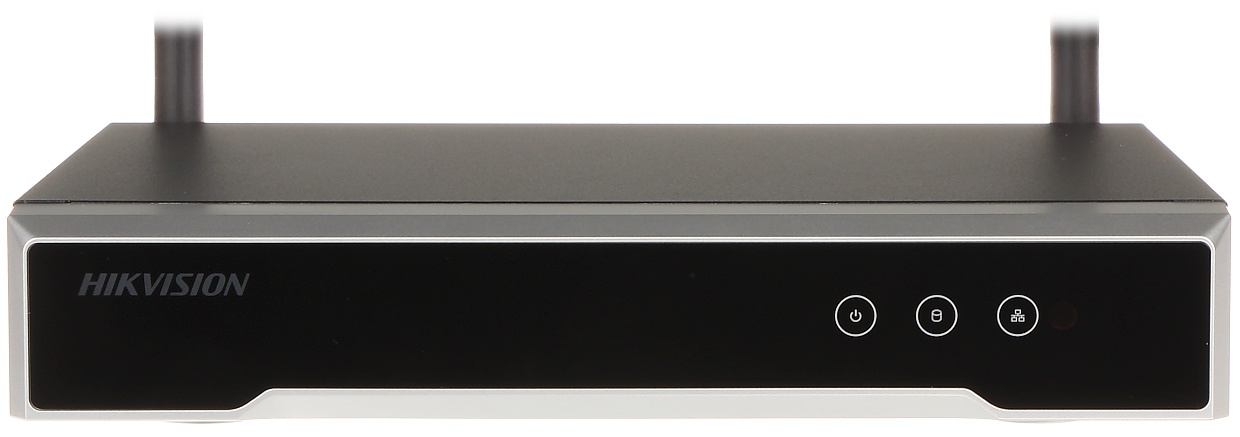

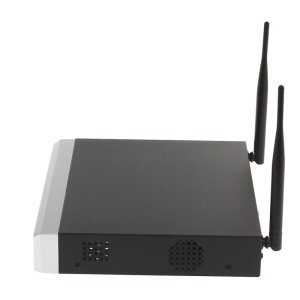

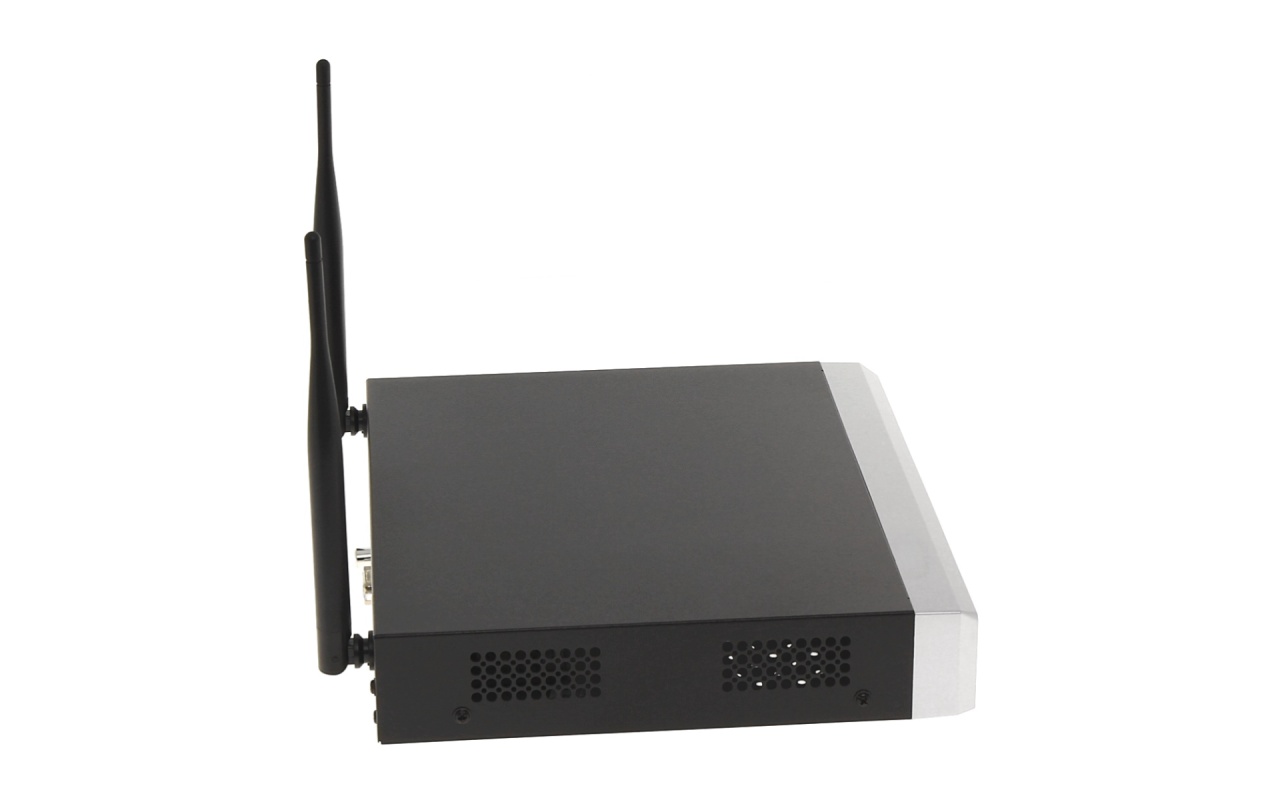

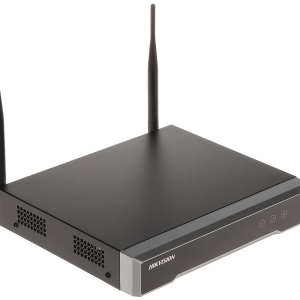

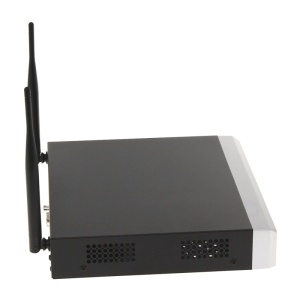

NVR WiFi Hikvision 4 canale DS-7104NI-K1/W/M(C)
Descriere
Un nou standard este necesar pentru a micsora dimensiunile fisierelor pe masura ce tehnologia avanseaza. Aici intra in actiune standardul H.265+. Acest standard este conceput sa utilizeze o latime de banda mult mai mica multumita tehnicilor de encoding avansate dar si un model de encoding/decoding mai sofisticat
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde
Monitorizarea de la distanta
Ofera posibilitatea de a urmari locuita personala sau spatiul comercial de la distanta, prin intermediul unui smartphone, tableta sau laptop. Aceasta este o solutie optima, pentru a vedea transmisia sistemului video de supraveghere detinut intr-o anumita locatie cu ajutorul unei conexiuni la internet, 3G sau 4G.
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio.
- System Parameter
- Video Input Channel4
- Video Resolution6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Outgoing Bandwidth40Mbps
- Incoming Bandwidth50Mbps
- Video Parameter
- Video Output1-ch HDMI, 1-ch VGA
- HDMI Output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
- VGA Output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
- Video Decoding FormatH.265;H.265+;H.264;H.264+
- Aux Port Window Division1/4
- Decoding Capability4-ch@4 MP (12 fps),4-ch@1080p (25 fps)
- Live View Window Division1/4
- Synchronous Playback4
- Audio Parameter
- Two-Way AudioN/A
- Audio Decoding FormatG.711ulaw;G.722;G.726;MP2L2
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- HDD Management
- HDD No.1 SATA interface
- Capacity Per HDDUp to 6 TB capacity for each disk
- Recording Management
- Playback ModeNormal/Smart, Event, Tag, Eternal File
- Network Management
- Remote Connections16
- Network ProtocolIPv6, HTTP, UPnP, NTP, SADP, DDNS

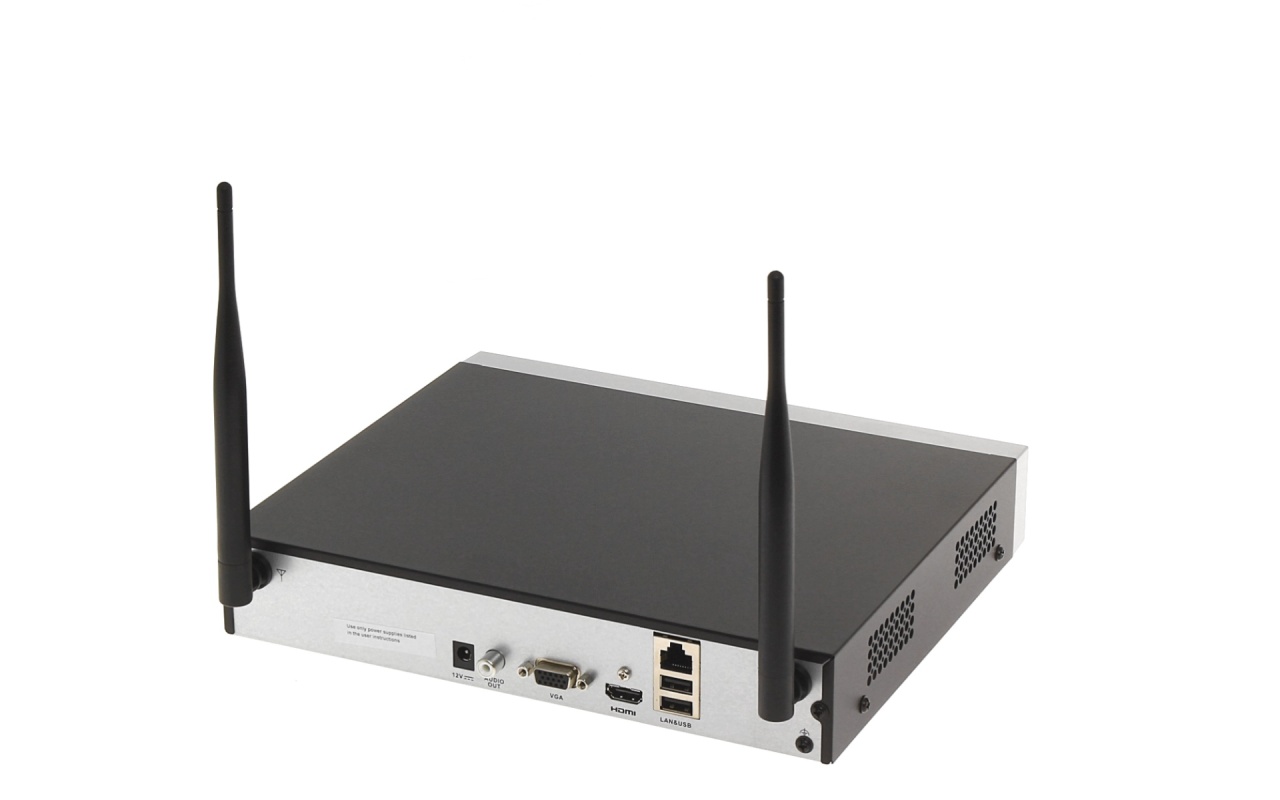

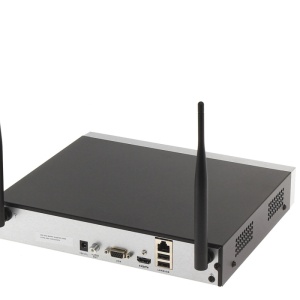

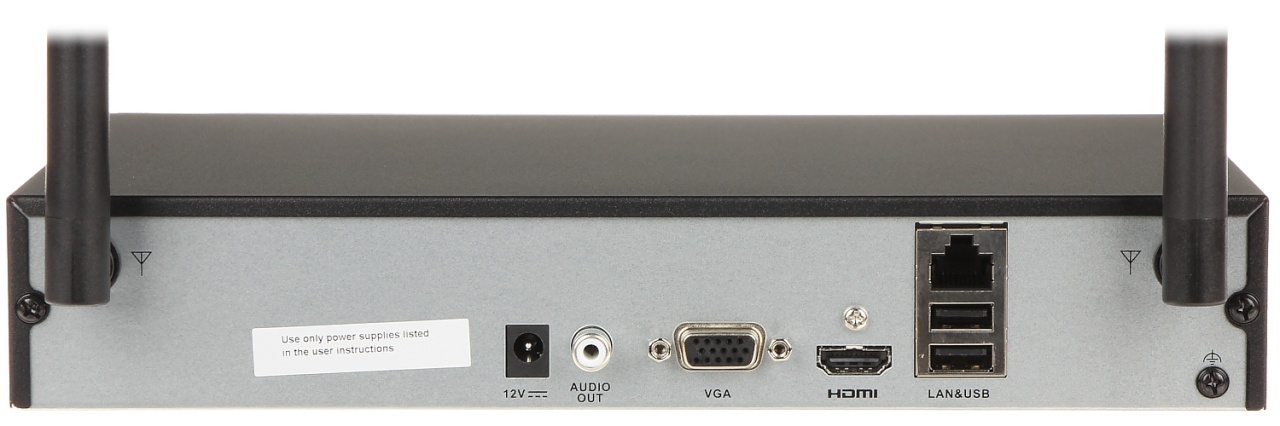

- External Port
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- USB InterfaceRear panel: 2 × USB 2.0
- Alarm InputN/A
- Alarm OutputN/A
- Wireless Transmission
- Wireless Standard IEEE 802.11b/g/n
- General Standard
- PowerDC 12V 24W
- Consumption (Without HDD)≤ 10W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- ChassisMini 1U
- 机箱类型Metal box
- Dimension265 × 246 × 48 mm (10.4" × 9.7" × 1.9")
- Weight (Without HDD)≤ 1 kg (2.2 lb)
