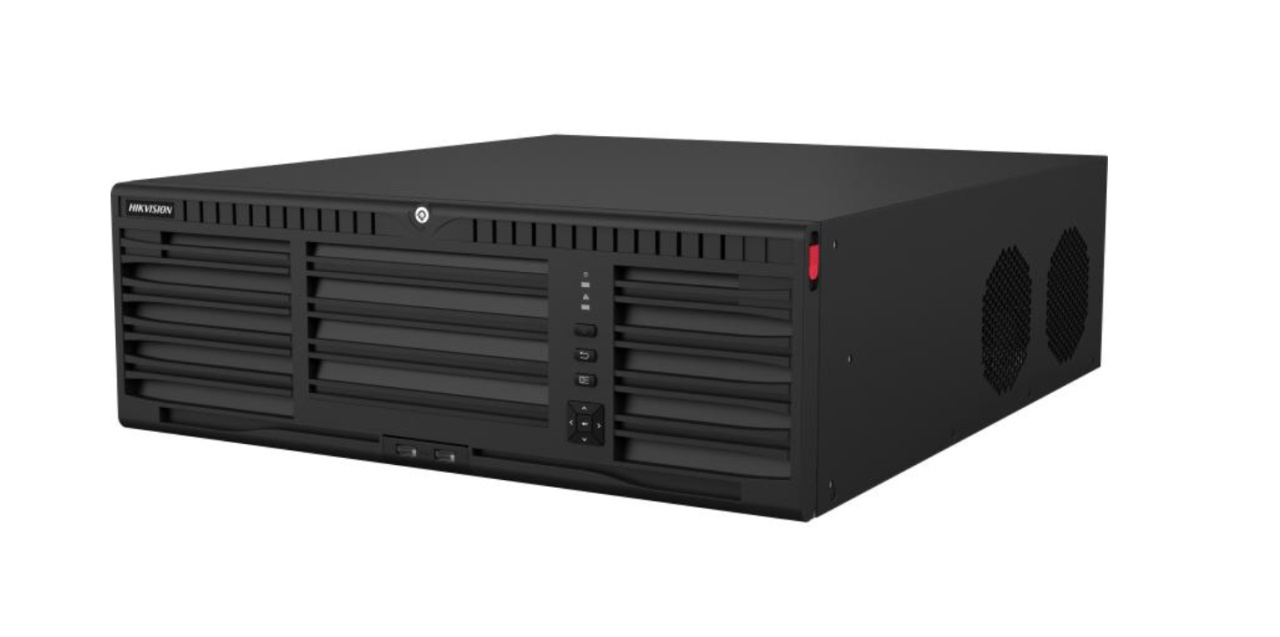

NVR 64ch 4K Hikvision DS-9664NI-M16 64 canale IP, decodare 32/24/12/8/4 MP si 1080p, 400 Mbps intrare/iesire, 2 HDMI + 2 VGA, suport camere speciale, streaming avansat, RAID 0/1/5/6/10/N+M, pana la 8 IP speaker-uri

Descriere

Specification
Video and Audio
IP Video Input 64-ch
Incoming Bandwidth 400 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is
1080p.
VGA 1 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format H.265/H.265+/H.264/H.264+
Recording Resolution
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Smart & POS Function
Support multiple VCA (Video Content Analytics) events
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting
POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Smooth streaming technology
Support web access without plug-in
Decoding Capability
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30
fps)/40-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP™, HTTP, HTTPS
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232
SATA 16 SATA interfaces supporting hot-plug
eSATA 1 eSATA interface
Capacity Up to 16 TB capacity for each disk
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be
turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 50 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 3U chassis
Dimension (W × D × H) 442 × 498 × 146 mm (17.4" × 19.6" × 5.8")
Weight ≤ 12.5 kg (without HDD, 27.6 lb.)
Certification
Obtained Certification CE, FCC
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
