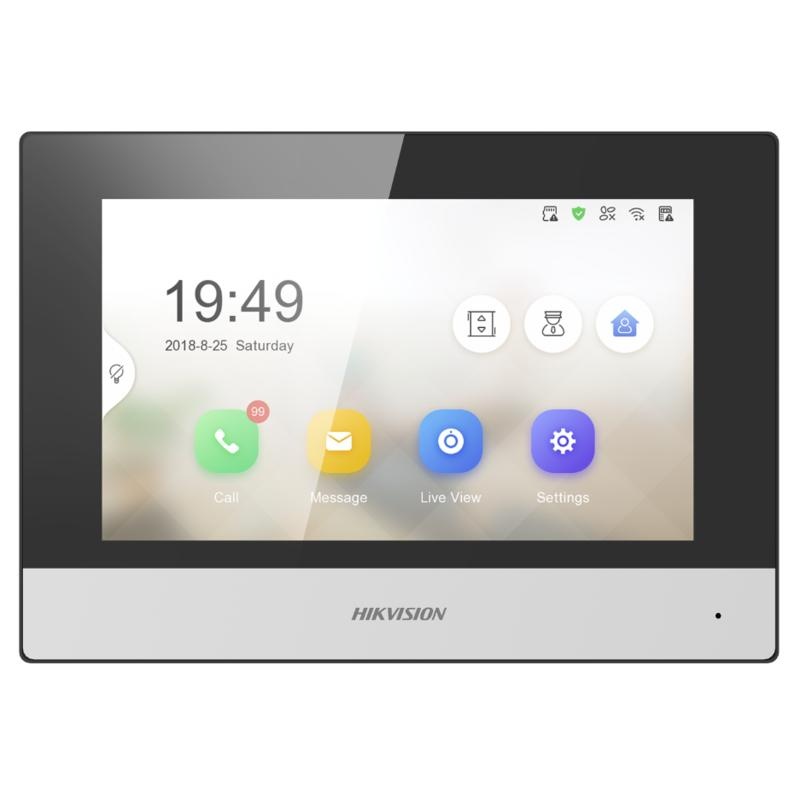

Monitor videointerfon WIFI , 7 inch display Hikvision DS-KH6320-WTE1-EU

Descriere

• System parameters
• Operation systemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display parameters
• Screen size7-inch
• Operation methodCapacitive touch screen
• TypeColorful TFT
• Resolution1024 × 600

• Video parameters
• Lens/
• Resolution/
• FOV/
• Wide dynamic range (WDR)/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711 U、G.711 A、G.722.1
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Message capacity

  TF card inser

  ted: 200 captured pictures, 200 alarm records

  Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

• Notice capacity200
• Linked indoor extensions capacity16
• Linked doorphone capacity17
• Linked network camera capacity16

• Network parameters
• Network protocolTCP/IP, SIP, RTSP
• Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device interfaces
• Alarm input8
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851 RS-485 (Half duplex)
• USB/
• TF cardSupport TF card, up to 128 G
• Alarm output2
• Lock control2 relays, Max. 30 VDC 0.3 A

• General
• Button/
• InstallationSurface mounting
• Indicator/
• Weight

  Net weight: 355 g (0.8 lb)

  Gross weight: 683 g (1.5 lb)

• Protective level/
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Battery/
• Application environmentIndoor
• Power consumption≤ 5 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
