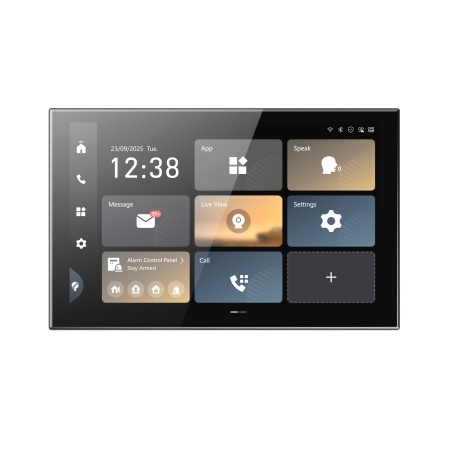

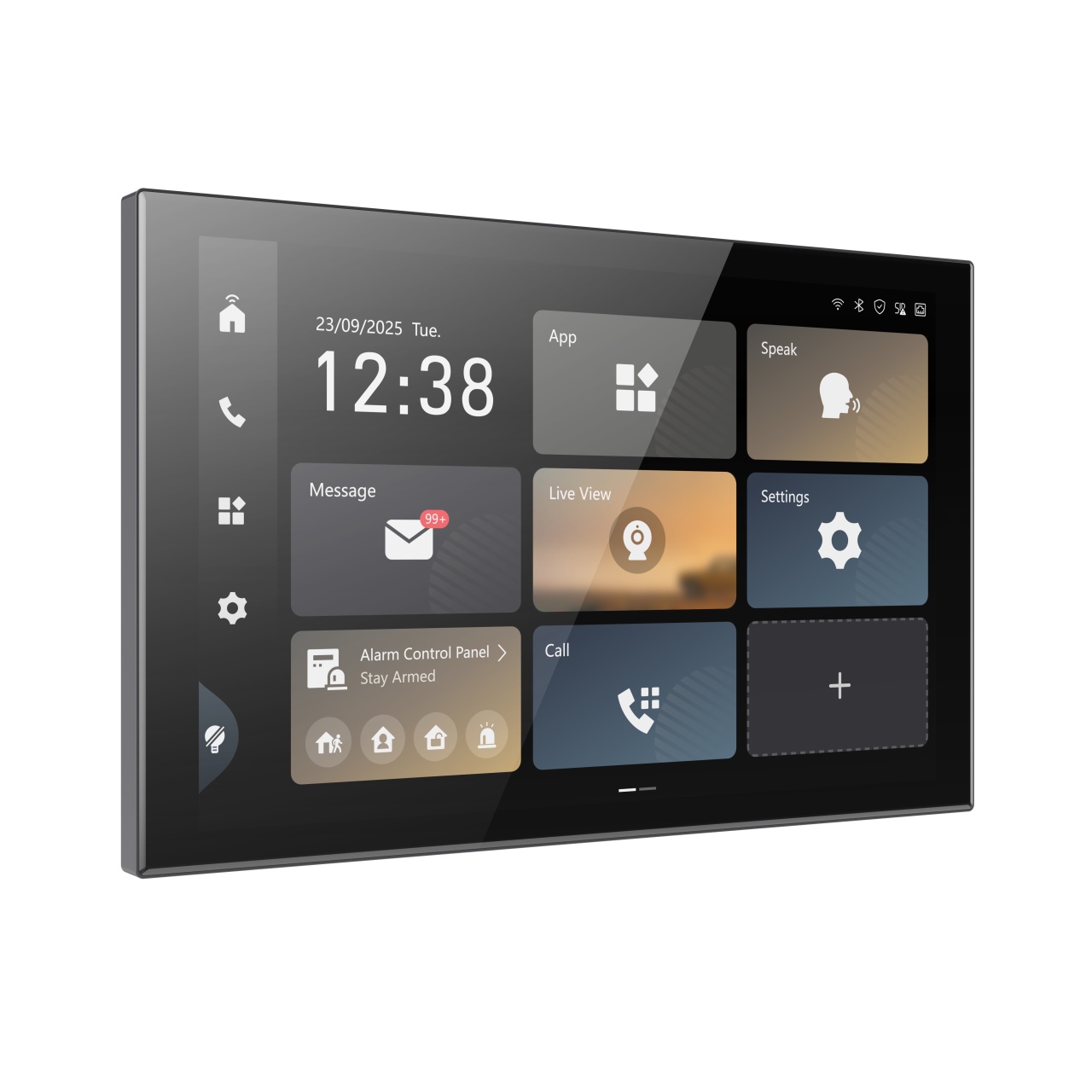

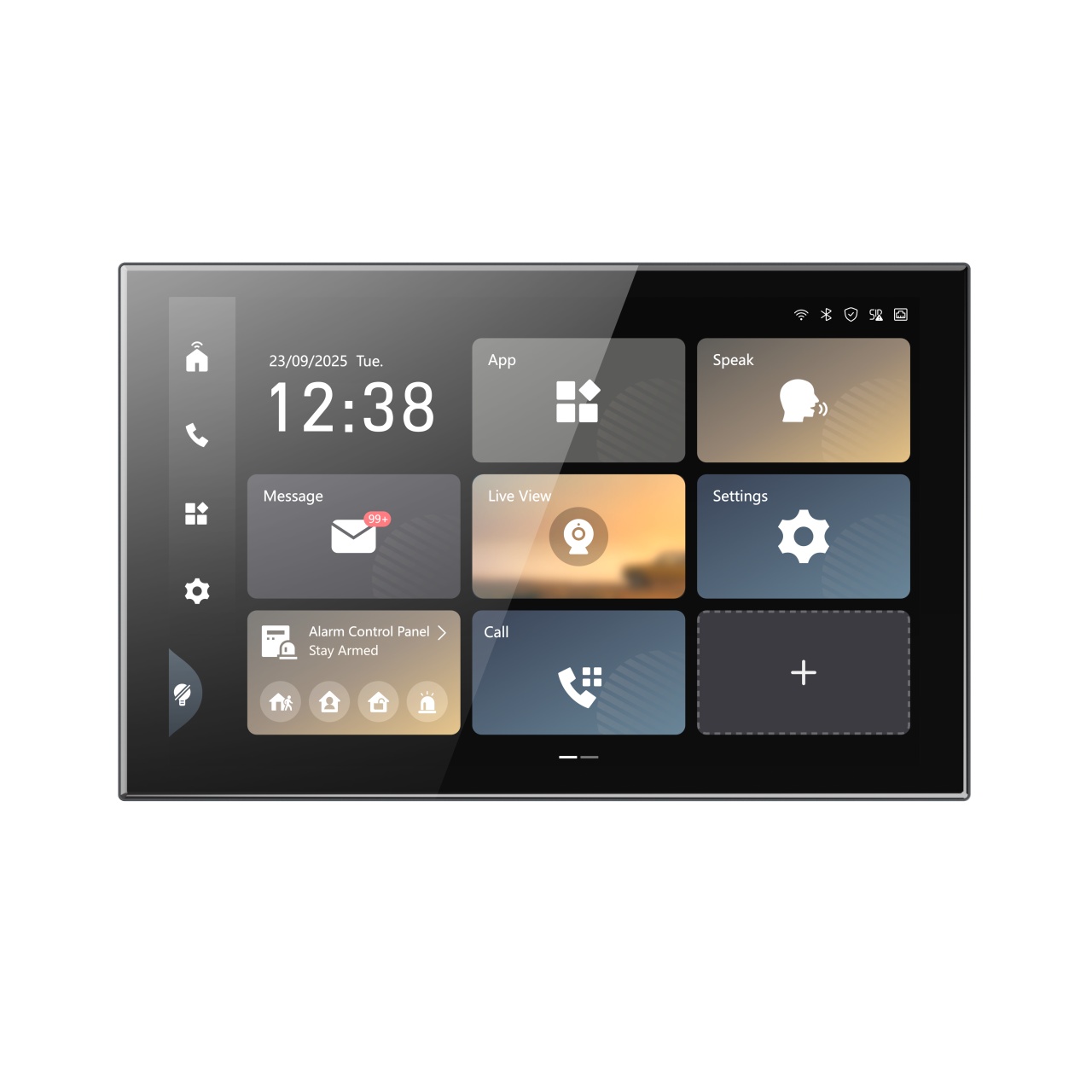

Monitor videointerfon IP HikVision Ultra Series 10.1 inch DS-KH9570-WTE1/S, ecran tactil Super HD, sistem Android 14, procesor 4-core, memorie 8GB, Wi-Fi, management securitate unificat, sunet clar cu anulare ecou
Descriere
Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.
Wi-Fi
Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general 2,4 gigahertzi UHF si 5 gigahertzi SHF ISM benzi radio.
Power over Ethernet – PoE
Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.
Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.
- System parameters
- Operation systemAndroid 14
- ROM8 GB
- RAM4GB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1920 ×1200
- Video parameters
- Lens/
- Resolution/
- Video compression standard/
- Audio parameters
- Audio input2 built-in omnidirectional microphone
- Audio compression standardG.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio output2 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Linked doorphone capacity17
- Message capacity200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
- Linked indoor extensions capacity15
- Linked network camera capacity16
- Network parameters
- Wi-FiWi-Fi 6, 2.4 GHz & 5GHz
- BluetoothBLE 5.0
- Network protocol
IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
SIP v1 (RFC2543), SIP v2 (RFC3261)
DTMF: SIP Info
SADP, ISAPI, ONVIF
- Device interfaces
- Alarm input8 (Reserved)
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- RS-4851 RS-485 (Half duplex)
- TF cardSupport TF card, up to 256 G
- Power supply input12 VDC
- Power supply output12 VDC, 200mA
- Relay1 (Reserved), Max. 30VDC 1A
- General
- Proximity SensorDistance: 50cm, Horizontal: 25°, Vertical: 25°
- InstallationSurface mounting
- Without package: 545 g (1.2 lb),With package: 639g (1.41 lb)
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Power supply12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
- Application environmentIndoor
- Power consumption≤ 24 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Dimension (W × H × D)246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93")
