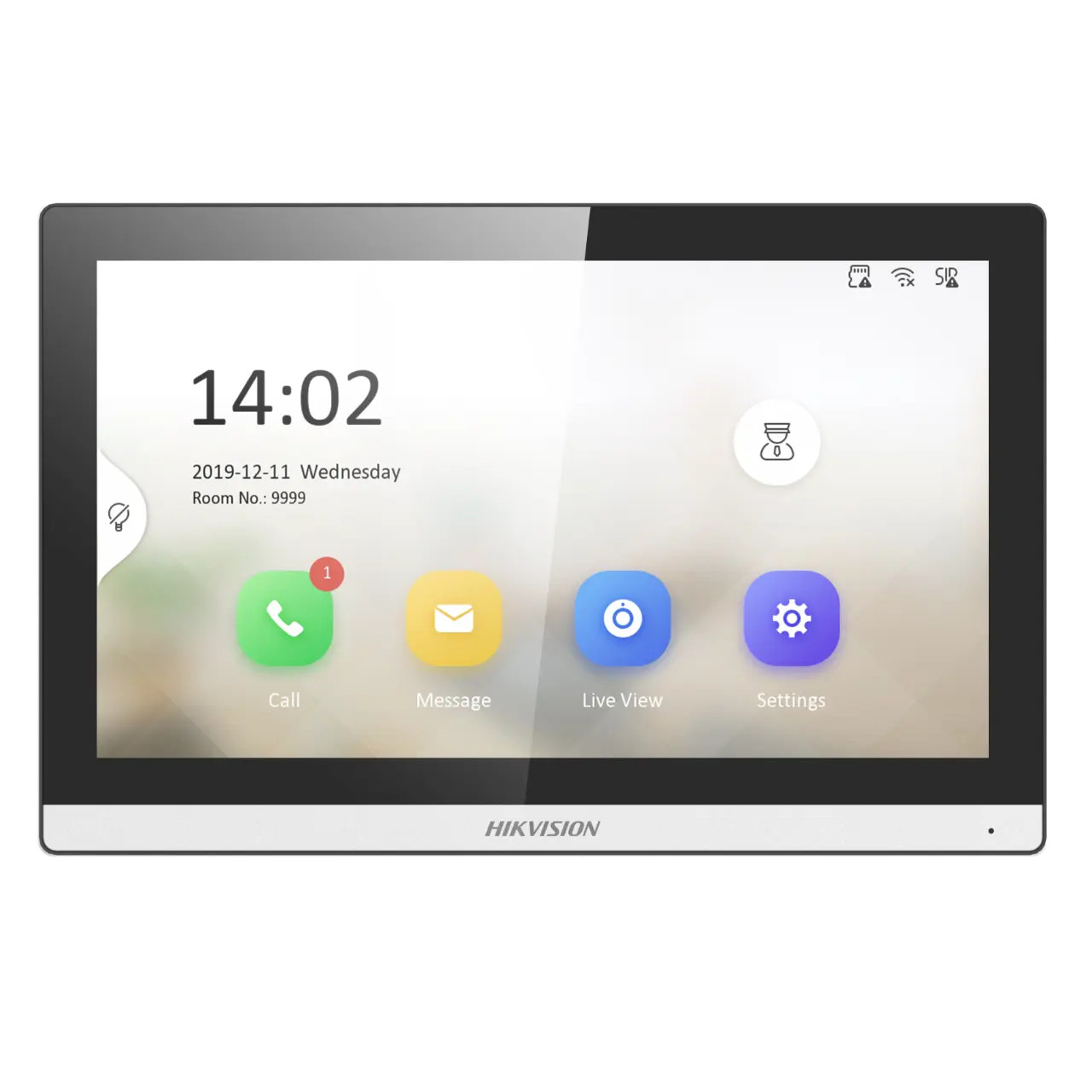

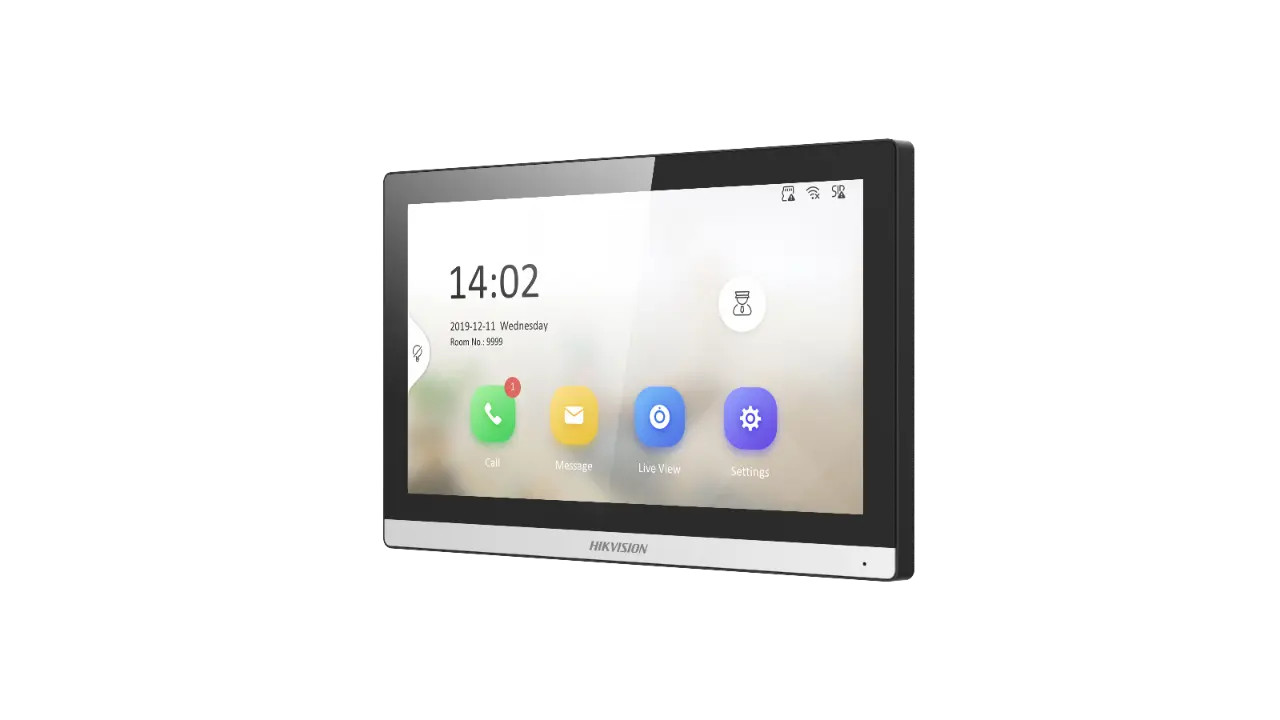

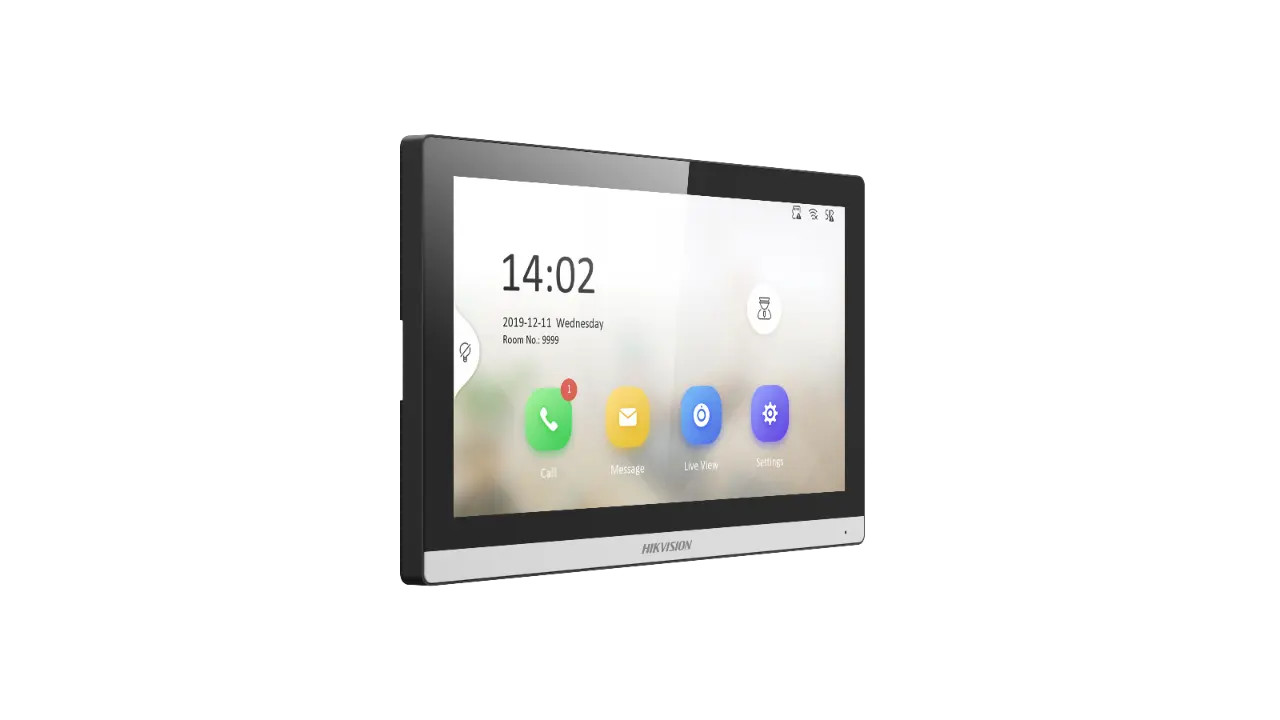

Monitor videointerfon HikVision modular ecran LCD 7" color cu touch screeen, rezolutie ecran 1024 × 600 DS-KH6350-WTE1

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• System Parameters
• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display Parameters
• Screen Size7-inch colorful TFT screen
• Operation MethodCapacitive touch screen
• TypeColorful TFT screen
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Compression StandardG.711 U, G.711 A
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Event Capacity200
• Notice Capacity16
• Linked Indoor Extensions Capacity5

• Network Parameters
• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi StandardWi-Fi 802.11 b/g/n
• Bluetooth Version/
• 3G/4G Standard/
• Zigbee/

• Device Interfaces
• Alarm Input8-ch alarm inputs
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851
• USB/
• TF CardMax to 128 G
• Alarm Output2
• Power Interface1

• General
• Button0
• InstallationWall mounting, table mounting
• Indicator0
• Weight

  With package: 683 g

  Without package: 355 g

• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimensions175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 8 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
