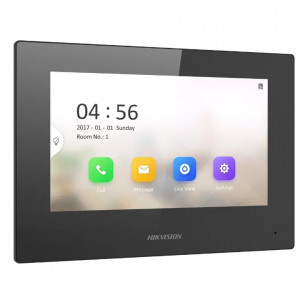

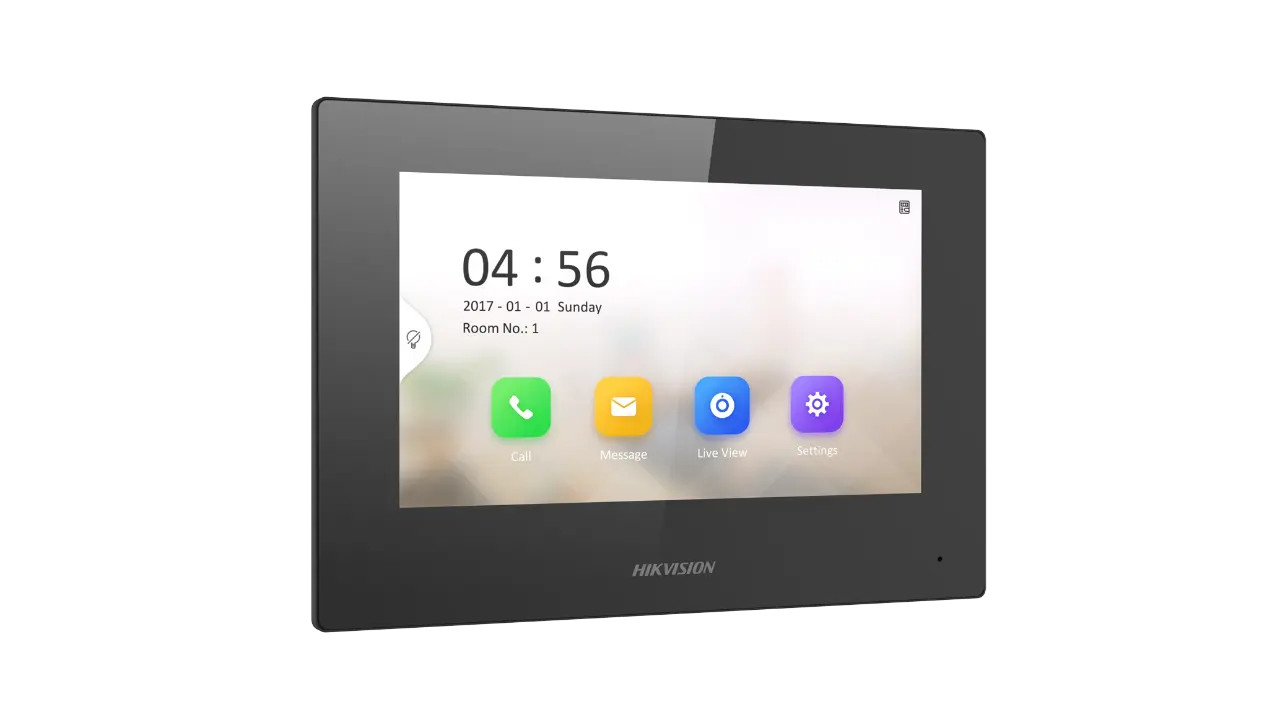

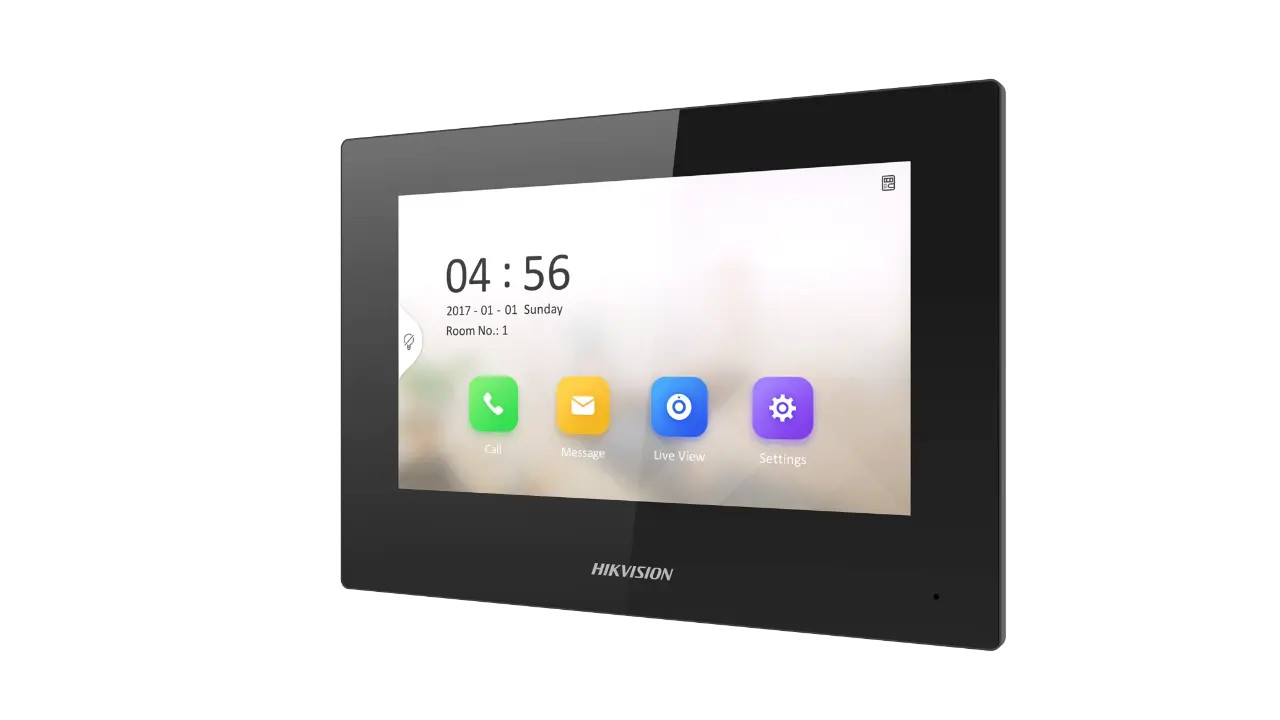

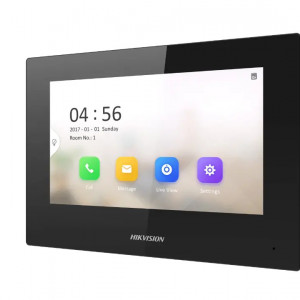

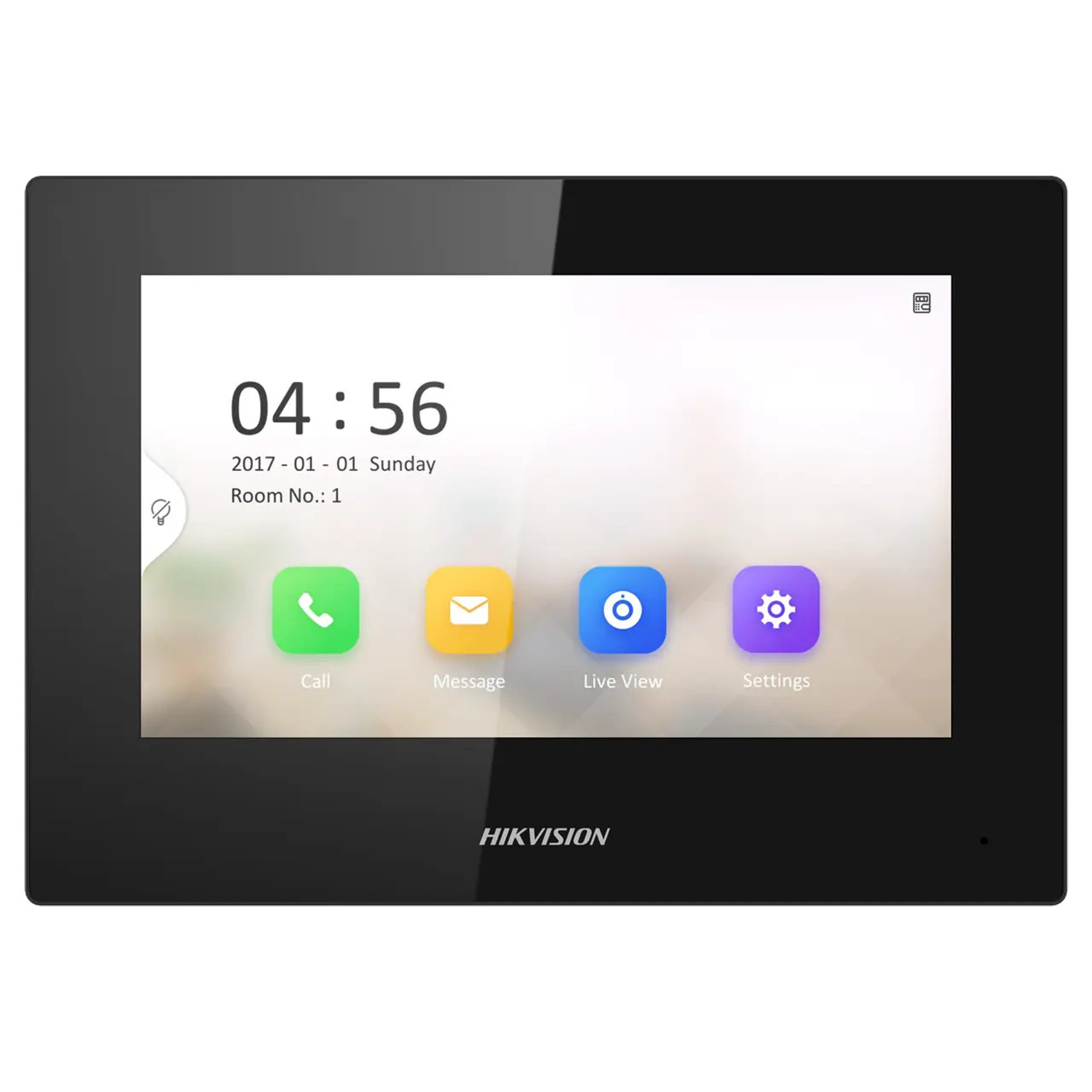

Monitor Videointerfon HikVision IP DS-KH6320-LE1

Descriere

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +55°C si cu umiditate de pana la 90%

• System Parameters
• Operating SystemEmbedded RTOS operation system
• ROM16 MB
• RAM64 MB
• CPUEmbedded processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapactive touch
• TypeTFT LCD
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Event Capacity200
• Notice Capacity16
• Linked Indoor Station Capacity5
• Linked Indoor Extensions Capacity8

• Network Parameters
• Communication ProtocolTCP/IP, RTSP
• Wired NetworkSupport
• Wi-Fi Standard/
• Bluetooth Version/
• 3G/4G Standard/
• Zigbee/

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485/
• USB/
• TF Card/
• Alarm Output/
• Power Interface1

• General
• Button/
• InstallationFlush mounting, surface mounting
• Indicator/
• Weight

  With package: 683 g

  Without package: 355 g

• Protective Level/
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimensions200 mm × 140 mm × 15.1 mm (7.87" ×5.51" × 0.59")
• Battery/
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC, 1 A

• Application EnvironmentIndoor
• Power Consumption≤ 6 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Czech, Ukrainian, Serbian
