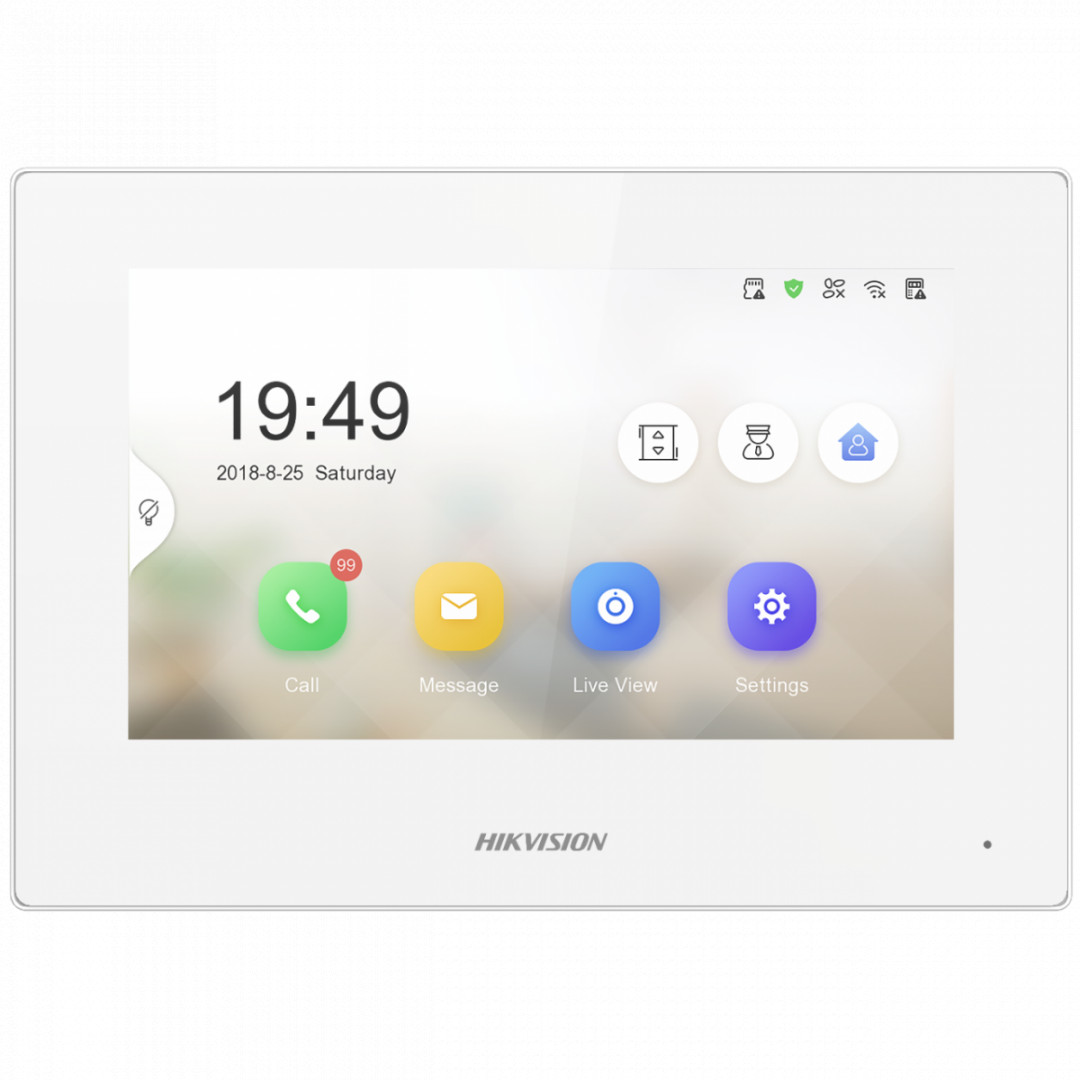

Monitor videointerfon HikVision ALB 7inch color LCD Resolution 1024 × 600, ROM 32 MB, RAM 128 MB, Audio compression standard

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• System Parameters
• Operating SystemLinux
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapactive touch
• TipTFT LCD
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Compression StandardG.711 U, G.711 A
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Event Capacity

  200 captured pictures (with TF card); 200 alarm records

  2 MB RAM (without TF card) reserved for events

• Linked Indoor Extensions Capacity5
• Linked Network Camera Capacity16
• Linked Doorphone Capacity17 IP doorphones Max.

• Network Parameters
• Communication ProtocolTCP/IP, RTSP
• Wired NetworkSupport
• Wi-Fi Standard/
• Bluetooth Version/
• 3G/4G Standard/
• Zigbee/

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485/
• USB/
• TF Card/
• Alarm Output/
• Power Interface1 (12VDC power input)

• General
• Button/
• InstallationSurface mounting, table mounting
• Indicator/
• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 133 °F)
• Working Humidity10% to 90%
• Dimensions200 mm × 140 mm × 23.6 mm (7.87" ×5.51" × 0.93")
• Battery/
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC

• Application EnvironmentIndoor
• Power Consumption≤ 3 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek,Slovak
• WeightWithout package: 330 g (0.73 lb),With package: 667g (1.47 lb)
