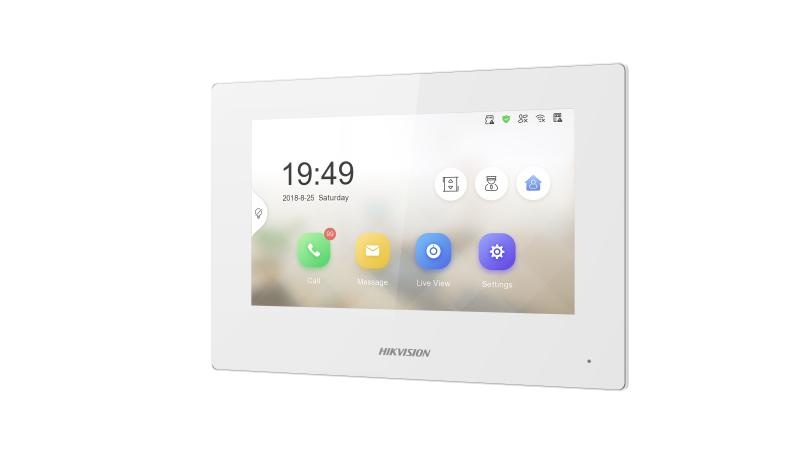

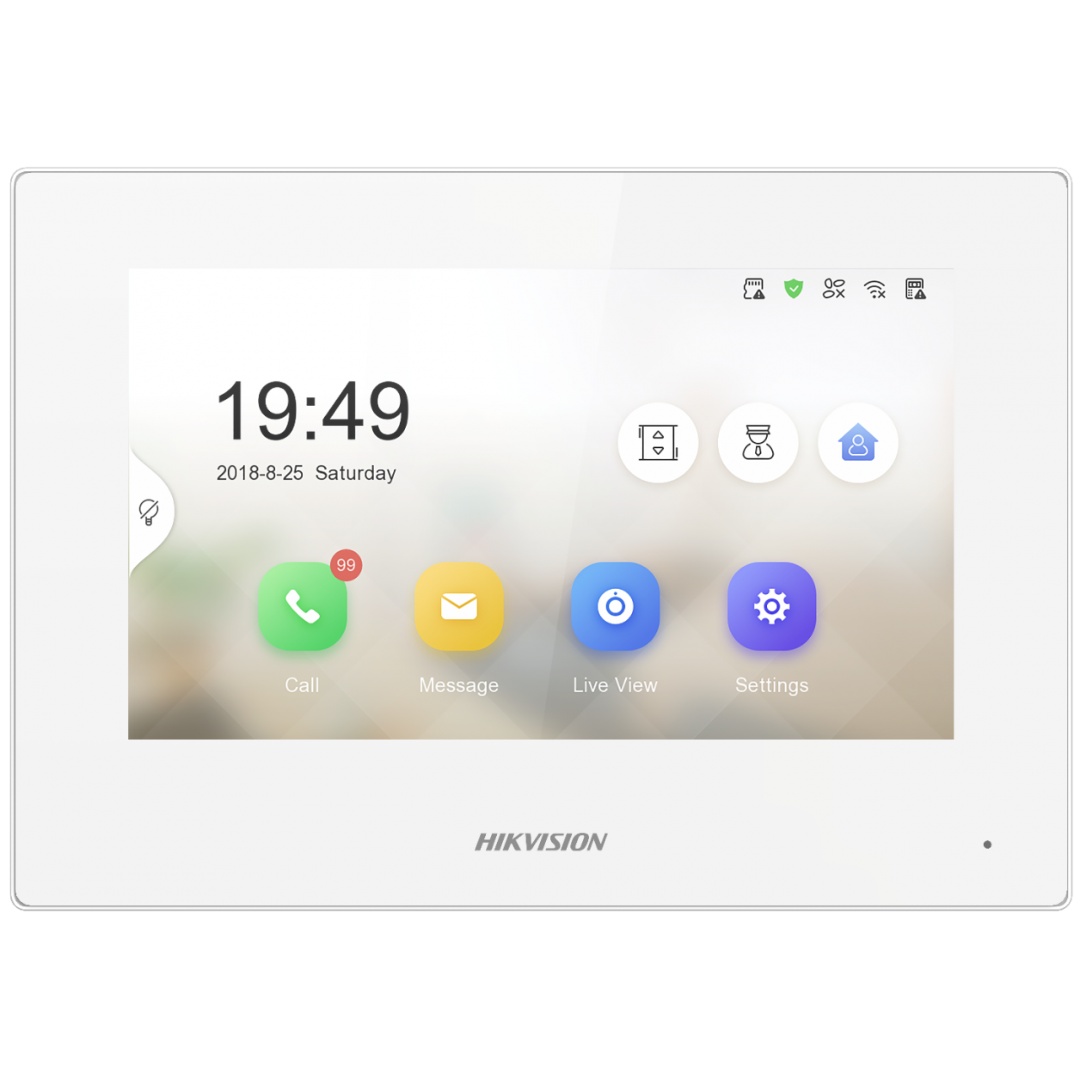

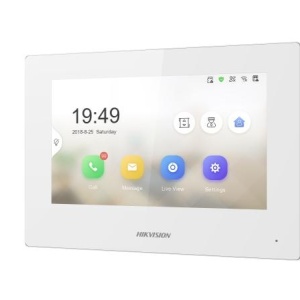

Monitor videointerfon ALB 7inch color Hikvision DS-KH6320-LE1-WH(B)

Descriere

• System parameters
• Operating systemLinux
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display parameters
• Screen size7-inch
• Operation methodCapactive touch
• TipTFT LCD
• Resolution1024 × 600

• Video parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Event capacity

  200 captured pictures (with TF card); 200 alarm records

  2 MB RAM (without TF card) reserved for events

• Linked indoor extensions capacity16
• Linked network camera capacity16
• Linked doorphone capacity17 IP doorphones Max.

• Network parameters
• Communication protocolTCP/IP, RTSP
• Wired networkSupport
• Wi-Fi standard/
• Bluetooth version/
• 3G/4G standard/
• Zigbee/

• Device interfaces
• Alarm input8
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485/
• USB/
• TF card/
• Alarm output/
• Power interface1 (12VDC power input)

• General
• Button/
• InstallationSurface mounting, table mounting
• Indicator/
• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 133 °F)
• Working humidity10% to 90%
• Dimensions200 mm × 140 mm × 23.6 mm (7.87" ×5.51" × 0.93")
• Battery/
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Application environmentIndoor
• Power consumption≤ 3 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
• WeightWithout package: 330 g (0.73 lb),With package: 667g (1.47 lb)
