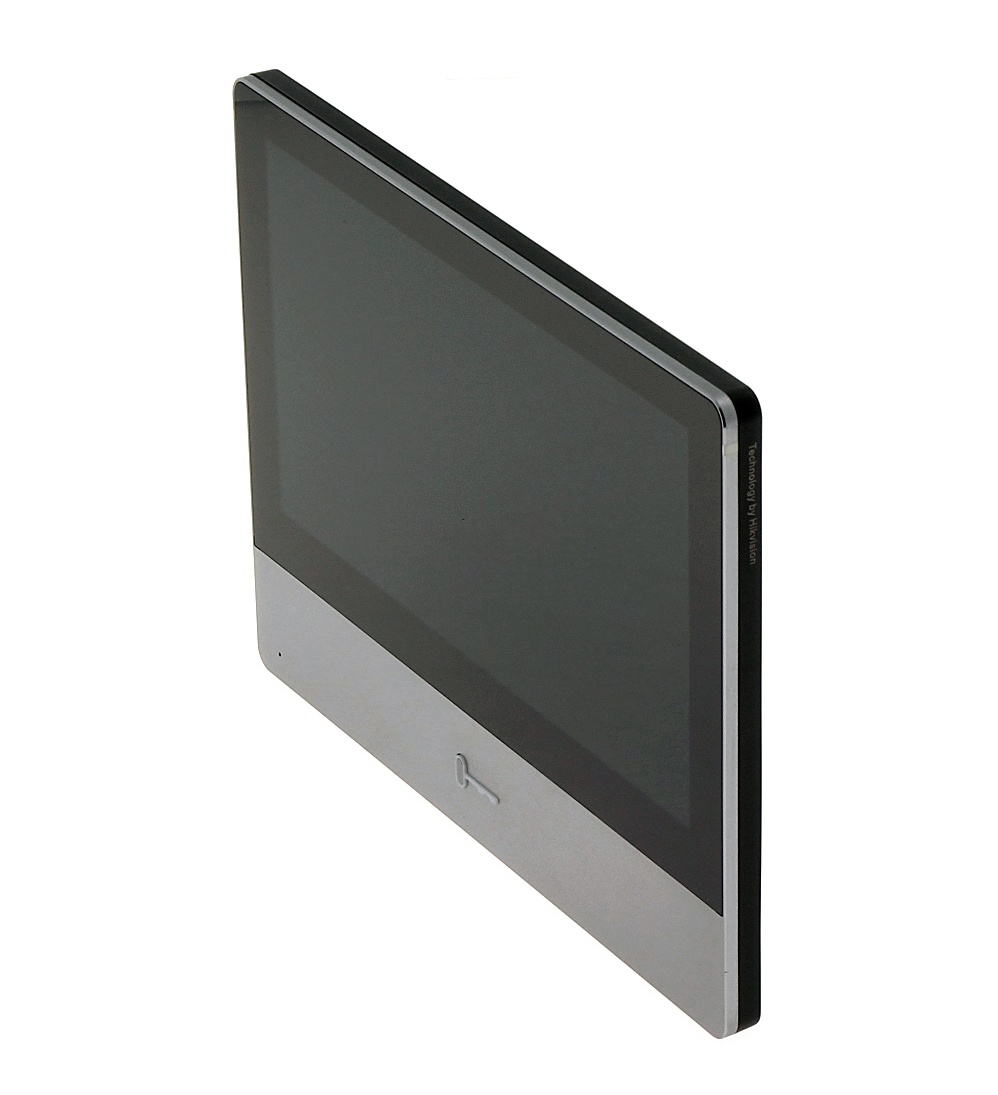

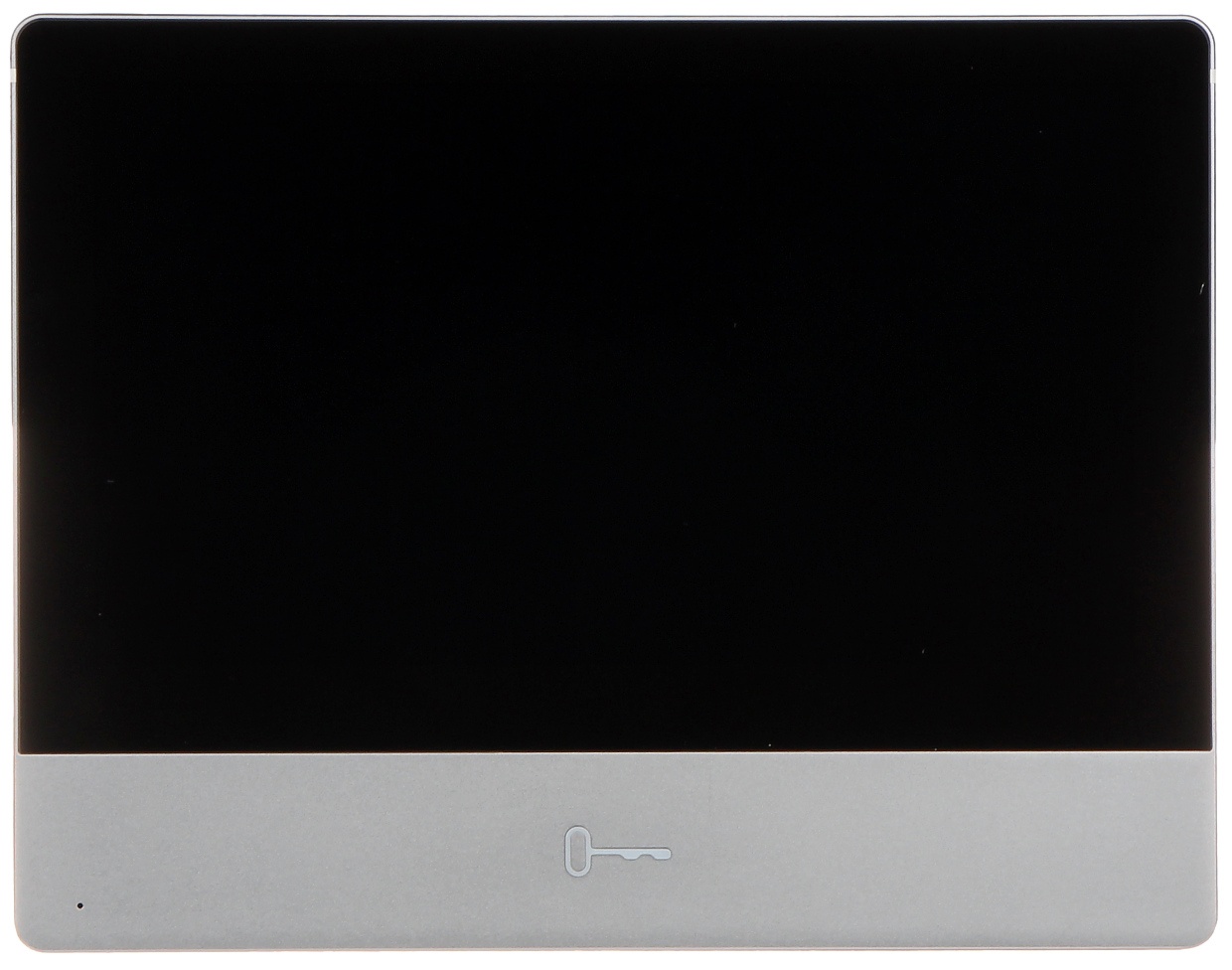

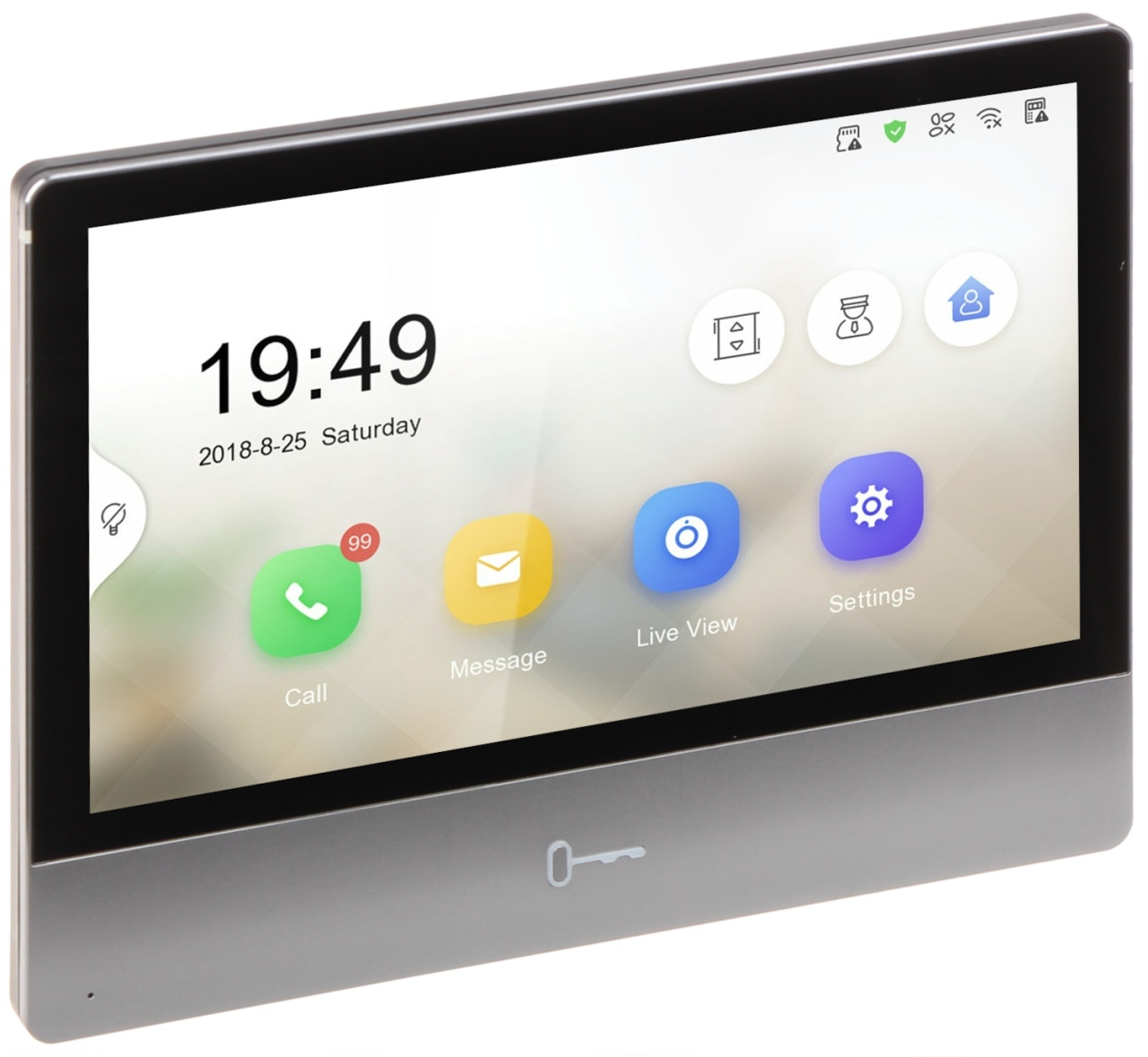

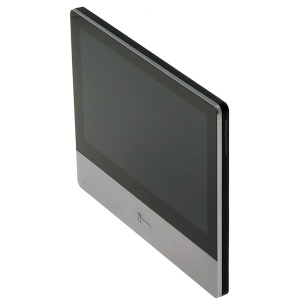

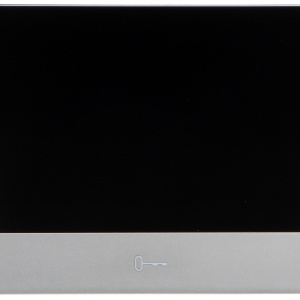

Monitor HikVision videointerfon WIFI modular 7" color ecran LCD 7" color cu touch screeen, rezolutie ecran 1024 × 600; design modern DS-KH6320-WTE1/EU

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• System Parameters
• Operation SystemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapacitive touch screen
• TipColorful TFT
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• Wide Dynamic Range (WDR)/
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711U
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Message Capacity200
• Notice Capacity16
• Linked Indoor Extensions Capacity16
• Linked Doorphone Capacity8

• Network Parameters
• Network ProtocolTCP/IP, SIP, RTSP
• Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Zigbee/

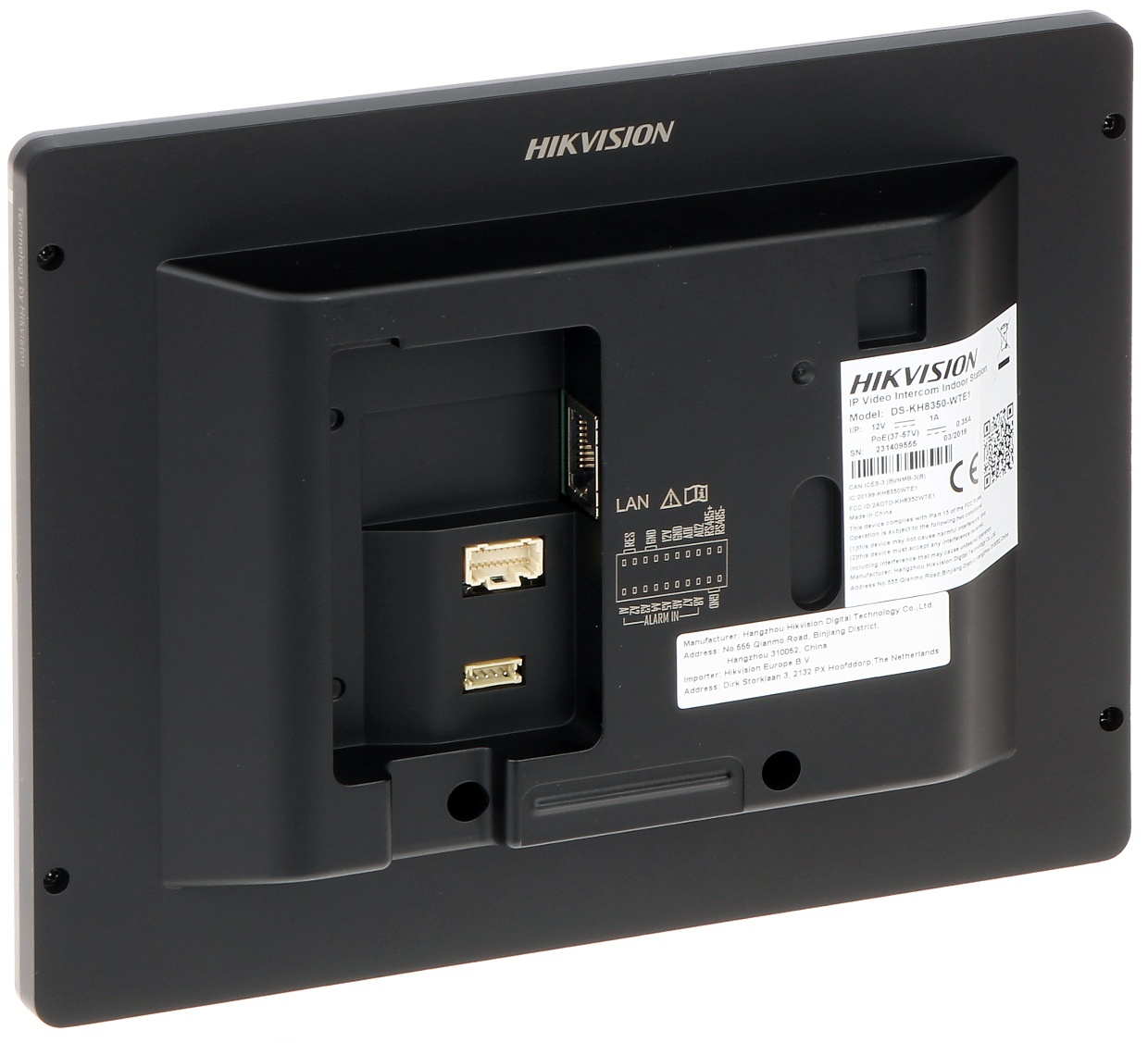

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851 RS-485 (Half duplex)
• USB/

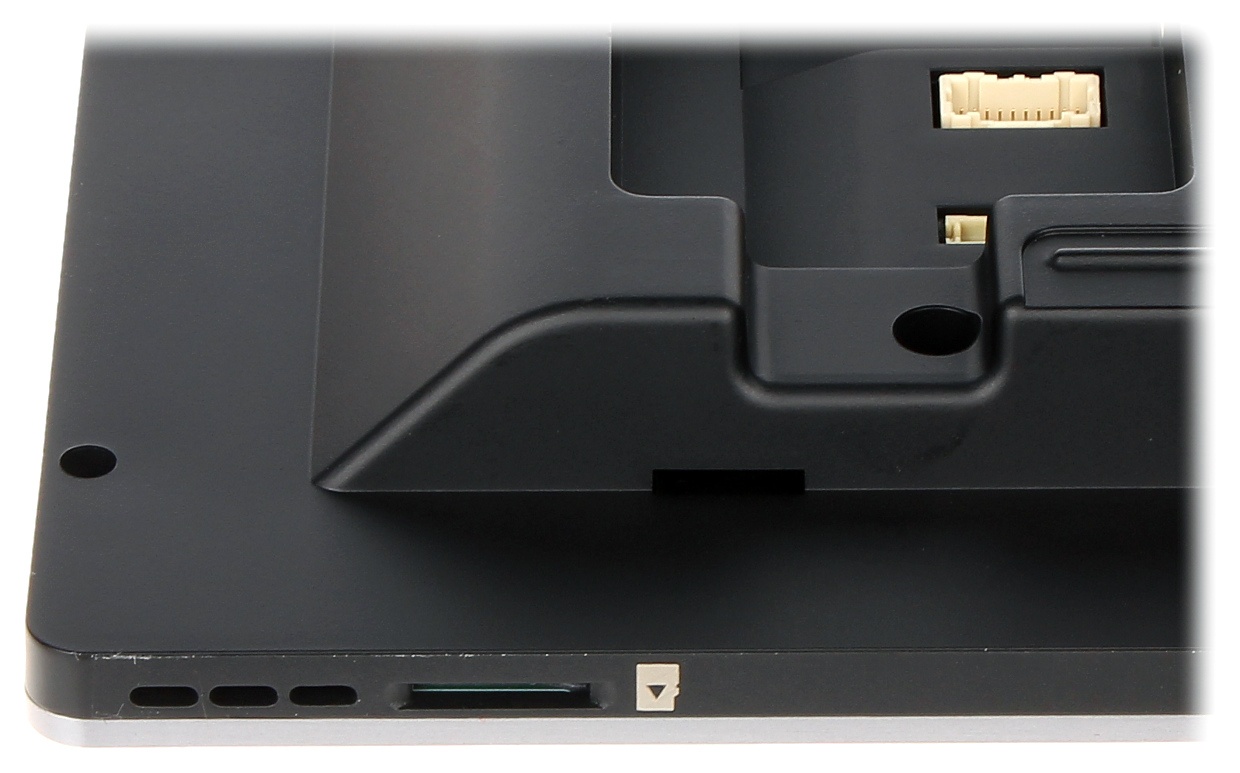

• TF CardSupport TF card, up to 128 G
• Alarm Output2
• Lock Control2 relays, Max. 30 VDC 0.3 A

• General
• Button/
• InstallationSurface mounting
• Indicator/
• Weight

  Net weight: 355 g (0.8 lb)

  Gross weight: 683 g (1.5 lb)

• Protective Level/
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90% (no-condensing)
• Dimension (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 6 W
• LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
