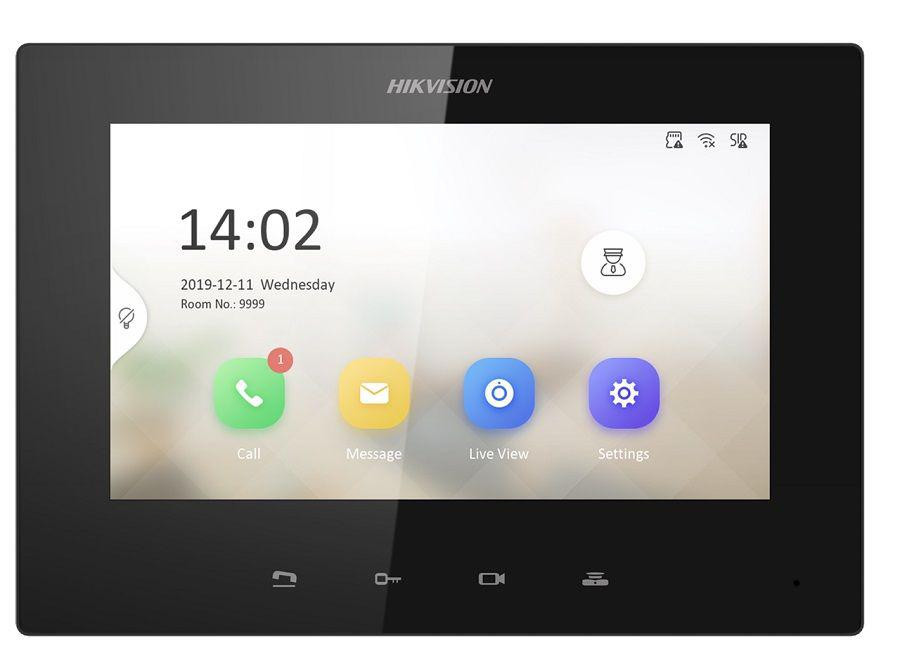

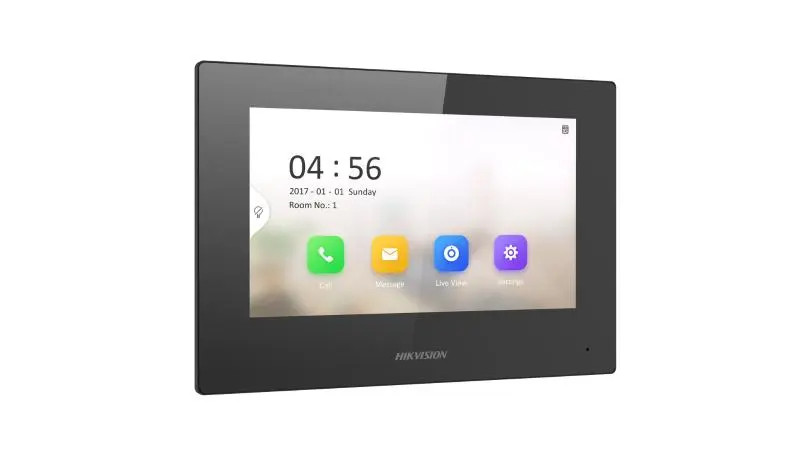

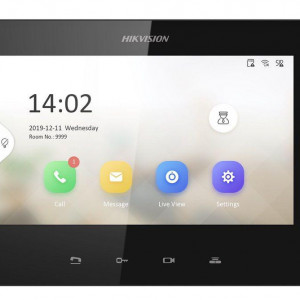

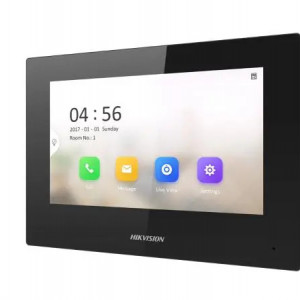

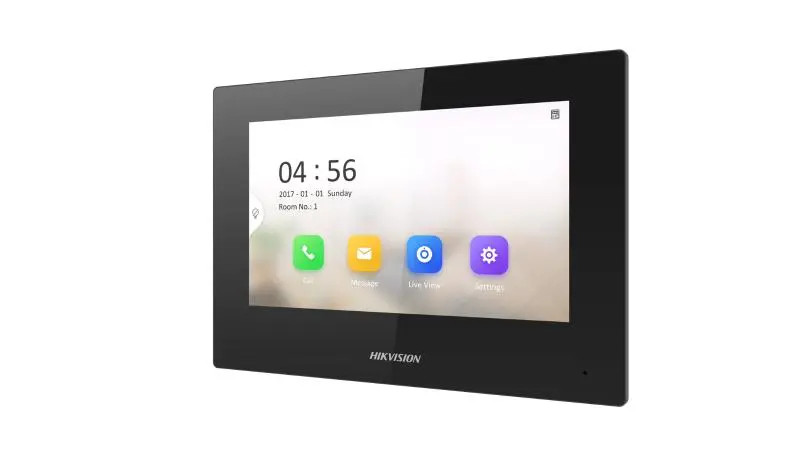

Monitor HikVision videointerfon 7inch color LCD Resolution 1024 × 600, ROM 32 MB, RAM 128 MB, Audio compression standard DS-KH6320-LE1(B)

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• System Parameters
• Operation SystemLinux
• ROM32 MB
• RAM128 MB
• ProcessorEmbeded high performance processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapacitive touch screen
• TipColorful TFT
• Resolution1024 × 600

• Video Parameters
• Lens/
• Resolution/
• FOV/
• Wide Dynamic Range (WDR)/
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Input1 built-in omnidirectional microphone
• Audio Compression StandardG.711U, G.711A
• Audio Output1 built-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Message Capacity

  200 alarm records

  2 MB RAM reserved for events

• Linked Network Camera Capacity16
• Linked Indoor Extensions Capacity16
• Linked Doorphone Capacity17

• Network Parameters
• Network ProtocolTCP/IP, RTSP
• Wi-Fi/
• Bluetooth/
• 3G/4G/
• Zigbee/

• Device Interfaces
• Alarm Input8
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485/
• USB/
• TF Card/
• Alarm Output/
• Lock Control/

• General
• Button/
• InstallationSurface mounting, table mounting
• Indicator/
• Weight

  Net weight: 325 g (0.7 lb)

  Gross weight: 649 g (1.43 lb)

• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90% (no-condensing)
• Dimension (W × H × D)200 mm × 140 mm × 23.6 mm (7.87" ×5.51" × 0.93")
• Battery/
• Power Supply12 VDC, IEEE802.3af, standard PoE
• Application EnvironmentIndoor
• Power Consumption≤ 3 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
