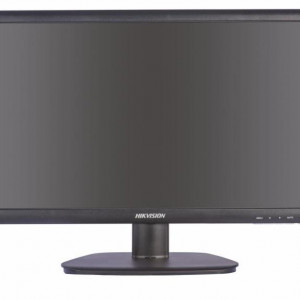

Monitor HIKVISION FullHD LED 24-inch dedicat pentru sistemele de supraveghere video DS-D5024FC-C
Descriere
Un monitor LED sau afisaj LED este un ecran plat , un monitor , computer cu ecran plat sau televizor . Are o adancime foarte scurta si este usor din punct de vedere al greutatii. Diferenta reala intre acesta si un monitor LCD tipic este lumina de fundal .
Monitoarele LED ofera multe avantaje in comparatie cu cele care sunt aprinse CCFL , inclusiv : costuri reduse , interval de intunecare mai larg , mai fiabile , consum redus de energie , raport de contrast dinamic mai mare , durata de viata mai lunga si impact diminuat asupra mediului.
HDMI ofera o calitate sporita a imaginii
HDMI – Hight Definition Multimedia Interface ofera posibilitatea conectarii unui ecran/televizor HD pentru redarea imaginilor la o claritate sporita. Prin intermediul unei conexiuni HDMI, semnalul video este transmis in format digital pentru o imagine cat mai clara.
Wide temperature
Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -20°C si +60°C.
- Display
- Screen Size23.8”
- Active Display Area527.04 (H) mm x 296.46 (V) mm
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.0915 (H) mm × 0.2745 (V) mm
- Brightness250 cd/㎡
- Viewing Angle178°/178°
- Color Depth8 bit
- Contrast Ratio4000:1
- Response Time6.5 ms
- Refresh Rate60 Hz
- Haze
25%
- Reliability7 × 18 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1，CVBS × 1，AUDIO IN × 1
- Video & Audio OutputSpeaker（2W 8Ω）× 2
- Power
- Power Supply
100 to 240 VAC, 50/60 Hz
- Power Consumption≤ 25 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 80% RH (non-condensing)
- Storage Temperature–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
- Storage Humidity5% to 90% RH (non-condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75 mm, 4-M6 × 6 screw holes
- Bezel Width1.9 mm (top/left/right), 23.55 mm (bottom)
- Product Dimensions (W × H × D)
With base: 539.1 (W) mm × 433.199 (H) mm × 43.78 (D) mm (21.22'' × 17.05'' × 1.88'')
Without base: 539.1 (W) mm × 328.325 (H) mm × 43.78 (D) mm (21.22'' × 12.93'' × 1.88'')
- Package Dimensions (W × H × D)650 (W) mm × 475 (H) mm × 135 (D) mm (25.5'' × 18.7'' × 5.31'')
- Net Weight3.6 ± 0.5 kg (7.9 ± 1.1 lb.)
- Gross Weight5.0 ± 0.5 kg (11.0 ± 1.1 lb.)
- Packing ListMonitor × 1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
- Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
