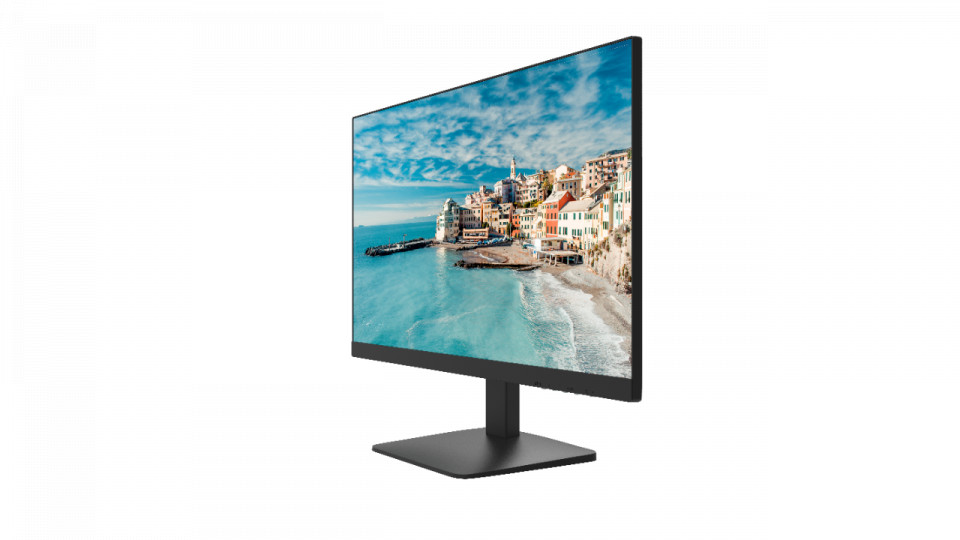

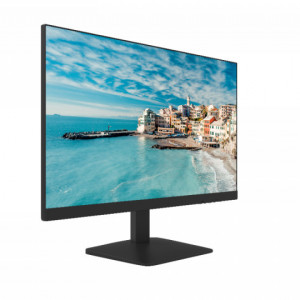

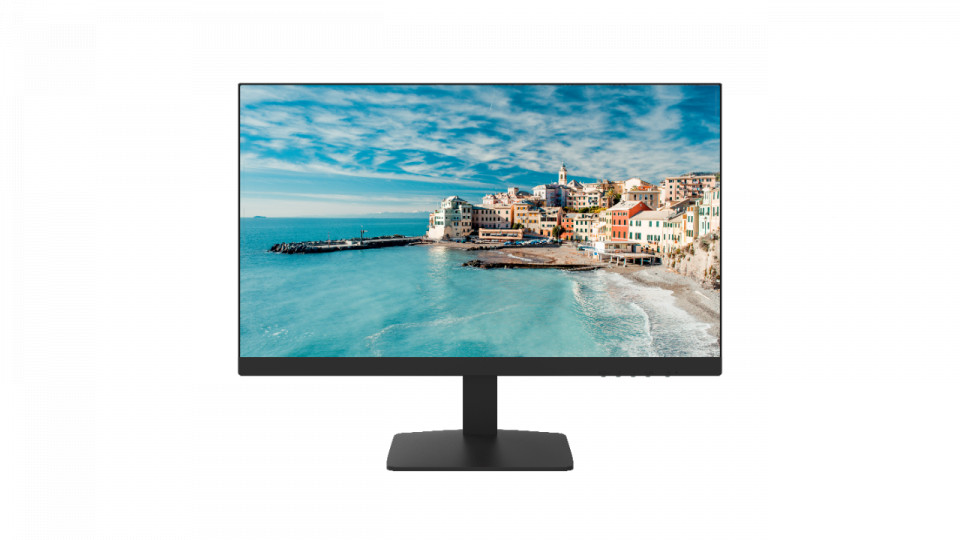

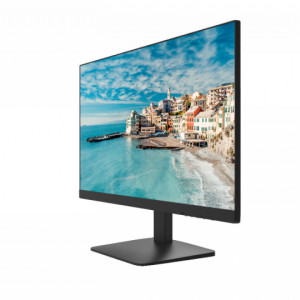

Monitor HikVision Full HD Audio IN/OUT DS-D5022FN-C
Descriere
Full HD
Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.
AUDIO IN/OUT
Un monitor LED sau afisaj LED este un ecran plat , un monitor , computer cu ecran plat sau televizor . Are o adancime foarte scurta si este usor din punct de vedere al greutatii. Diferenta reala intre acesta si un monitor LCD tipic este lumina de fundal .
Monitoarele LED ofera multe avantaje in comparatie cu cele care sunt aprinse CCFL , inclusiv : costuri reduse , interval de intunecare mai larg , mai fiabile , consum redus de energie , raport de contrast dinamic mai mare , durata de viata mai lunga si impact diminuat asupra mediului.
- Display
- Screen Size21.5”
- Active Display Area478.656 (H) mm × 260.28 (V) mm
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.0831 (H) mm × 0.241 (V) mm
- Brightness250 cd/㎡
- Viewing Angle178°/178°
- Color Depth8 bit
- Contrast Ratio3000:1
- Response Time6.5 ms（typ）
- Refresh Rate60 Hz
- Haze
25 %
- Reliability7 × 16 H
- Color Gamut72%
- Interface
- Video & Audio InputHDMI × 1, VGA × 1
- Power
- Power Supply
12 VDC
- Power Consumption≤ 22 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75 mm, 4-M6 × 6 screw holes
- Bezel Width19.06 mm (top/left/right), 30.87 mm (bottom)
- Product Dimensions (W × H × D)
With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38'' × 15.36'' × 7.88'')
Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38'' × 11.40'' × 1.73'')
- Package Dimensions (W × H × D)644 (W) mm × 108 (H) mm × 403 (D) mm (25.35'' × 4.25'' × 15.87'')
- Net Weight2.5 ± 0.5 kg (5.5 ± 1.1 lb.)
- Gross Weight3.8 ± 0.5 kg (8.4 ± 1.1 lb.)
- Packing ListPower adapter × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
- Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
