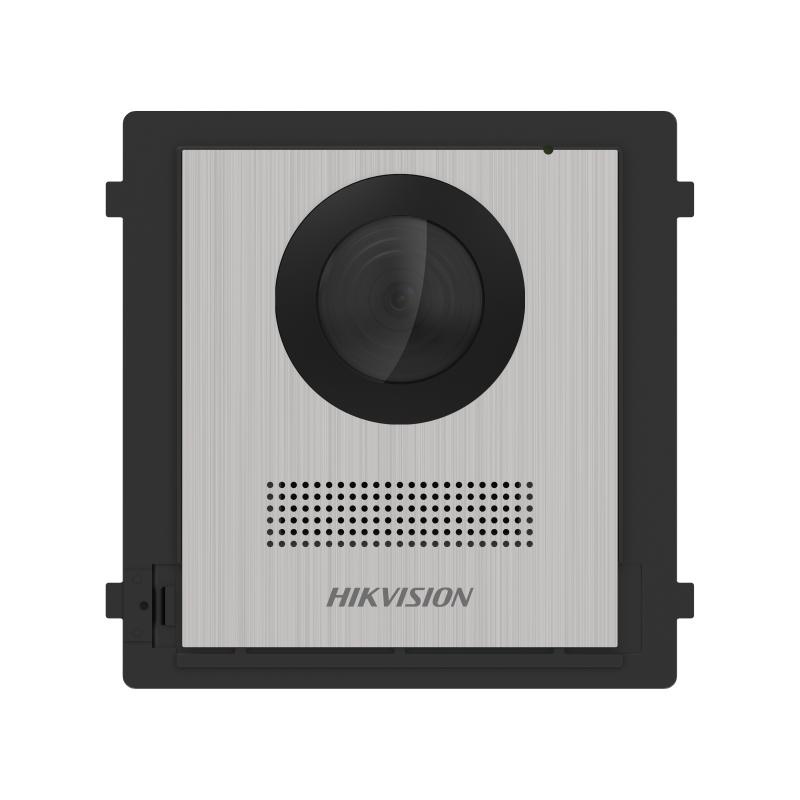

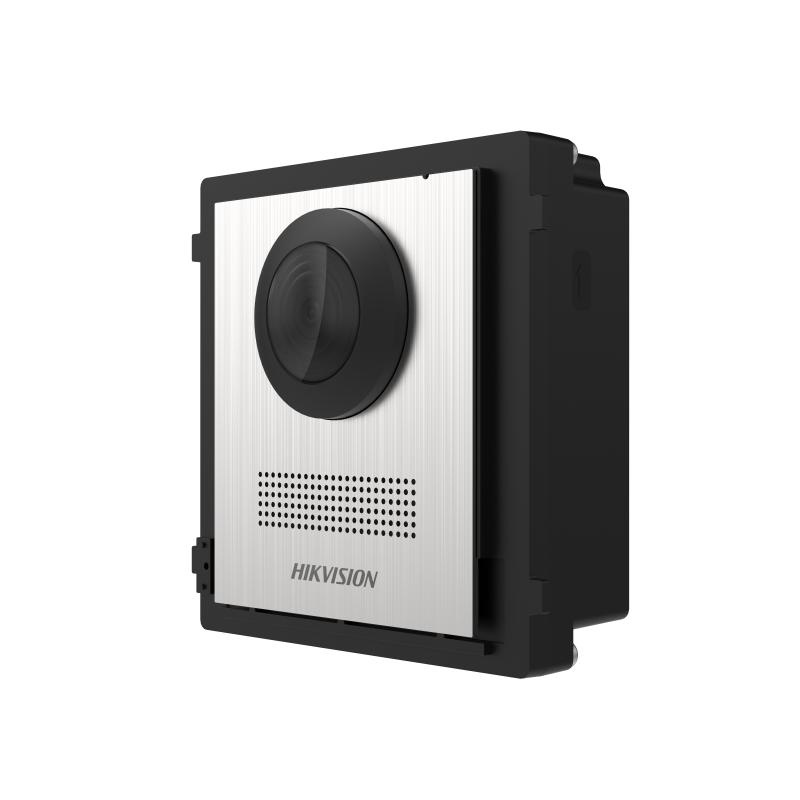

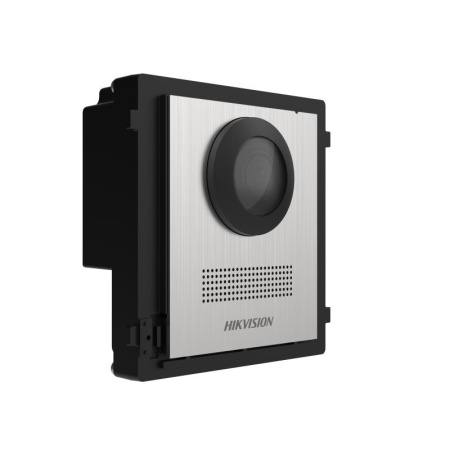

Modul HikVision Master conectare 2 fire camera video 2MP fisheye si un buton apel IR 3m DS-KD8003Y-IME2/NS

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Full HD

Nu lasa nici un detaliu sa treaca neobservat. Cu tehnologia HD poti surprinde imagini de o calitate mai buna, cu pana la 5 ori mai detaliate decat standardul SD. Deasemeni, suprafata care va fi acoperita va fi mult mai mare.

• System parameters
• Operation systemEmbedded Linux operation system
• ROM32 MB
• RAM256 MB
• ProcessorEmbedded Processor

• Display parameters
• Screen size/
• Operation method/
• Type/
• Resolution/

• Video parameters
• Lens1
• Resolution2 MP
• FOVHorizontal: 146°, Vertical: 82°
• Wide dynamic range (WDR)Support
• Supplement lightIR light, up to 3 m
• Video compression standardH.264; h.265; MJPEG

• Audio parameters
• Audio input1 Built-in omnidirectional microphone
• Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• User capacity2000
• Face capacityNA
• Fingerprint capacity/
• Message capacity/
• Linked indoor station capacity500
• Sub door station capacity16

• Network parameters
• Network protocolipv6、onvif
• Wi-Fi/
• Bluetooth/
• 3G/4G/

• Device interfaces
• Alarm input4 (2 exit buttons and 2 door contacts by default)
• TAMPER1
• Exit button2 (2 for lock control)
• RS-4851 (1 for Hikvision's sub module communication)
• USBNA
• WiegandNA
• TF cardNA
• Alarm outputNA
• Lock control2 relays, Max. to 30 VDC, 2 A
• Door contact input2
• Two-Wire IP interfaceNA

• General
• Button/
• InstallationSurface mounting, flush mounting
• Indicator/
• Weight

  Net weight: 0.425 kg

  Gross weight: 0.600 kg

• Protective levelIP65
• Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Dimension (W × H × D)100 mm × 98 mm × 42 mm
• Battery/
• Power supplyPowered by KAD704Y or KAD706Y series distributor
• Application environmentOutdoor
• Power consumption≤ 4 W
• LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
