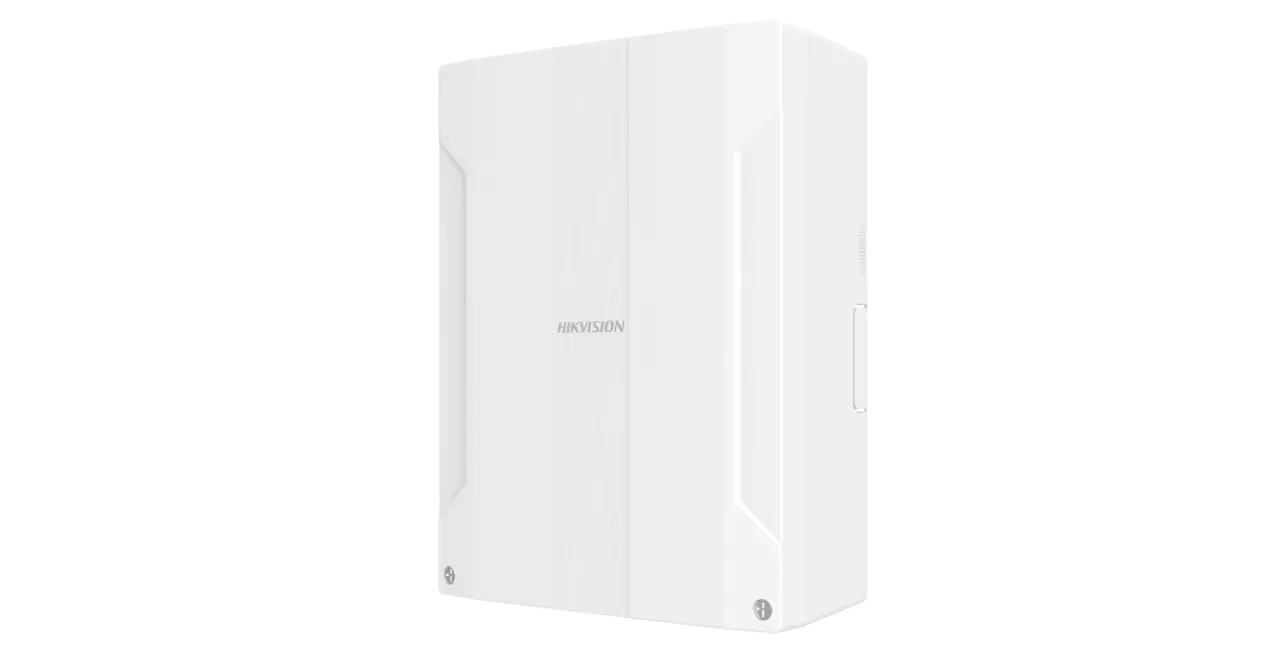

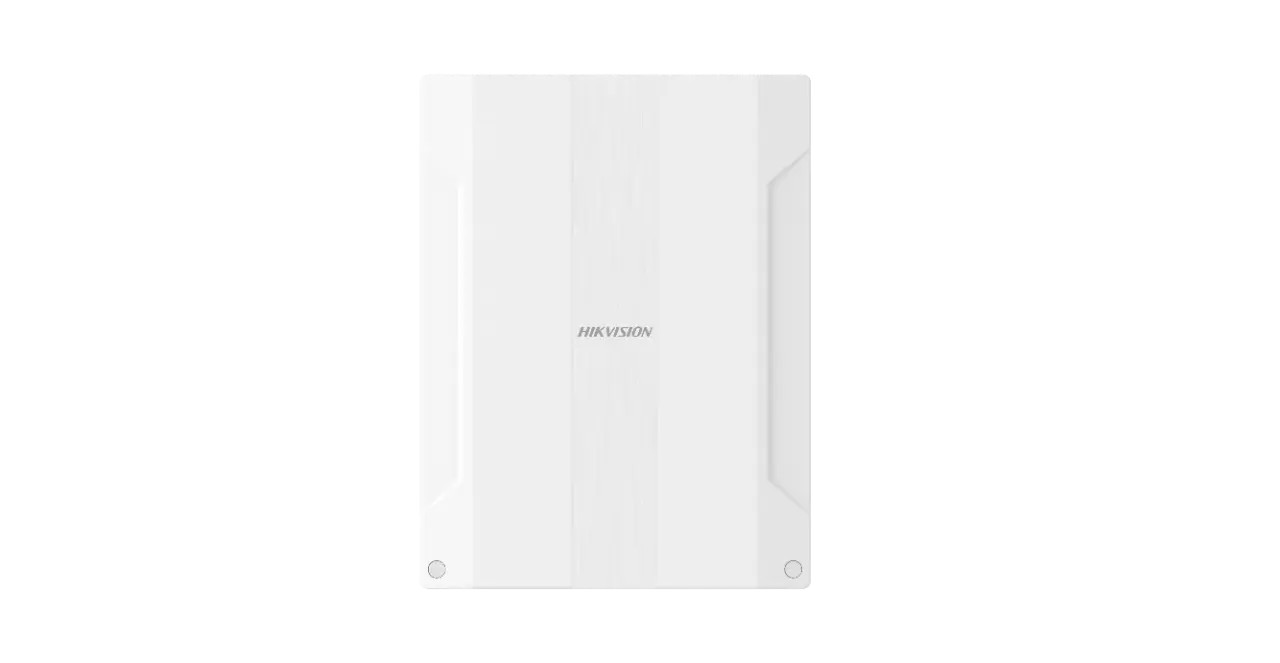

Modul extensie Multi I/O Wireless Hikvision AX PRO DS-PM1-I16O2-WE, 16 intrari, 2 iesiri, frecventa 868MHz bidirectional, afisaj LED status, doua iesiri alimentare 12V pt senzori cablati, spatiu acumulator backup

Descriere

Wide temperature

Domeniul larg de functionare al camerei, ii permite acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -10°C si +40°C si cu umiditate de pana la 90%.

• Software features
• End of Line Resistance

  1k 2.2k 4.7k 8.2k

  NO/NC

• Hardware features
• Serial port1
• Battery port1, 12 VDC input
• Tamper-ProofFront and rear
• Power switch1
• Alarm input16
• Alarm output2
• Power Output2 (12v, total1A)

• Electrical characteristics
• Battery type

  Compatible with 12v 7 Ah

  150 × 64 × 94 mm

• Power supply100-240VAC，30w
• Operation humidity10%~90%
• Operation temperature–10 ~ 40°C
• Power consumption

  Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)

  220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)

• Battery life spanUp to 36 hours

• Wireless transmission
• RF frequency868MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance1100m

• Display
• Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）

• General
• Installation methodWall Mounting
• Dimension(WxHxD)261*199*86.4mm
• Shell materialPlastic
• ColorWhite
• Weight

  975 g (without battery)

  3024g (with battery)
