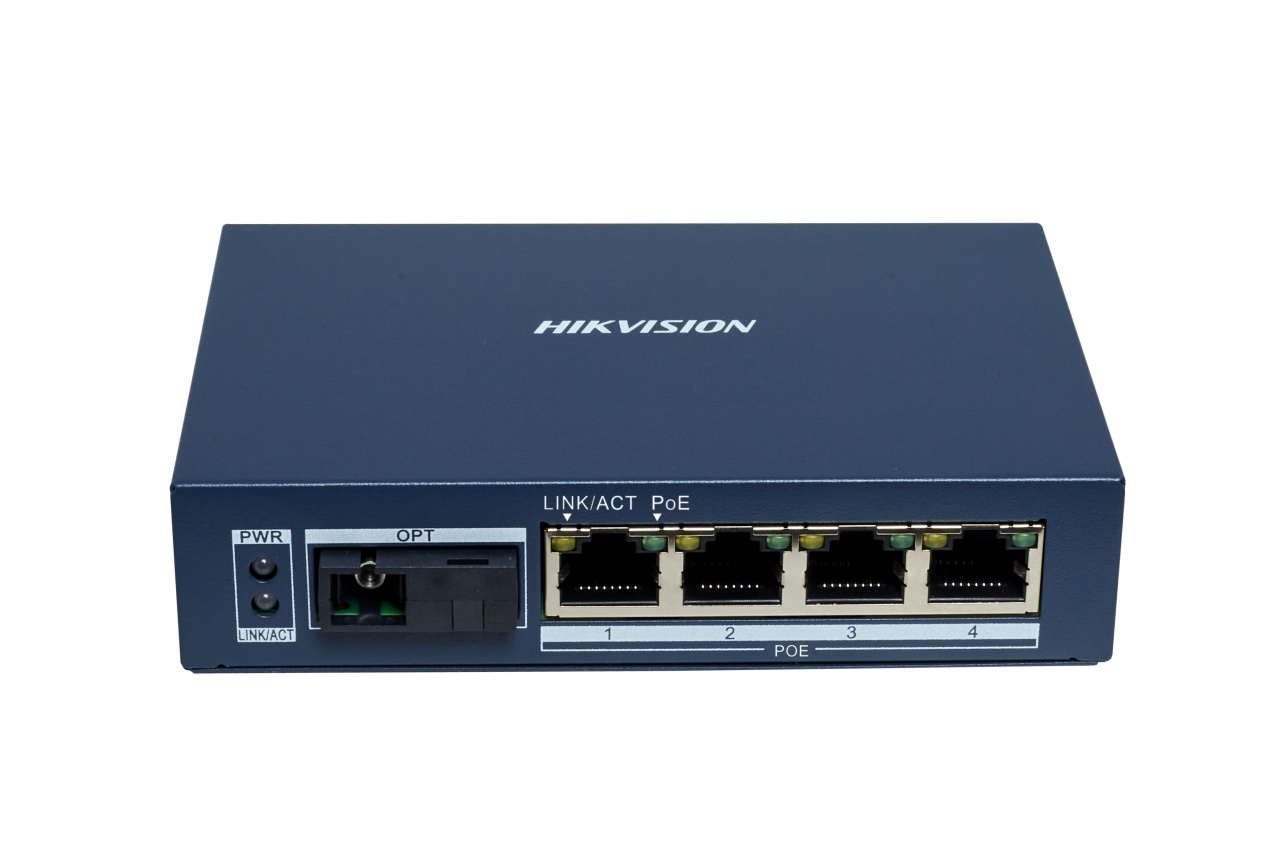

Media convertor Gigabit Hikvision DS-3D504TP-A, 4 porturi PoE 10/100/1000 Mbps, 1 port fibra optica SC, transmisie 20km, protectie 6KV, WDM single-fiber, plug-and-play, carcasa metalica, design industrial
339,97 RON
(TVA inclus)
280,97 RON
(fara TVA)
Cumpara de minim 500 lei pentru transport gratuit
Cum te putem ajuta?
Descriere
- General
- ShellMetal
- Net Weight0.13 kg (0.28 lb)
- Gross Weight0.23 kg (0.51 lb)
- Dimensions (W × H × D)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 1.2A
- Max. Power Consumption<65W
- Power Consumption in Idle2 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 kV
- Network Parameters
- Ports4 x 10/100/1000 Mbps PoE port and 1 x 1000 Mbps SC fiber optical port
- Switching Capacity14 Gbps
- Packet Forwarding Rate10.42 Mpps
- Optical Module Parameters
- Optical InterfaceSC
- Fiber TypeSingle-mode bidirectional fiber
- Transmission Distance20 km
- WavelengthTx1310 nm/Rx1550 nm
- Transmit Power-9 ~ -3 dBm
- Receiver Sensitivity≤ -24 dBm
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition))
- ChemistryReach (Regulation (EC) No.1907/2006)
Detalii
SKU
DS-3D504TP-A
EAN
9433
Categorii
Brand
Producator
HikVision
Numar porturi
2
