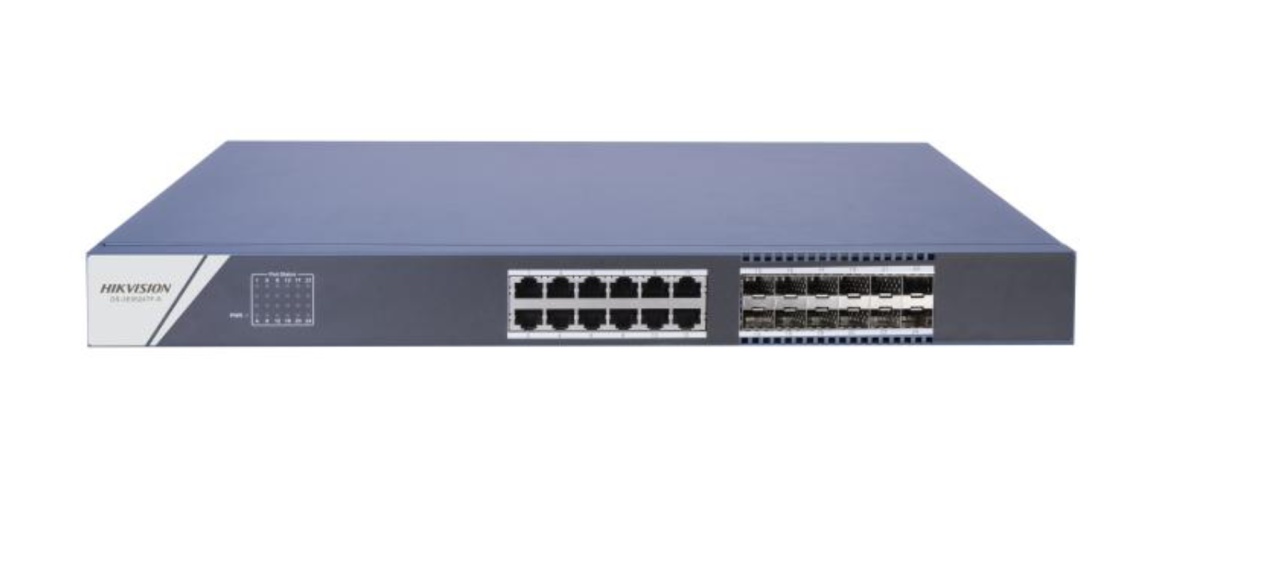

Layer 2 network switch designed for video data transmission 12 x 10/100/1000 Mbps ethernet ports and 12 x 10/100/1000 Mbps, Hikvision DS-3E0524TF(B)

Descriere

Specification
General
Shell Metal material, fan-free design
Net Weight 2.60 kg (5.73 lb)
Gross Weight 3.30 kg (7.28 lb)
Dimensions (W × H × D) 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 220 V AC, 50/60 Hz
Max. Power Consumption 40 W
Power Consumption in Idle 10 W
Installation Mode Rack (equipped with mounting ears)
Surge Protection 6 kV
Network Parameters
Ports 12 × Gigabit RJ45 port,12 × Gigabit fiber optical port
MAC Address Table 16 K
Switching Capacity 48 Gbps
Packet Forwarding Rate 35.7 Mpps
Internal Cache 12 Mbits
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:
2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN
62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
