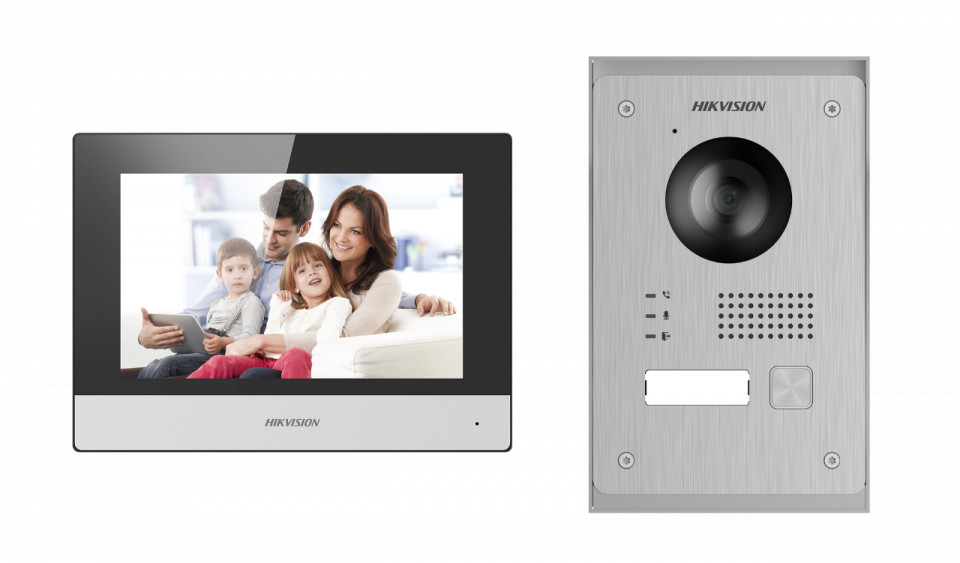

Kit Videointerfon IP HikVision pentru o familie cu Wi-Fi DS-KIS703-P

Descriere

Tehnologia CMOS

Utilizata si in senzorii de imagine al camerelor de supraveghere, tehnologia CMOS ajuta la captarea imaginilor la o calitate superioara. Printre caracteristicile importante ale dispozitivelor CMOS sunt imunitatea ridicata la zgomot si consum redus de energie.

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde

Microfonul incorporat ofera utilizatorului accesul la supravegherea audio a locatie si nu mai este necesara adaugarea unui dispozitiv aditional pentru captarea semnalului audio.

Wide Temperature

Domeniul larg de functionare a camerei, ii permit acesteia sa functioneze intr-un mediu cu temperaturi cuprinse intre -40°C si +60°C si cu umiditate de pana la 90%.

• Door Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Operation ModeSingle-button
• Flash32 MB
• RAM256 M

• Door Station/Video Parameters
• Camera2MP HD camera
• Resolution

  Main stream: 1920 × 1080p, 720p

  Sub stream: 704 × 576

• Night VisionLow illumination IR supplement mode:3 m
• WDRTrue WDR
• Field Of ViewHorizontal: 144° Vertical: 95°
• Video Compression StandardH.264
• Stream

  Main stream: 1080p@30fps, 720p@30fps

  Sub stream: 4CIF

• Motion DetectionSupport
• BLCSupport
• DNRSupport
• Anti-Flicker Frequency50 Hz, 60 Hz

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• Audio Compression StandardG.711 U, G.711 A
• Audio Compression Rate64 Kbps
• Audio IntercomTwo-way audio communication

• Door Station/Network Parameters
• Network ProtocolTCP/IP, RSTP
• Wired Network10/100 Mbps Ethernet

• Door Station/Device Interfaces
• RS-4850
• Alarm Input5
• Output12 V/1 A output
• Debugging Port1
• Two-Wire Interface1
• Grounding1
• TAMPER Switch1

• Door Station/General
• Power Consumption＜ 10 W
• Working Temperature-40° C to +60° C(-40° F to 140° F)
• Working Humidity10% to 95%
• InstallationSurface mounting, flush mounting
• Protection LevelIP65
• Indicator3
• HeaterSupport
• Power SupplyFrom indoor station

• Indoor Station/System Parameters
• Operation SystemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor Station/Display Parameters
• Display Screen7-inch TFT touch screen
• Display Resolution1024 × 600
• Operation MethodCapacitive touch screen
• BrightnessAdjustable

• Indoor Station/Audio Parameters
• Audio InputBuilt-in microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation
• VolumeLocal adjustable
• Audio Compression StandardG.711 U, G.711 A

• Indoor Station/Network Parameters
• Wired NetworkWi-Fi 802.11 b/g/n
• Wireless Network10/100 Mbps self-adaptive

• Indoor Station/Device Interfaces
• RS-4851
• Alarm Input8
• Two-Wire (Output)1
• Two-Wire (Input)1
• Power Input24VDC
• Debugging Port1

• Indoor Station/General
• Power Supply24VDC
• Power Consumption≤ 8 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
