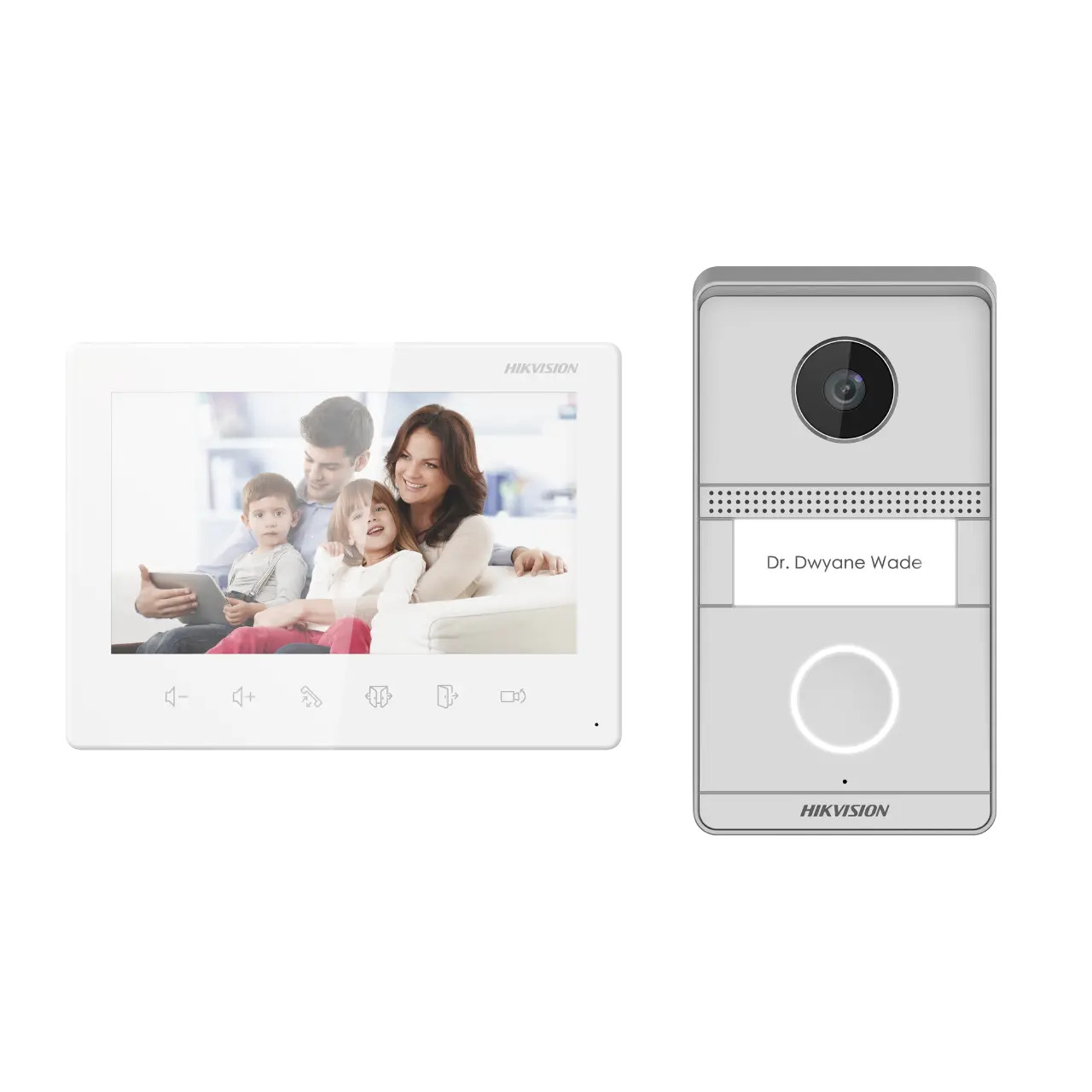

Kit videointerfon analog Hikvision conectare usoara pe 2 fire, plug & play DS-KIS101-P/F

Descriere

Modalitatea foarte usoara de configurare a echipamentului permite vizualizarea chiar si de la distanta a camerelor. Aplicatia Hik-Connect va pune la dispozitie, printr-o simpla scanare a codului QR posibilitatea de a monitoriza zona dorita, oricand si oriunde.

Wi-Fi

Wi-Fi sau WiFi este o tehnologie , care permite dispozitivelor electronice sa se conecteze la o retea fara a fi nevoie de fir.Reteaua folosind in general  2,4 gigahertzi UHF  si 5 gigahertzi SHF ISM benzi radio.

Power over Ethernet – PoE

Reprezinta modalitatea de alimentare a camerelor sau a altor echipamente IP, prin intermediul cablului de retea. Implementarea retelei se rezuma la un singur cablu, prin care este transmis semnalul de date cat si alimentarea echipamentului. Prin intermediul PoE, instalarea sistemelor de supraveghere devine mult mai simpla, mai sigura si mai putin costisitoare.

Atat microfonul cat si difuzorul prezinta capacitatea de a comunica si asculta  persoanele supravegheate, oferind astfel posibilitatea de a fi la curent cu tot ce se intampla in locatia respectiva in orice moment al zilei.Totodata puteti transmite un mesaj audio, direct de pe aplicatia mobila sau laptop.

• Door Station/System Parameters
• Operation SystemEmbedded analog operation system

• Door Station/Video Parameters
• Supplement LightWhite light supplement
• LensLow Illumination 2 MP HD IR Camera
• FOVHorizontal: 100°, Vertical: 69°
• WDRSupport
• Resolution2MP

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker (More than 80 dB within 20 cm)
• Volume AdjustmentAdjustable with screwdriver

• Door Station/Device Interfaces
• Alarm Input4
• Two-Wire1
• TAMPER1
• Exit Button2
• Lock Control2, lock duration can be adjusted via DIP switch (Max. 7 s)
• Door Contact Input2
• Power Supply For Lock1, Max. 12 V 1 A
• Debugging Port1

• Door Station/General
• Button1
• InstallationSurface mounting with protective shield
• Protective LevelIP65, IK7
• Working Temperature-30 °C to +60 °C (-22 °F to 140 °F)
• Working Humidity10% to 90%
• Dimensions150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93")
• Power Supply48 VDC, 0.5 A
• Application EnvironmentOutdoor
• Power Consumption≤ 12 W

• Indoor Station/System Parameters
• Operation SystemEmbedded analog operation system

• Indoor Station/Display Parameters
• Size7-inch TFT non-touch screen
• Operation Method6 touch buttons
• TipColorful TFT screen
• Resolution1024 × 600

• Indoor Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker (More than 80 dB within 20 cm)
• Audio Quality/
• VolumeAdjustable via touch-button
• Audio Compression Rate/

• Indoor Station/Device Interfaces
• Two-Wire3

• Indoor Station/General
• Power Supply48 VDC
• Power Consumption≤ 5 W
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimensions (W × H × D)187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00")
• InstallationSurface mounting
• Button6
